80GHz Radar Level Meter Sensor Solid Dust Swivelling Mounting Nitrogen Purge Connection

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD Application Solid Powder And Dust
Measuring Range 120m Frequency 80GHz
Accuracy ±2mm Process Temperature -40℃~+1200℃
Process Pressure (-0.1~0.3)MPa Process Connection Flange From DN80
High Light

Radar Level Meter Sensor Solid

,

Radar Level Meter Sensor Dust

Leave a Message
Product Description

80GHz 1200℃ Radar Level Meter Sensor Bulk Solid Dust Swivelling Mounting Nitrogen Purge Connection

Product Description:

The Radar Level Meter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions.With its advanced microwave level sensor technology, the 80GHz Radar Level Meter is ideal for level measurement in applications such as storage tanks, sewage treatment, and chemical processes, where reliable and accurate level measurement is essential. The device is also well suited for monitoring the levels of corrosive, abrasive, or viscous liquids, and it can be used for slurry or powdery solids as well. The robust design is suitable for use in harsh environments such as petrochemical plants, power plants, oil & gas refineries, and other industrial applications.



80GHz Radar Level Meter Sensor Solid Dust Swivelling Mounting Nitrogen Purge Connection 0



Features:

  • 1. The measurement accuracy of millimeter-wave radar can reach ± 1mm, and the measurement blind area is 50mm.
    2. Smaller antenna size, to meet the more working conditions for measurement.
    3.A variety of lens antennas, 3 emission Angle, more concentrated energy, stronger echo signal, under the same industrial and mining conditions, with higher reliability than other radar products.
    4. It is more penetrating and can be used normally in the case of adhesion and condensation.
    5.The dynamic signal range is larger and is more stable for measurements of low permittivity media.
    6.Multiple measurement modes, and the radar reaction time is less than 1S in the rapid measurement mode.
  •

Technical Parameters:

Model DTS-RD
Application Bulk Solid Powder And Dust
Measuring Range 120m
Frequency 80GHz
Accuracy ±2mm
Process Temperature -40℃~+1200℃
Process pressure (-0.1~0.3)MPa
Process Connection Flange from DN80
Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G


Applications:

This DTS-RD Radar Level Meter is applicable for high silos, segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Grain Storage, Bran, Fumed silica, Very light fly ash, Plastic powder, Dry wood chips,  Cement, Cement silo etc, all these could use DTS-RD-85-A to monitor the level.





Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

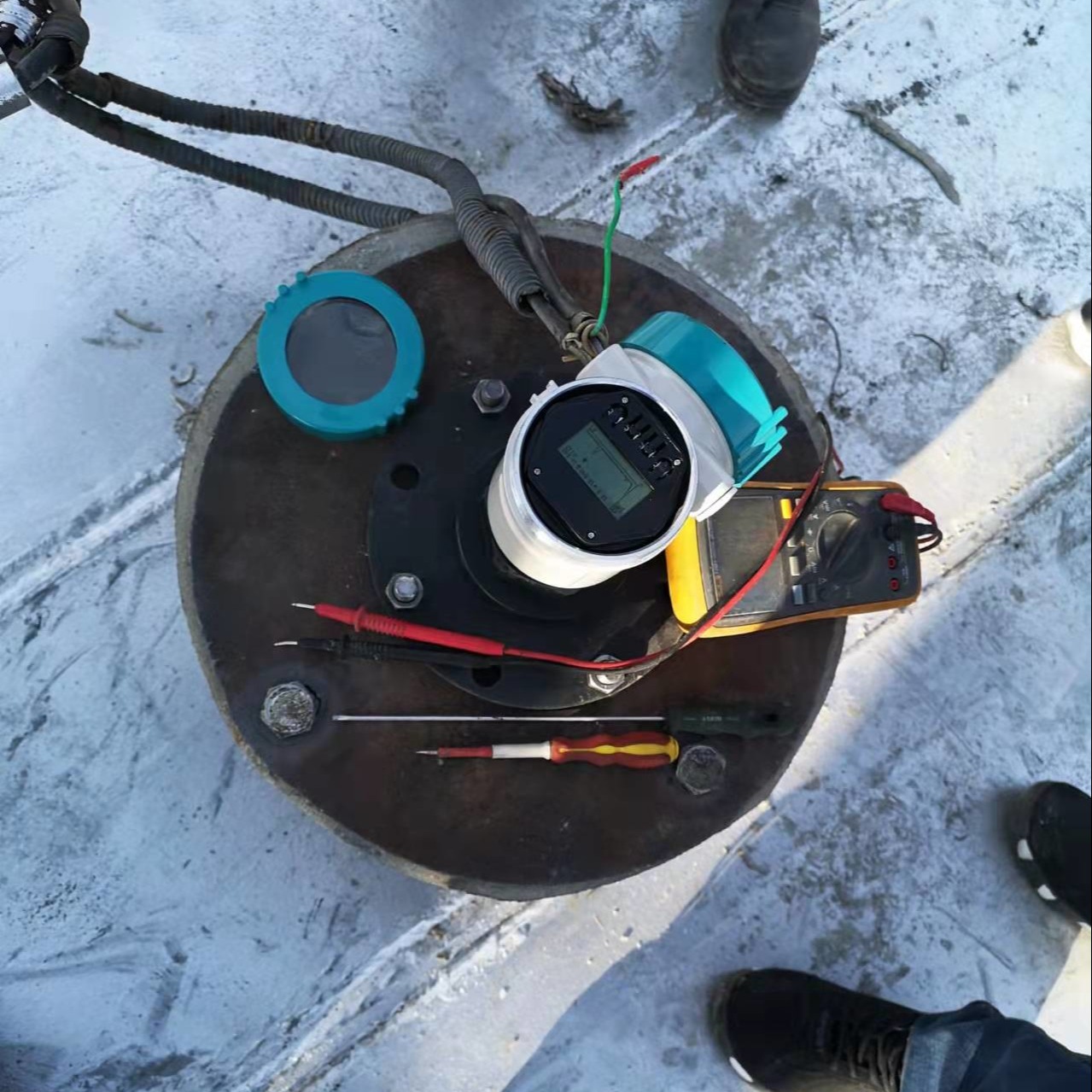

80GHz Radar Level Meter Sensor Solid Dust Swivelling Mounting Nitrogen Purge Connection 1
