DTS Radar Level Meter 80ghz Radar Level Transmitter For High Temperture Solid Liquid

Place of Origin China
Brand Name DTS
Certification Ex ia IIB T4 Ga
Model Number DTS-RD-88-C
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 10000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application High Temperture Solid High Temperture And Pressure Liquid Max 1200℃ Measuring Range 120m
Frequency Range 76~81GHz Antenna Stainless Steel+PTFE+Quartz Glass Horn Lens Antenna With Heat Dissipation Tube
Process Temperature -40~+1200℃ Process Pressure (-0.1~2.5)MPa
High Light

DTS Radar Level Meter

,

Radar Level Meter High Temperture

,

80ghz Radar Level Transmitter

Leave a Message
Product Description

80GHz Radar Level Meter For High Temperture Solid And Liquid Temperature 1200℃ (-0.1~2.5)MPa Sensor Gauge



DTS-RD-88C 80GHz non-contact radar meter is suitable for high tempture solid with max 1200℃, it can realize continuous level measurement of solids with high precision and high stability. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.

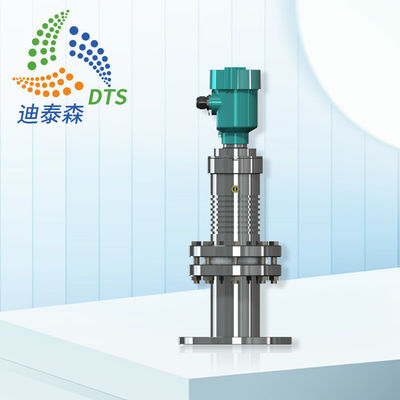

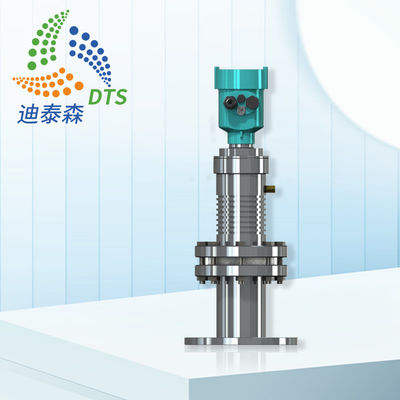

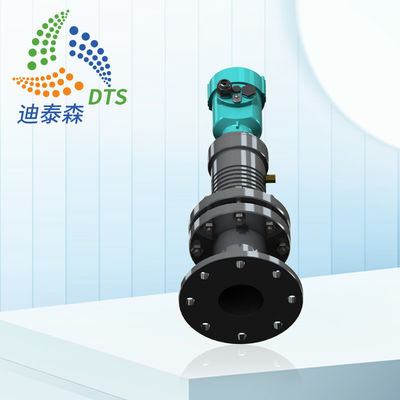

DTS Radar Level Meter 80ghz Radar Level Transmitter For High Temperture Solid Liquid 0



Features:

l 80GHz FMCW technology

l False echo suppression option

l Narrow beam, small blind zone and accurate measurement

l Unaffected by temperature fluctuations

l Resistant to dirt and buildup

l Measurement under vacuum and high pressure

l Small size, easy to use, less maintenance





Application

High temperture solid

High temperture and pressure liquid

Max 1200℃

Measuring range 120m
Frequency range 76~81GHz
Bandwidth Instant 4Ghz
Deviation ±5mm
Signal output

4…20mA/HART



Digital output RS48/MODBUS
Connection

Bluetooth/NB-iot/4G



Operating voltage

Two wires DC24±6V

Four wires AC220V



Antenna

Stainless Steel+PTFE+Quartz glass

Horn lens antenna with heat dissipation tube

Process fitting

Flange from DN100



Process temperature -40~+1200℃
Process pressure (-0.1~2.5)MPa
