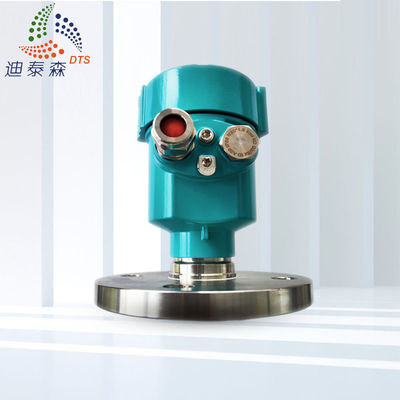

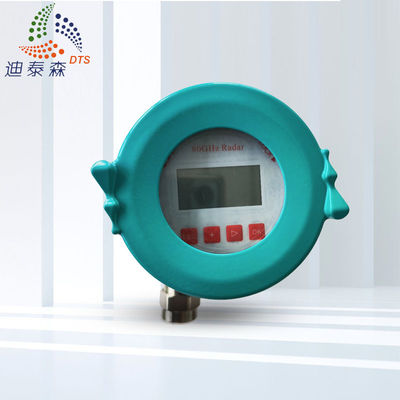

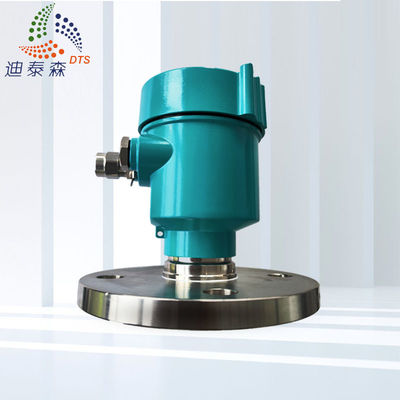

30m Radar Level Instrument 80GHz For Corrosive And Pressure Liquid
| Place of Origin | China |
|---|---|
| Brand Name | DTS |
| Certification | CNEX |
| Model Number | DTS-RD-83-A |
| Minimum Order Quantity | 1 |
| Packaging Details | Carton |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Data Storage | Yes | Measuring Frequency | 80GHz |
|---|---|---|---|
| Explosion-proof Grade | Ex Ia IIB T4 Ga | Material | Stainless Steel+PTFE |
| Measuring Principle | Radar | Protection Grade | IP67 |
| Resolution | 1mm | Measuring Range | 0.15~30m |
| Working Temperature | -40~+120℃ | Process Pressure | （-0.1~2.5）MPa |
| Application | Corrosive And Pressure Liquid | Output | 4…20mA/HART; RS485/MODBUS |
| High Light | Radar Level Instrument 80GHz,30m Radar Level Instrument,radar level transmitter Corrosive Liquid |
||
Product Description
80GHz Radar Level Meter For Corrosive And Pressure Liquid 30m(-0.1~2.5)MPa Radar Level Sensor Gauge Transmitter
Product Description:
Radar level measuring instrument is an advanced device for distance measuring. With its optimization on the antenna, it can measure up to 30 meters accurately. Additionally, it comes with powerful microprocessors, allowing the device to analyze signals faster and enables it to be used in complex conditions, such as level of corrossive and pressure liquid. The device is valuable for multiple industries.
Features:
The antenna size of the high frequency level meter is small and easy to install, which enhances its non-contact radar and eliminates any wear and pollution.
Almost all forms of corrosion and foam barely effect this radar, and while water vapor, temperature, and pressure changes in the atmosphere may affect it, the changes are minimal.
In dusty environments, this level meter remains unaffected and continues to use and perform its tasks.
Additionally, the beam angle is significantly small, which makes the radar more capable of concentrating the energy it uses as well as enhancing the echo ability to better avoid interference objects.
Applications:
The 80G Radar Level Meter is a high-performance level transmitter specifically designed for the measurement of liquids and solids in industrial processes. With its advanced microwave level sensor technology, the 80G Radar Level Meter is ideal for level measurement in applications such as storage tanks, sewage treatment, and chemical processes, where reliable and accurate level measurement is essential. The device is also well suited for monitoring the levels of corrosive, abrasive, or viscous liquids, and it can be used for slurry or powdery solids as well. The robust design is suitable for use in harsh environments such as petrochemical plants, power plants, oil & gas refineries, and other industrial applications.
The 80G Radar Level Meter is an ideal choice for reliable and accurate level measurement. It is equipped with a high-sensitivity microwave level sensor, which enables it to measure the level of liquids or solids in a wide range of materials and industries. The device is capable of providing continuous monitoring and can detect level changes in real-time. It is also resistant to vibration, temperature fluctuations, and other environmental factors. The device is simple to install and can be easily integrated into existing control systems.
Technical Parameters:
| Parameter | Value |
|---|---|
| Process connection | Flange from DN50 |
| Display | LCD |
| Measuring Frequency | 80GHz |
| Power Supply | Two wires DC24±6V; Four wires AC220V |
| Connection | Bluetooth/NB-iot/4G |
| Explosion-proof Grade | Ex Ia IIB T4 Ga |
| Working Temperature | -40~120℃ |
| Measuring Principle | Radar |
| Data Storage | Yes |
| Protection Grade | IP68 |
| Process pressure | (-0.1~2.5)MPa |
Packing and Shipping:
-
The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
FAQ:
- Q: What is the 80G Radar Level Meter?
A: The 80G Radar Level Meter is a device that uses radar-based measurement technology to measure the level of liquid in a tank or reservoir. - Q: What type of technology does the 80G Radar Level Meter use?
A: The 80G Radar Level Meter uses radar measurement technology to accurately measure the level of liquid in a tank or reservoir. - Q: What are the advantages of using the 80G Radar Level Meter?
A: The 80G Radar Level Meter is highly accurate and reliable, and can measure levels in tanks and reservoirs with high accuracy and precision. - Q: How easy is the 80G Radar Level Meter to install?
A: The 80G Radar Level Meter is easy to install and requires minimal setup and configuration. - Q: What is the range of the 80G Radar Level Meter?
A: The 80G Radar Level Meter has a range of up to120 meters.
