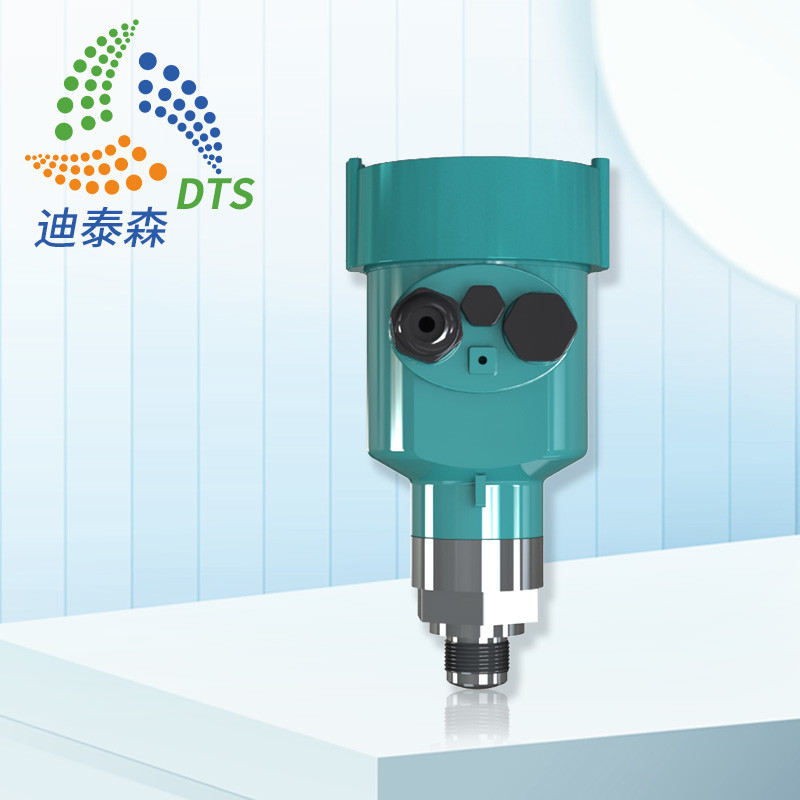

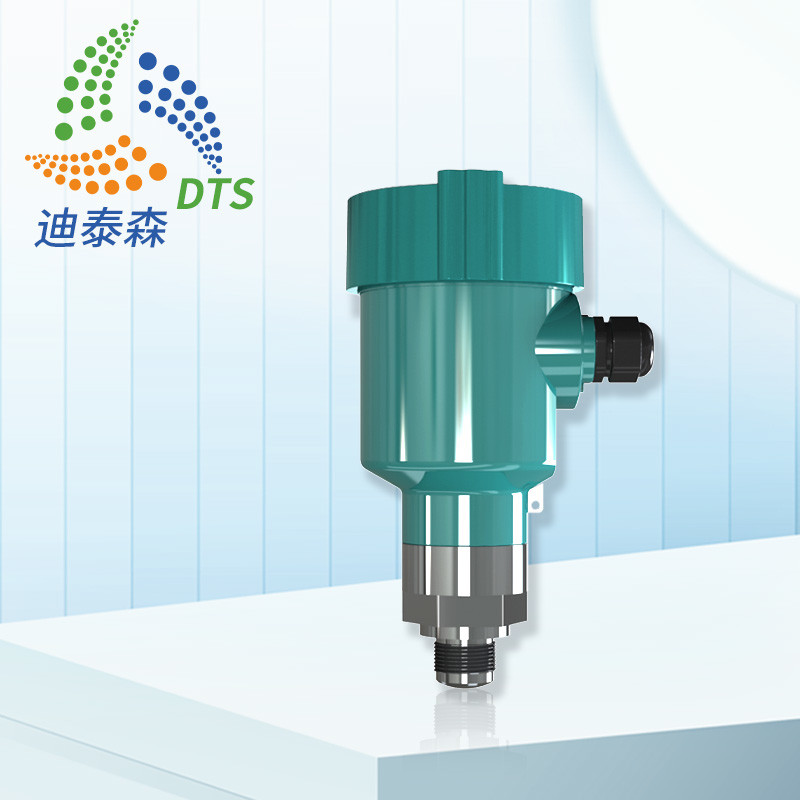

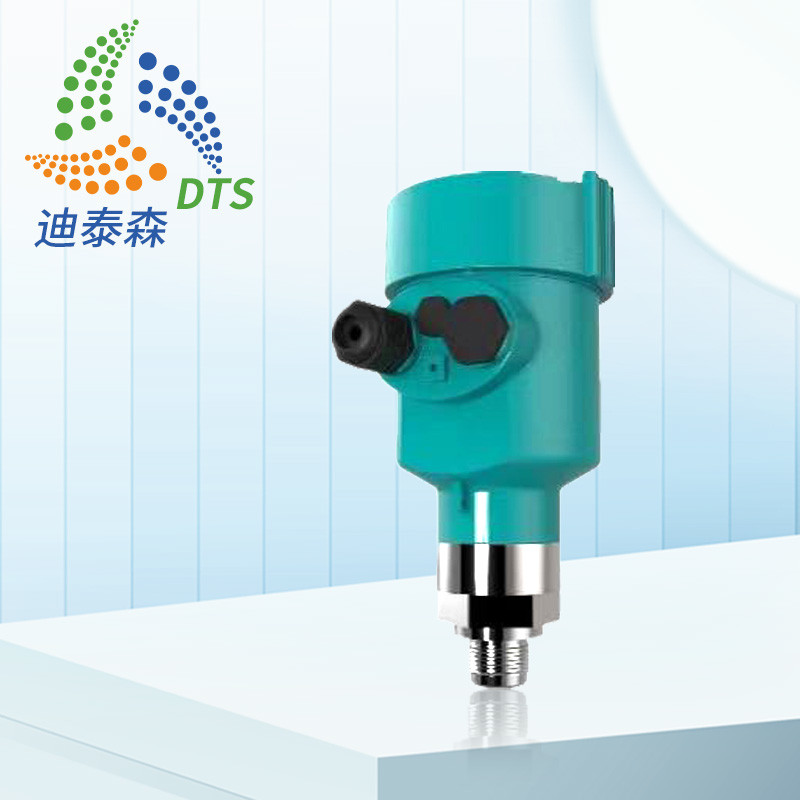

80GHz Radar Level Meter Gauge Transmitter Stainless Steel PTFE Horn Lens Antenna

  • 80GHz Radar Level Meter Gauge Transmitter Stainless Steel PTFE Horn Lens Antenna
  • 80GHz Radar Level Meter Gauge Transmitter Stainless Steel PTFE Horn Lens Antenna
  • 80GHz Radar Level Meter Gauge Transmitter Stainless Steel PTFE Horn Lens Antenna
Place of Origin China
Brand Name DTS
Model Number DTS-RD-81-A
Minimum Order Quantity 1
Packaging Details carton box
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 10000 units

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Applicationnge Liquid In Small Container Measuring Range 10m
Frequency Range 76~81GHz Antenna Stainless Steel+PTFE Horn Lens Antenna
Process Fitting Thread G3/4 Flange From DN30
High Light

Radar Level Meter Gauge Transmitter

,

Radar Level Meter PTFE Antenna

,

80GHz radar level gauge
Leave a Message
Product Description

80GHz Radar Level Sensor For Liquid In Small Container 10m Radar Level Meter Gauge Transmitter80GHz Radar Level Meter Gauge Transmitter Stainless Steel PTFE Horn Lens Antenna 0

80GHz non-contact radar meter

DTS-RD-8X series 80GHz non-contact radar can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, this series is an ideal solution for level control in the production process.



Features:

l 80GHz FMCW technology

l False echo suppression option

l Narrow beam, small blind zone and accurate measurement

l Unaffected by temperature fluctuations

l Resistant to dirt and buildup

l Measurement under vacuum and high pressure

l Small size, easy to use, less maintenance



Advantage:



1.The higher the frequency, the smaller the antenna, very portable and easy to install



80GHz Radar Level Meter Gauge Transmitter Stainless Steel PTFE Horn Lens Antenna 1



2.Narrow signal ensures only minimal signal interference from hitting the side of the silo, preventing multi-path problems which leading to inaccurate and false. Narrow signal ensures accurate result.



80GHz Radar Level Meter Gauge Transmitter Stainless Steel PTFE Horn Lens Antenna 2



Application Liquid in small container
Measuring range 10m
Frequency range 76~81GHz
Bandwidth Instant 4Ghz
Deviation ±5mm
Signal output 4…20mA/HART
Digital output RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Operating voltage

Two wires DC24±6V

Four wires AC220V
Antenna

Stainless Steel+PTFE

horn lens antenna
Process fitting

Thread G3/4

Flange from DN30
Process temperature -40~+120℃
Process pressure (-0.1~0.1)MPa
