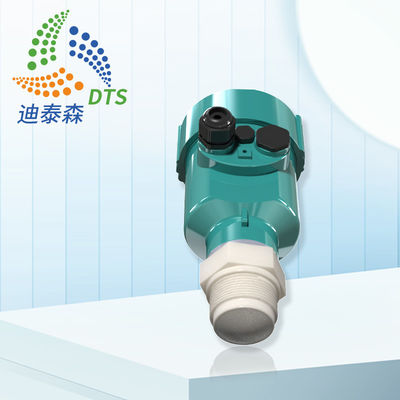

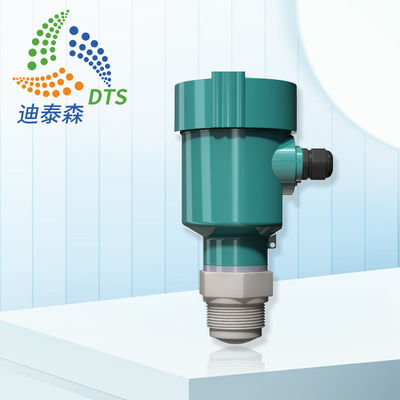

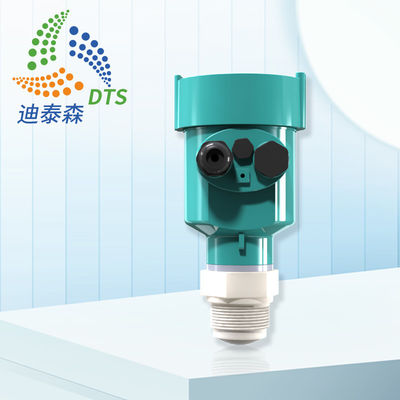

Corrosive Liquid IP67 Radar Level Meter Transmitter With 30m Detecting Distance

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-82-C
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms Western Union, MoneyGram, L/C, T/T
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Range 30m Explosion-proof Grade Ex Ia IIB T4 Ga
Working Temperature 40~120℃ Measuring Principle Radar
Process Connection Flange From DN50; Thread From G1½ Data Storage Yes
Protection Grade IP67 Resolution 1mm
High Light

Corrosive Liquid Radar Level Meter

,

Radar Level Meter 30m

,

IP67 radar type level transmitter

Leave a Message
Product Description

Radar Level Meter For Corrosive Liquid 80Ghz With 30m Detecting Distance

Product Description:

DTS-RD-82-C Radar level measuring instrument is capable of accurately measuring the maximum distance up to 30 meters.

The maximum measurement accuracy of the radar level measuring instrument is extremely high, yet the device is simple to use which makes it beneficial to many industrial manufacturers. High resolution achievable with the radar measurements helps reduce errors in measurement and also reduce manual inspection time.

With its advanced technology and user-friendly functions, the radar level measuring instrument has become an ideal tool for industrial applications.



Features:

The size of the antenna is small, which makes it easy to install. This non-contact radar will not cause any wear or pollution. It is almost immune to corrosion and foam and it is almost unaffected by the changes in the water vapour, temperature and pressure in the atmosphere. The beam angle is also small, concentrating the energy and thus enhancing its echo ability. As a result, it is more likely to avoid other interference objects.



Applications:

The 80G Radar Level Meter is an advanced microwave level sensor that has a measuring range of 0.15~30m and is equipped with a microwave level sensor. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos. This level meter is an ideal choice for industrial operations that require accurate and reliable measuring of liquid and solid levels.



Technical Parameters:

Parameter Value
Protection Grade IP67
Measuring Principle Radar
Product Name 80GHz Radar Level Meter
Measuring Range 0.15~30m
Data Storage Yes
Application Corrosive liquid
Resolution 1mm
Measuring Frequency 80GHz
Display LCD
Accuracy ±2mm
Signal output 4…20mA/HART
Digital output RS485/MODBUS
Process temperature -40~+120℃


Packing and Shipping:

Packaging and Shipping of 80G Radar Level Meter

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

  • Length: 40 cm
  • Width: 30 cm
  • Height: 30 cm

The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.



FAQ:

Q1: How do I install and operate the 80G Radar Level Meter?
A1: The installation and operation of the 80G Radar Level Meter is quite simple. Please refer to the user manual for detailed instructions.

Q2: Is the 80G Radar Level Meter accurate?
A2: Yes, the 80G Radar Level Meter is equipped with advanced technology and provides reliable and accurate measurements.

Q3: How reliable is the 80G Radar Level Meter?
A3: The 80G Radar Level Meter is designed with superior quality materials and components, and is highly reliable.

Q4: What is the maximum operating temperature of the 80G Radar Level Meter?
A4: The 80G Radar Level Meter has a maximum operating temperature of 120°C (280°F).

Q5: Does the 80G Radar Level Meter require regular maintenance?
A5: Yes, the 80G Radar Level Meter should be regularly inspected and maintained to ensure optimal performance. Please refer to the user manual for detailed instructions.
