High Frequency Radar Level Meter 120m Range 80GHZ 2mm Accuracy
| Place of Origin | China |
|---|---|
| Brand Name | DTS |
| Certification | CNEX |
| Model Number | DTS-RD |
| Minimum Order Quantity | 1 |
| Packaging Details | Carton |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | Industrial | Customized Support | OEM, ODM |
|---|---|---|---|
| Model | DTS-RD | Application | Corrosive And Pressured Liquid Solid Powder Dust |
| Measuring Range | 120m | Frequency | 80GHz |
| Accuracy | ±2mm | Resolution | 1mm |
| Process Pressure | （-0.1~2.5）MPa | Process Temperature | -40℃~+1200℃ |
| High Light | High Frequency Radar Level Meter,Radar Level Meter 80GHZ,radar liquid level sensor 2mm Accuracy |
||
Product Description
Manufacturer of High Frequency Radar Level Meter 120m Range 80GHZ Radar Powder Level Meter Sensor
Product Description:
Radar measurement: Measuring Principle
Radar level transmitter works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.

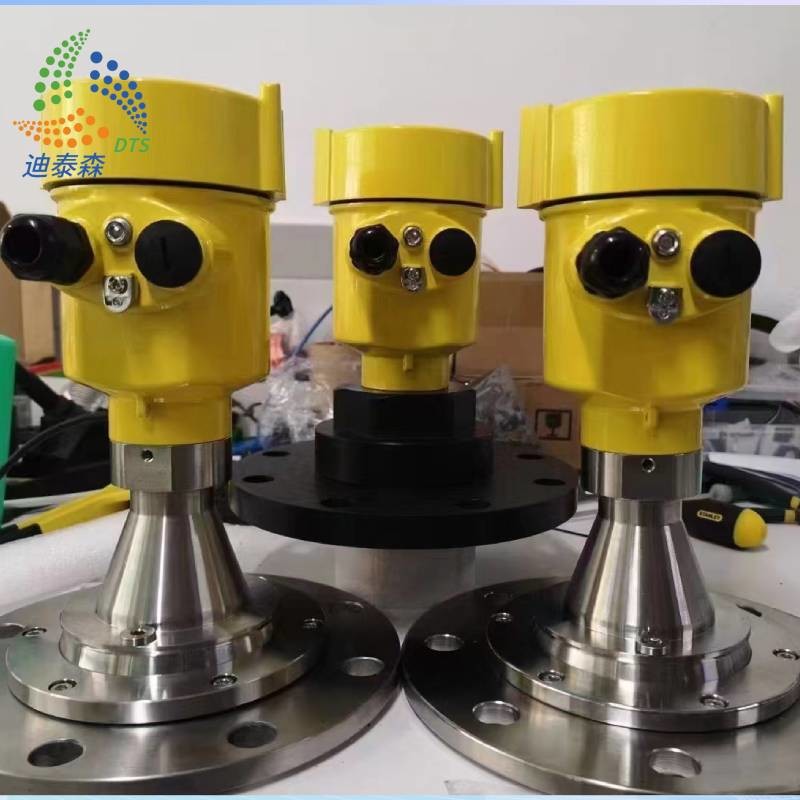

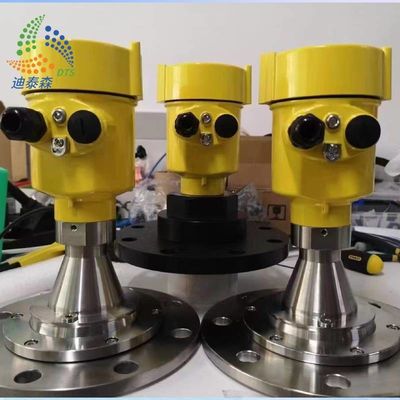

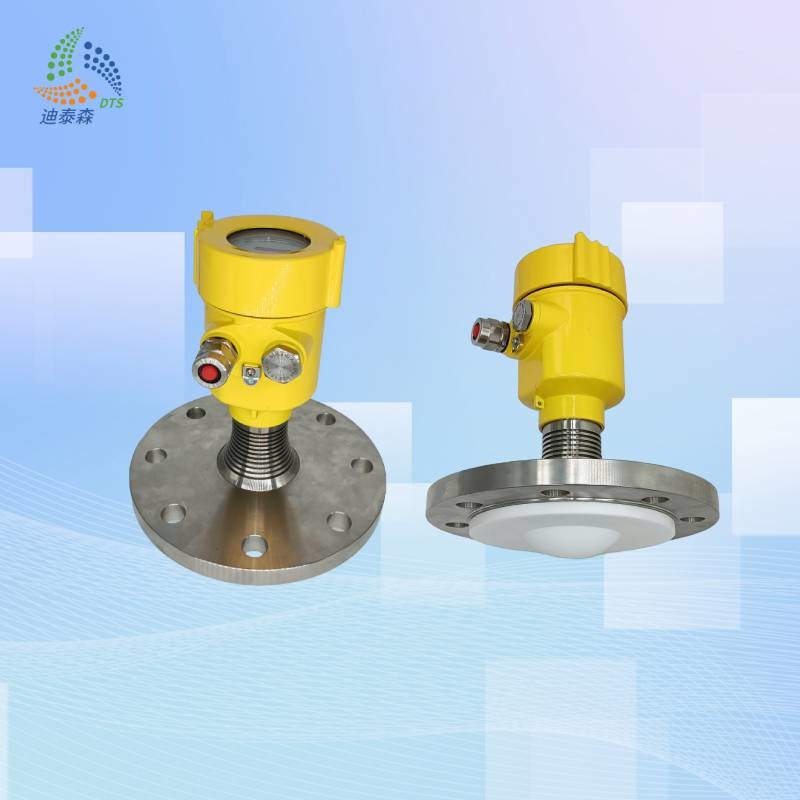

The DTS radar level meter is operating at 80GHz, which has a maximum measuring range of 120m and a minimum blind zone of 2mm. It supports 4-wire and 2-wire applications. Higher operating frequency and shorter wavelength make it ideal for solid applications, including those with extreme dust and high temperature to + 1200℃. The radar consists of an electronic circuit coupled to a lens antenna and flange for quick and easy positioning
Features:
- 80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance
Technical Parameters:
| Model | DTS-RD |
|---|---|
| Application | Corrosive and Pressured Liquid |
| Measuring Range | 30m |
| Frequency | 80GHz |
| Accuracy | ±2mm |
| Resolution | 1mm |
| Process Temperature | -40℃~+1200℃ |
| Process pressure | (-0.1~2.5)MPa |
| Process Connection | Flange from DN50 |
| Protection Class | IP67 |
| Signal output | 4…20mA/HART; RS485/MODBUS |
| Connection | Bluetooth/NB-iot/4G |
| Material | Stainless Steel+PTFE |
| Power Supply | Two Wires DC24±6V; Four Wires AC220V |
Applications:
The 80G Radar Level Transmitter is an advanced microwave level sensor that has a measuring range of 0.15~30m. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos.
Packing and Shipping:
The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.
The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
