80g 120g Radar Level Transmitter Radar Water Level Sensor 120m

  • 80g 120g Radar Level Transmitter Radar Water Level Sensor 120m
Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD Application Corrosive And Pressured Liquid Solid Powder Dust
Measuring Range 120m Frequency 80GHz
Accuracy ±2mm Resolution 1mm
Process Pressure （-0.1~2.5）MPa Process Temperature -40℃~+1200℃
High Light

120g Radar Level Transmitter

,

80g Radar Level Transmitter

,

Radar Water Level Sensor 120m
Leave a Message
Product Description

80g 120g Radar Level Meter Gauge Radar Water Level Sensor Radar Level Transmitter

Product Description:

Radar measurement: Measuring Principle
Radar level transmitter works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.



The DTS radar level meter is operating at 76-81 GHz, which has a maximum measuring range of 120m and a minimum blind zone of 2mm. It supports 4-wire and 2-wire applications. Higher operating frequency and shorter wavelength make it ideal for solid applications, including those with extreme dust and high temperature to + 1200℃. The radar consists of an electronic circuit coupled to a lens antenna and flange for quick and easy positioning

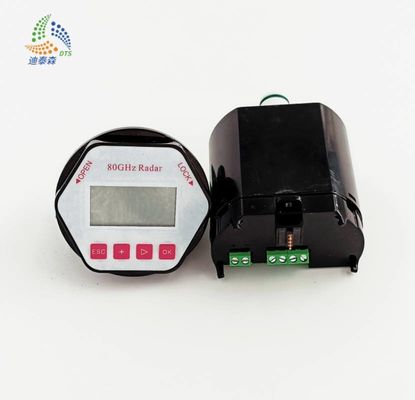

80g 120g Radar Level Transmitter Radar Water Level Sensor 120m 0



Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
  •
  •
  •

Technical Parameters:

Model DTS-RD-83
Application Corrosive and Pressured Liquid
Measuring Range 30m
Frequency 80GHz
Accuracy ±2mm
Resolution 1mm
Process Temperature -40℃~+120℃
Process pressure (-0.1~2.5)MPa
Process Connection Flange from DN50

Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Material Stainless Steel+PTFE
Power Supply Two Wires DC24±6V; Four Wires AC220V


Applications:

The 80G Radar Level Transmitter is an advanced microwave level sensor that has a measuring range of 0.15~30m. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos.



Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.



80g 120g Radar Level Transmitter Radar Water Level Sensor 120m 1
