Pressured Liquid Radar Level Meter Non Contact Radar Liquid Level Sensor

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-88
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-88 Application Max 200℃ Solid/Liquid Corrosive/Pressure Liquid With Steam And Foam
Measuring Range 120m Frequency 80GHz
Accuracy ±2mm Resolution 1mm
Process Pressure (-0.1~2.5)MPa Process Temperature -40℃~+200℃
High Light

Pressured Liquid Radar Level Meter

,

Radar Level Meter Non Contact

,

Non Contact Radar Liquid Level Sensor

Leave a Message
Product Description

80GHz 120m 200℃ Pressured Liquid With Steam&Foam Radar Level Meter Sensor Transmitter 1mm Resolution

Product Description:

Radar level measurement
Continuous level measurement in liquids and solids with free space radar sensors
Radar level measurement with top-down installation of a radar sensor offers perfect application fit in all industries. Non-contact radar with simple commissioning, trouble-free operation saves time and money. For usage in a wide range of applications - be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.



The Non Contact Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.

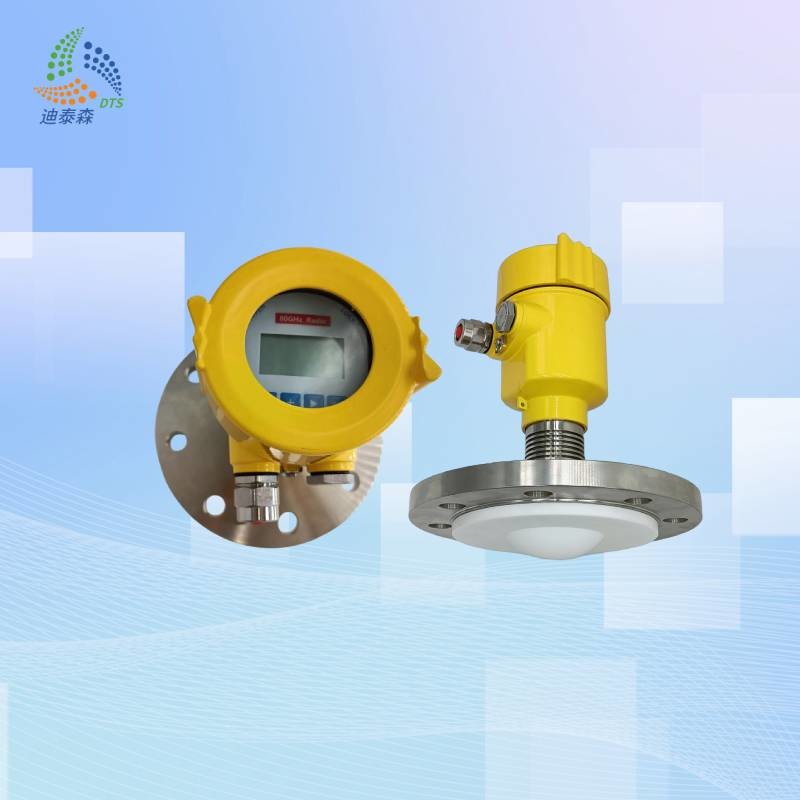

Pressured Liquid Radar Level Meter Non Contact Radar Liquid Level Sensor 0





Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by medium properties like density and conductivity, in bulk solids also unaffected by filling noise and dust
    Freely adjustable measuring range
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
    Swivelling mounting,Easily adjustable (up to ±10°)
    Non-contact, maintenance-free measurement
    For high temperatures up to +1200°C
  •
  •
  •

Technical Parameters:

Model DTS-RD-88
Application Max 200℃ Solid/Liquid
Corrosive/Pressure liquid with steam and foam
Measuring Range 120m
Frequency 80GHz
Accuracy ±2mm
Resolution 1mm
Process Temperature -40℃~+200℃
Process pressure (-0.1~2.5)MPa
Process Connection Flange from DN80

Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Material Stainless Steel+PTFE
Power Supply Two Wires DC24±6V; Four Wires AC220V


Applications:

The 80GHz Radar Level Transmitter is an advanced microwave level sensor that has a measuring range of 0.15~120m. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos.

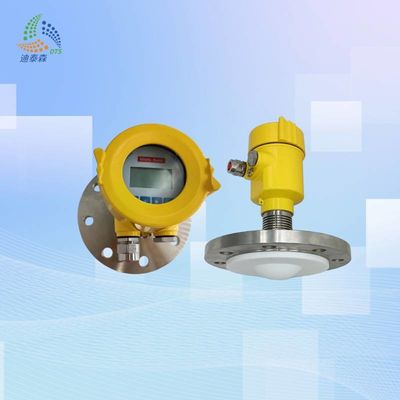

Pressured Liquid Radar Level Meter Non Contact Radar Liquid Level Sensor 1

Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

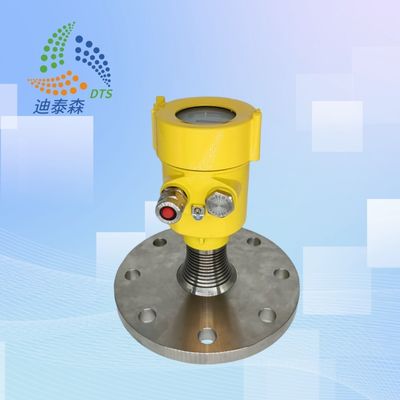

Pressured Liquid Radar Level Meter Non Contact Radar Liquid Level Sensor 2
