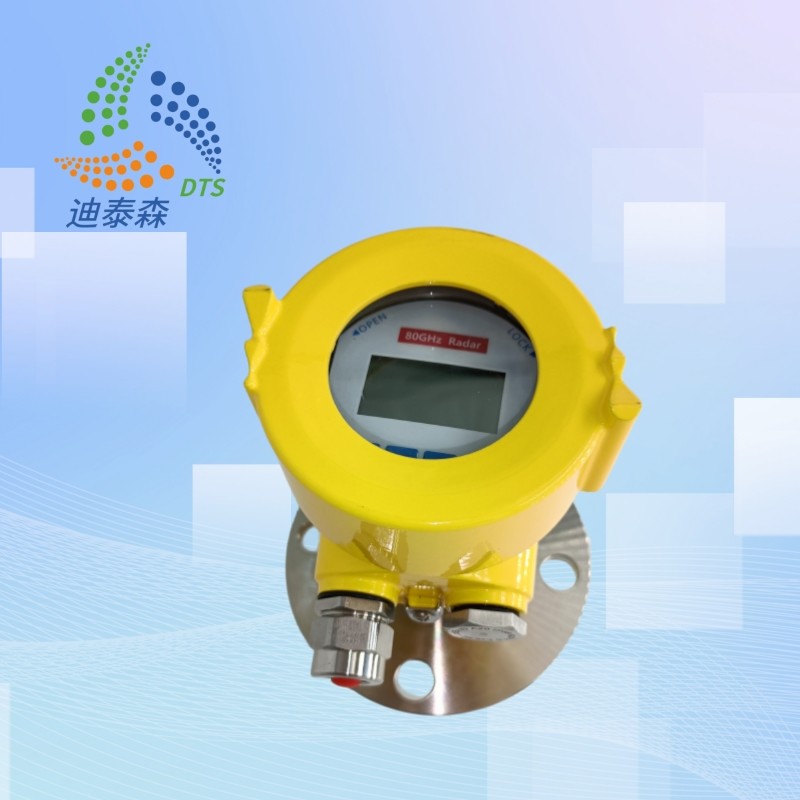

Industrial Non Contact Radar Level Transmitter High Sensitivity For Liquid Solid

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-82
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-82 Application Liquid Solid
Measuring Range 30m Frequency 80GHz
Accuracy ±2mm Process Temperature -40℃~+120℃
Process Pressure (-0.1~0.1)MPa Process Connection Thread G1½; Flange From DN50
High Light

Non Contact Radar Level Transmitter Liquid

,

Non Contact Radar Level Transmitter Solid

,

Industrial non contact radar sensor

Leave a Message
Product Description

Non Contact Radar Level Transmitter High Sensitivity 80GHz Radar Sensor Meter Gauge for Liquid Solid 30m

Product Description:

The Non Contact Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.



Convenient and easy check of the current fill level and the device status without having to climb onto the big-mix and open it for a visual inspection.



Narrow beam angle and compact design of Radar Level meter enable convenient installation and extreme flexibility for mounting in the big-mix solids feeder and liquid container.

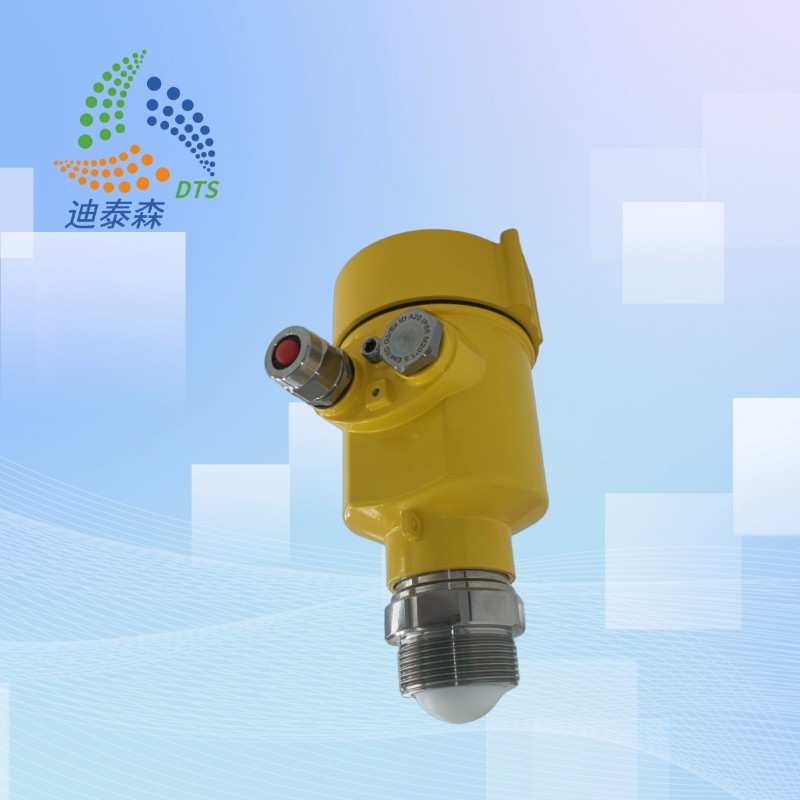

Industrial Non Contact Radar Level Transmitter High Sensitivity For Liquid Solid 0

Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
  •
  •
  •

Technical Parameters:

Model DTS-RD-82
Application Liquid /Solid
Measuring Range 30m
Frequency 80GHz
Accuracy ±2mm
Process Temperature -40℃~+120℃
Process pressure (-0.1~0.1)MPa
Process Connection Thread G1½; Flange from DN50

Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Material Stainless Steel+PTFE
Power Supply Two Wires DC24±6V; Four Wires AC220V


Applications:

This DTS-RD-82 Non Contact Radar Level Transmitter is applicable for segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Cosmetics tanks, Alcohol tanks, Water Tanks, Waste water, River, Lake, Reservior  etc, all these could use DTS-RD-82 to monitor the level.



Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

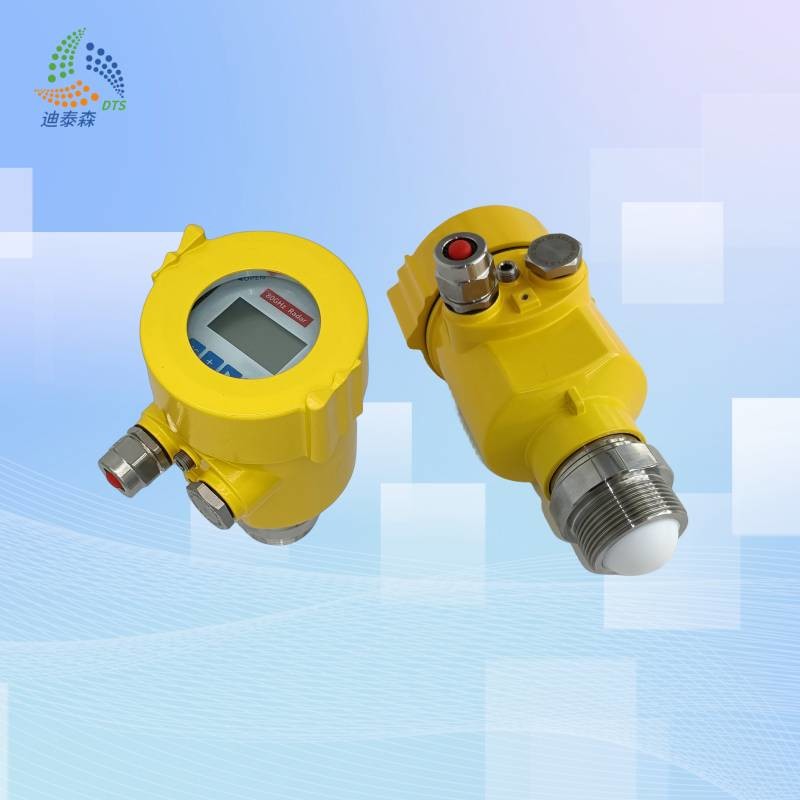

Industrial Non Contact Radar Level Transmitter High Sensitivity For Liquid Solid 1
