High Precision Non Contact Radar Level Transmitter Sensor Continuous Measurement For Liquid Solid

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-88-A
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-88-A Measuring Range 120m
Application Solid/Liquid Corrosive/Pressure Liquid With Steam And Foam Max 200℃ Process Temperature -40℃~+200℃
Accuracy ±1mm Process Pressure (-0.1~2.5)MPa
Signal Output 4…20mA/HART Digital Output RS485/MODBUS
Leave a Message
Product Description

120m Non-Contact Radar Level  Transmitter Sensor Measurement Max 200℃ Corrosive/Pressure Liquid With Steam Foam

Product Description:

Non Contact Radar Level Transmitter is a reliable and accurate level measurement device. It can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, this series is an ideal solution for level control in the production process.

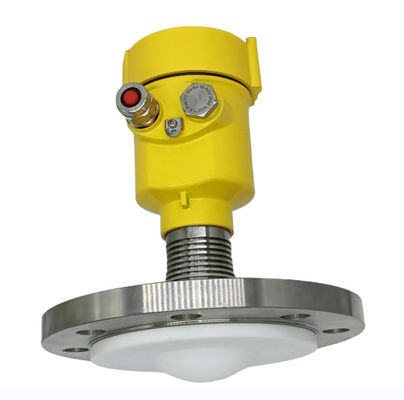

High Precision Non Contact Radar Level Transmitter Sensor Continuous  Measurement For Liquid Solid 0



Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
    Highly chemically resistant materials ensure long service life of the sensors


Technical Parameters:


Model DTS-RD-88-A
Application Solid/Liquid Corrosive/Pressure liquid with steam and foam
Measuring Range 120m
Accuracy ±2mm
Frequency 80GHz
Process Temperature -40℃~+200℃
Process Pressure (-0.1~2.5)MPa
Process Connection Flange from DN80
Output Signal 4…20mA/HART
Connection Bluetooth/NB-iot/4G
Protection Class IP67
Power Supply Two wires DC24±6V; Four wires AC220V
Material Stainless Steel+PTFE


Applications:

The DTS-RD-88-A Non-Contact Radar Level Transmitter is a reliable and accurate instrument produced by DTS, a leading producer of industrial instrumentation. This non-contact radar level sensor is designed for use in a wide variety of applications, from industrial process control to oil and gas production and chemical plant etc.

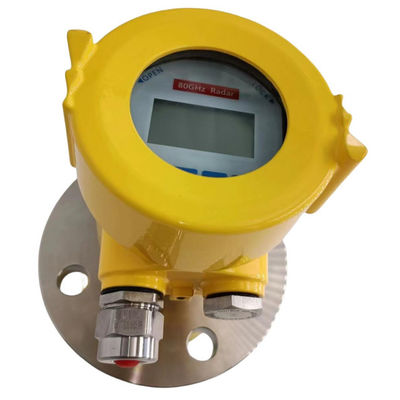

High Precision Non Contact Radar Level Transmitter Sensor Continuous  Measurement For Liquid Solid 1

Packing and Shipping:

  • The Non Contact Radar Level Transmitter is packaged in a sturdy cardboard box with the following dimensions:
    Length: 40 cm
    Width: 30 cm
    Height: 30 cm
    The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

    The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

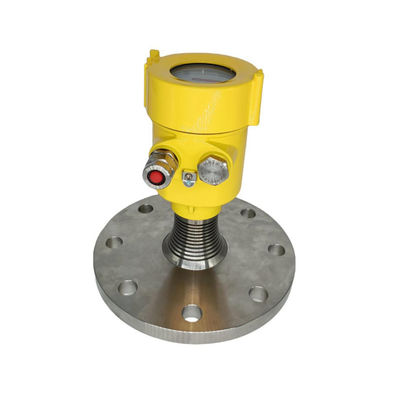

  • High Precision Non Contact Radar Level Transmitter Sensor Continuous  Measurement For Liquid Solid 2
