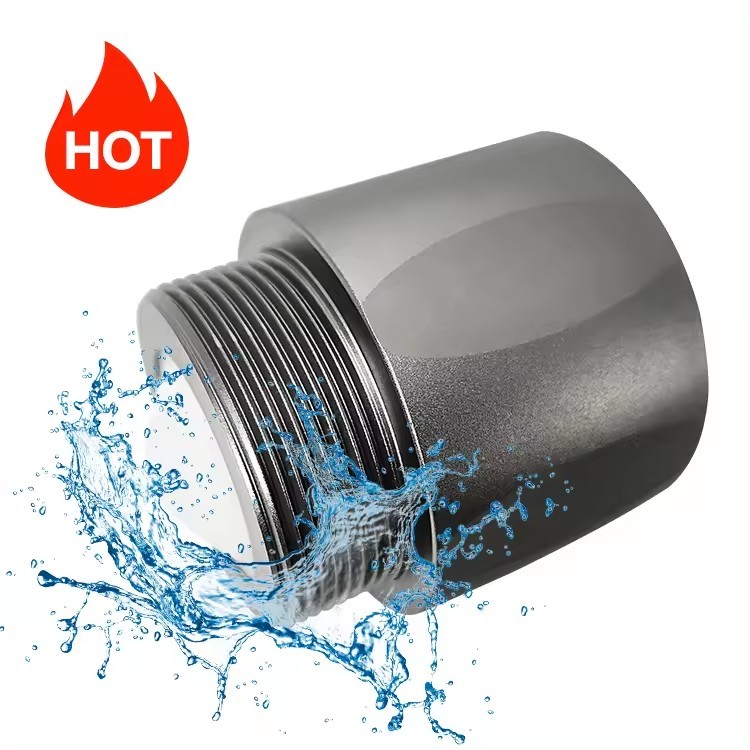

Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-80
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-80 Measuring Range 85m
Application Rivers, Embankments, Lakes Etc Accuracy ±1mm
Process Temperature -40~85℃ Process Pressure (-0.1~0.3) MPa
Signal Output (4~20) MA(Supports Bluetooth)/RS485 Beam Angle
Power Supply (9~36) VDC Installation Method Bracket, Flange, Thread
Leave a Message
Product Description

Non Contact Radar Water Level Transmitter Sensor Meter 76-81GHz Iiquid FMCW

Product Description:

Non Contact Radar Level Transmitter is a reliable and accurate level measurement device. It can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, this series is an ideal solution for level control in the production process.

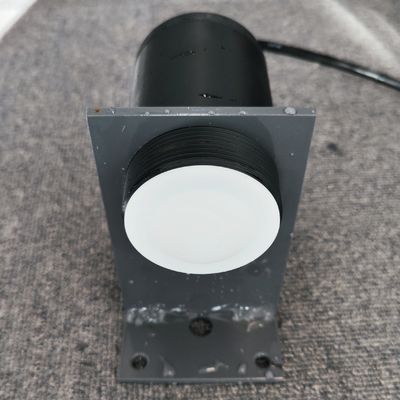

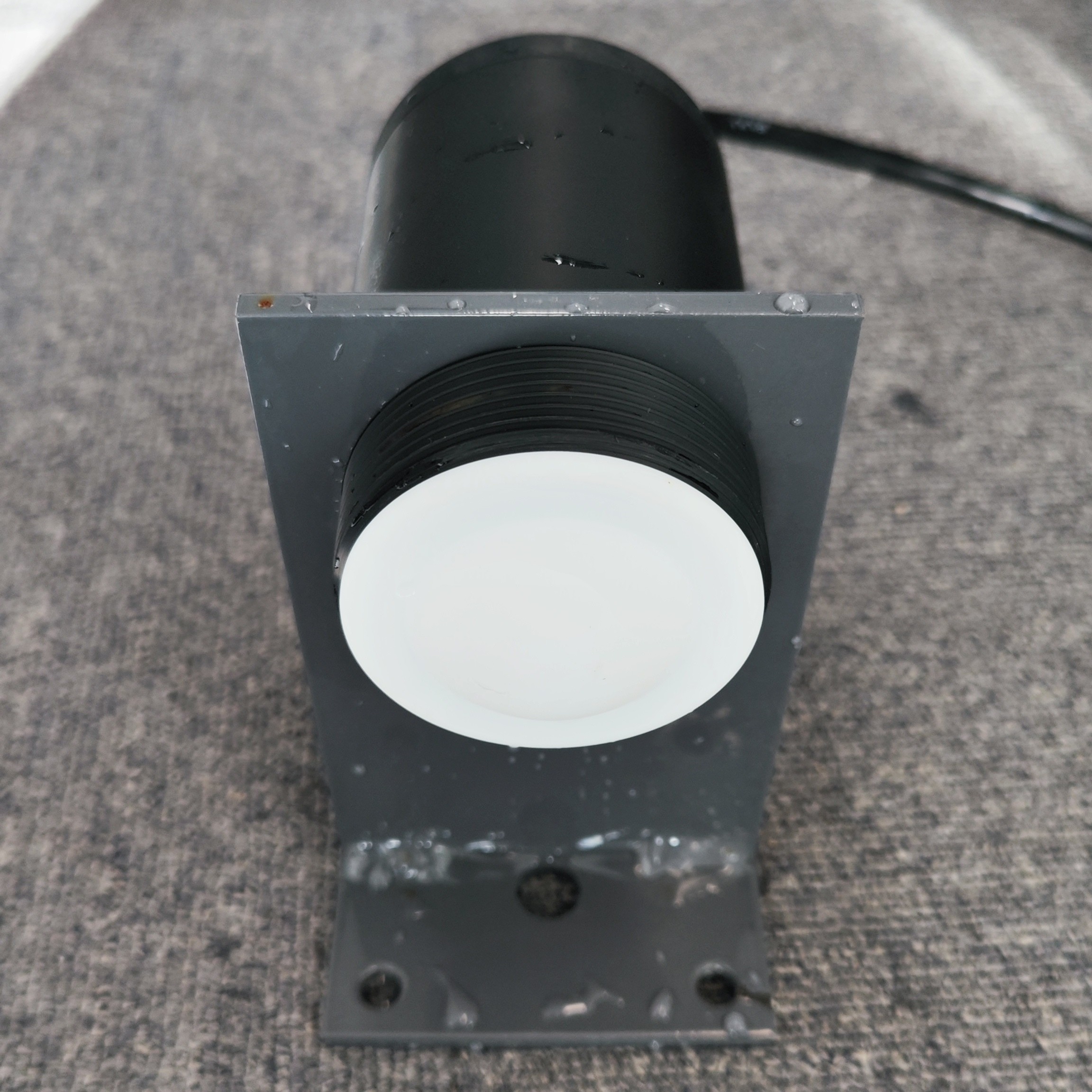

Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid 0Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid 1



Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
    Highly chemically resistant materials ensure long service life of the sensors


Technical Parameters:


Model DTS-RD-80
Application Rivers, embankments, lakes etc
Measuring Range 85m
Accuracy ±1mm
Frequency 80GHz
Process Temperature -40℃~+85℃
Process Pressure (-0.1~0.3) MPa
Process Connection Bracket, flange, thread
Output Signal 4…20mA/HART
Connection Bluetooth/NB-iot/4G
Protection Class IP68
Power Supply (9~36) VDC
Material Stainless Steel+PTFE


Applications:

Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid 2

Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid 3Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid 4Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid 5Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid 6



Packing and Shipping:

  • The Non Contact Radar Level Transmitter is packaged in a sturdy cardboard box with the following dimensions:
    Length: 40 cm
    Width: 30 cm
    Height: 30 cm
    The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

    The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

  • Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid 7
