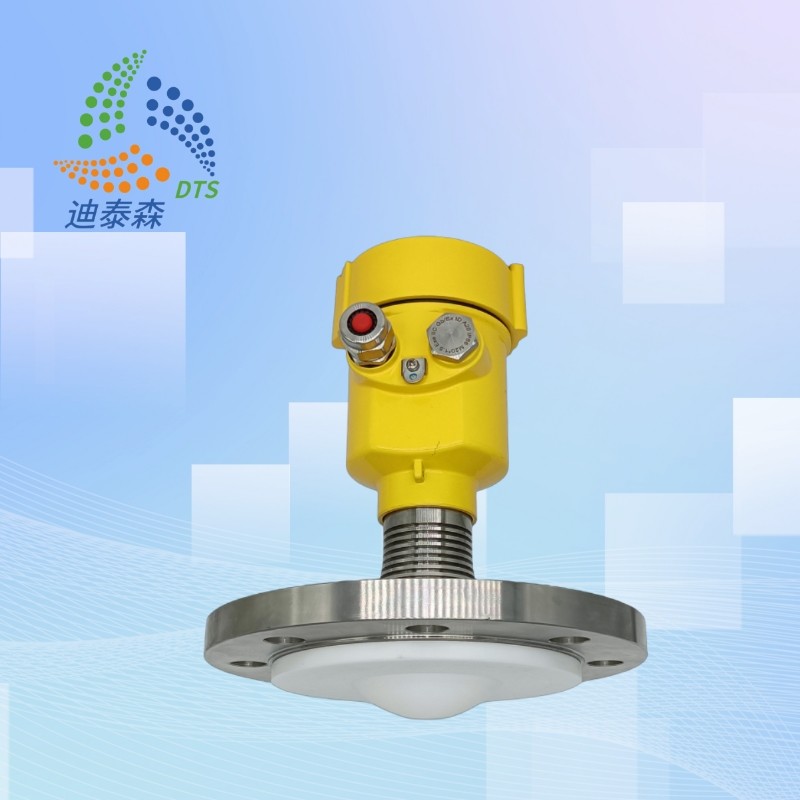

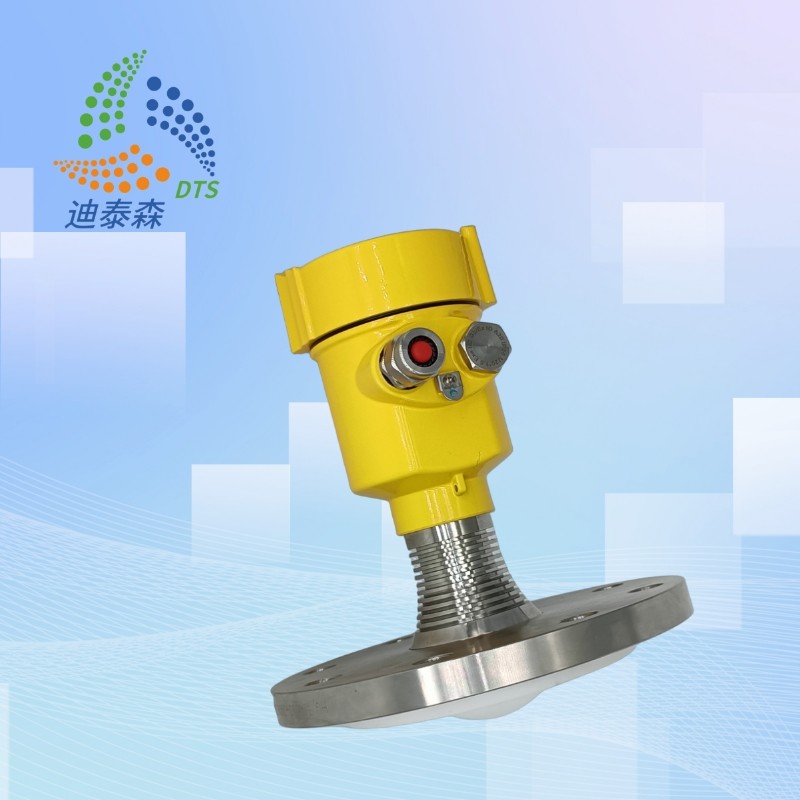

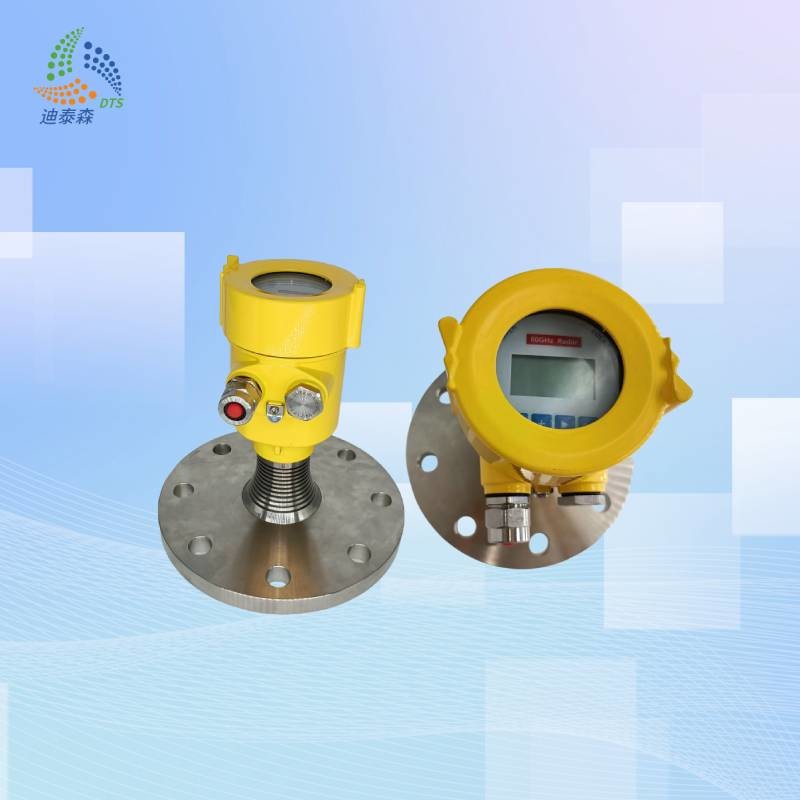

Accurate Non Contact Radar Level Transmitter CNEX Easy Installation

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xGrade | Industrial | Customized Support | OEM, ODM |
---|---|---|---|
Model | DTS-RD-88 | Measuring Range | 120m |
Application | Solid/Liquid Corrosive/Pressure Liquid With Steam And Foam Max 200℃ | Process Temperature | -40℃~+200℃ |
Accuracy | ±2mm | Process Pressure | (-0.1~2.5)MPa |
Highlight | Accurate Non Contact Radar Level Transmitter,Non Contact Radar Level Transmitter CNEX |
120m Non-Contact Radar Level Transmitter Sensor Meter Gauge Max 200℃ Corrosive/Pressure Liquid With Steam Foam
Product Description:
Non Contact Radar Level Transmitter is a reliable and accurate level measurement device. It can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, this series is an ideal solution for level control in the production process.
In continuous non-contact level measurement with radar, the sensor sends microwave signals towards the medium from above. The surface of the medium reflects the signals back in the direction of the sensor. Using the received microwave signals, the sensor determines the distance to the product surface and calculates the level from it.
Features:
- 80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance
Highly chemically resistant materials ensure long service life of the sensors
Technical Parameters:
Model | DTS-RD-88 |
Application | Solid/Liquid Corrosive/Pressure liquid with steam and foam |
Measuring Range | 120m |
Accuracy | ±2mm |
Frequency | 80GHz |
Process Temperature | -40℃~+200℃ |
Process Pressure | (-0.1~2.5)MPa |
Process Connection | Flange from DN80 |
Output Signal | 4…20mA/HART |
Connection | Bluetooth/NB-iot/4G |
Protection Class | IP67 |
Power Supply | Two wires DC24±6V; Four wires AC220V |
Material | Stainless Steel+PTFE |
Applications:
The DTS-RD-88 Non-Contact Radar Level Transmitter is a reliable and accurate instrument produced by DTS, a leading producer of industrial instrumentation. This non-contact radar level sensor is designed for use in a wide variety of applications, from industrial process control to oil and gas production and chemical plant etc. High 80 GHz frequency of the device ensures reliable measurement results even in difficult applications with steam, condensate or turbulence
Packing and Shipping:
-
The Non Contact Radar Level Transmitter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
-
