Non Contact Radar Water Level Transmitter Sensor Meter 76-81GHz Fuel Oil Tank FMCW

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xGrade | Industrial | Customized Support | OEM, ODM |
---|---|---|---|
Model | DTS-RD-80 | Measuring Range | 85m |
Application | Rivers, Embankments, Lakes Etc | Accuracy | ±1mm |
Process Temperature | -40~85℃ | Process Pressure | (-0.1~0.3) MPa |
Signal Output | (4~20) MA(Supports Bluetooth)/RS485 | Beam Angle | 6° |
Power Supply | (9~36) VDC | Installation Method | Bracket, Flange, Thread |
Non Contact Radar Water Level Transmitter Sensor Meter 76-81GHz Fuel Oil Tank FMCW
Product Description:
Non Contact Radar Level Transmitter is a reliable and accurate level measurement device. It can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, this series is an ideal solution for level control in the production process.

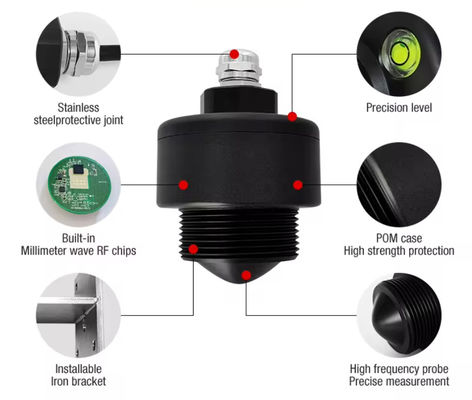

Features:
- 80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance
Highly chemically resistant materials ensure long service life of the sensors
Technical Parameters:
Model | DTS-RD-80 |
Application | Rivers, embankments, lakes etc |
Measuring Range | 85m |
Accuracy | ±1mm |
Frequency | 80GHz |
Process Temperature | -40℃~+85℃ |
Process Pressure | (-0.1~0.3) MPa |
Process Connection | Bracket, flange, thread |
Output Signal | 4…20mA/HART |
Connection | Bluetooth/NB-iot/4G |
Protection Class | IP68 |
Power Supply | (9~36) VDC |
Material | Stainless Steel+PTFE |

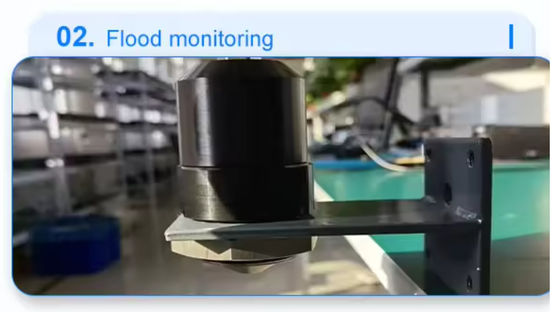

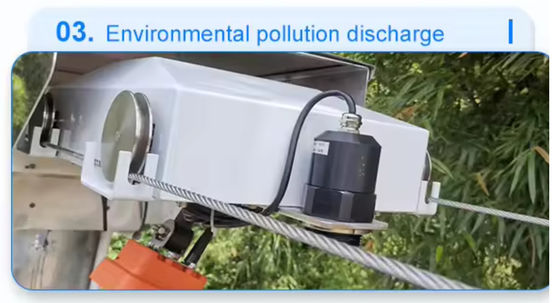

Applications:
Packing and Shipping:
-
The Non Contact Radar Level Transmitter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
-
