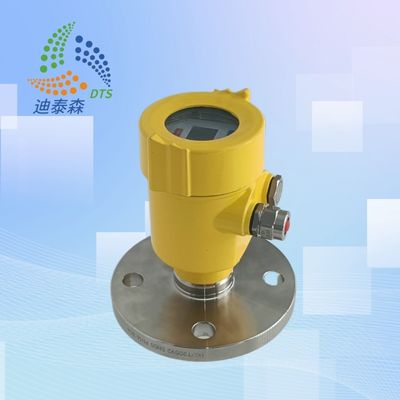

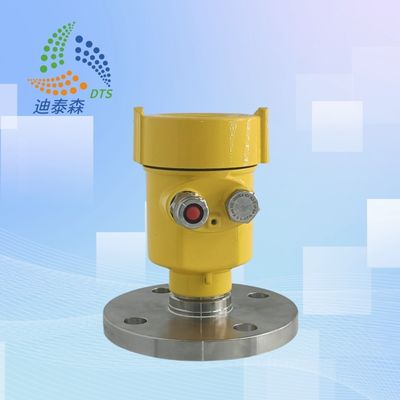

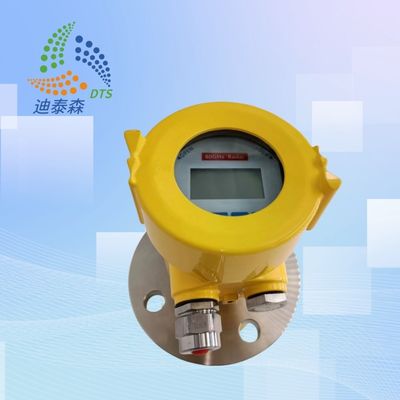

High Precision Radar Level Meter Gauge 80GHz 30-120m -0.1~2.5MPa IP67 Protection

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-83-A
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-83-A Application Corrosive And Pressure Liquid
Process Temperature -40℃~+120℃ Process Pressure -0.1~2.5MPa
Process Connection Flange From DN50 Measuring Range 30m
High Light

High Precision Radar Level Meter

,

Radar Level Meter 2.5MPa

,

radar level gauge 120m

Leave a Message
Product Description

30-120m High Precision 80GHz Radar Level Meter For Corrosive&Pressure Liquid IP67 Protection -0.1~2.5MPa

Product Description:

DTS-RD-83A Radar Level Instrument is researched and manufactured by Beijing DTS Detection. It is capable of accurately measuring the maximum distance from 30m to 120m.



The maximum measurement accuracy of the radar level measuring instrument is extremely high, yet the device is simple to use which makes it beneficial to many industrial manufacturers. High resolution achievable with the radar measurements helps reduce errors in measurement and also reduce manual inspection time. With its advanced technology and user-friendly functions, the radar level measuring instrument has become an ideal tool for industrial applications.





Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance


Technical Parameters:



Model DTS-RD-83-A
Measuring range 30m
Application Corrosive and pressure liquid
Frequency 80GHz
Signal output 4…20mA/HART; RS485/MODBUS

Connection

Bluetooth/NB-iot/4G
Accuracy ±2mm
Material Stainless Steel+PTFE
Protection Level IP67
Process Connection Flange from DN50
Power Supply Two Wires DC24±6V; Four Wires AC220V
Process temperature -40~+120℃
Process pressure (-0.1~2.5)MPa


Applications:

High Precision Radar Level Meter Gauge 80GHz 30-120m -0.1~2.5MPa IP67 Protection 0

Packing and Shipping:

High Precision Radar Level Meter Gauge 80GHz 30-120m -0.1~2.5MPa IP67 Protection 1
