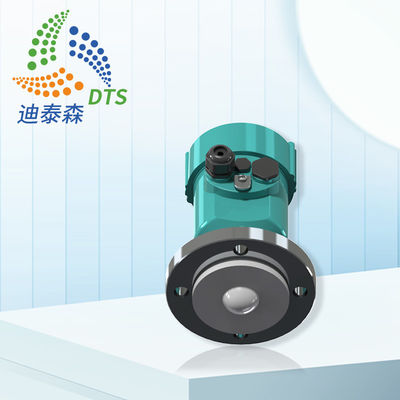

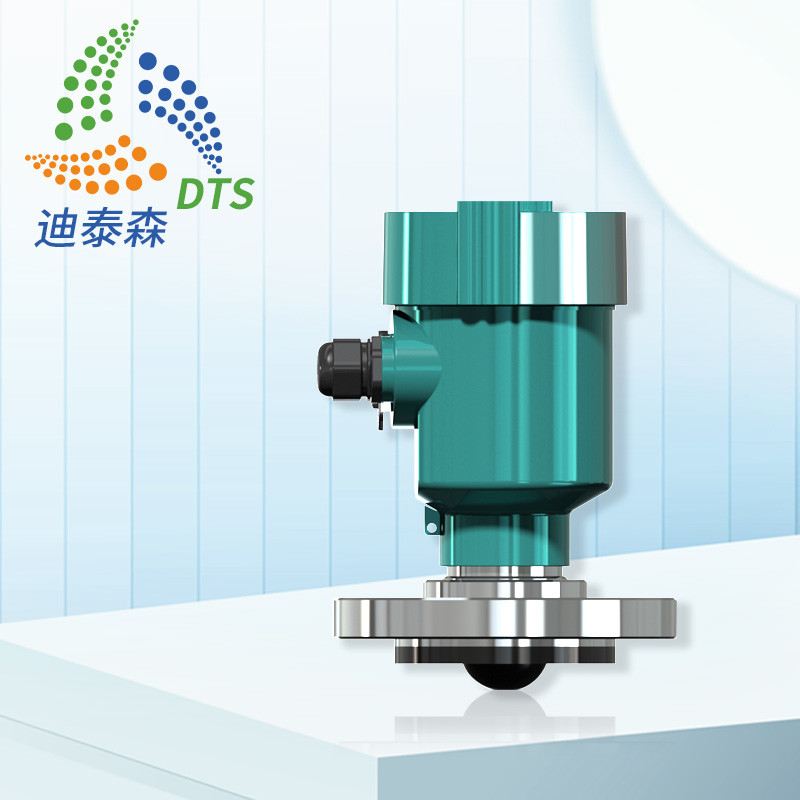

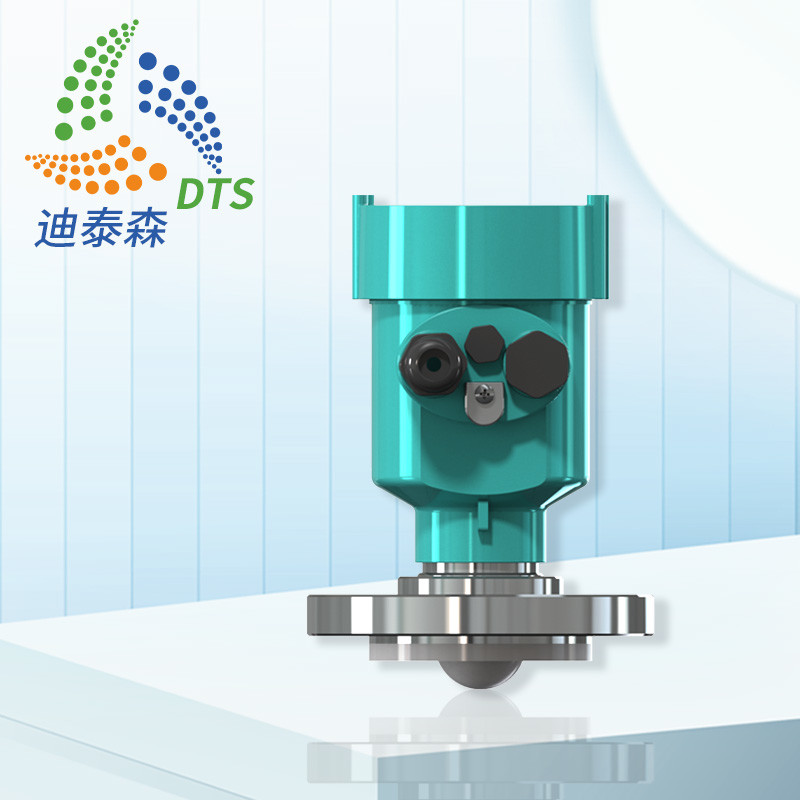

Pressured Liquid Radar Level Indicator gauge Accurate Level Measurement
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xGrade | Industrial | Customized Support | OEM, ODM |
---|---|---|---|
Model | DTS-RD-83-A | Application | Corrosive And Pressured Liquid |
Measuring Range | 30m | Frequency | 80GHz |
Accuracy | ±2mm | Resolution | 1mm |
Process Pressure | (-0.1~2.5)MPa | Process Temperature | -40℃~+120℃ |
High Light | Pressured Liquid Radar Level Indicator,Radar Level Indicator Accurate,radar type level gauge Measurement |
Corrosive And Pressured Liquid Radar Level Indicator High Precision 80GHz Level Sensor Meter Gauge 30m 1mm Resolution
Product Description:
The Non Contact Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.
The 80G Radar Level Meter is a cost-effective solution for level measurement and can be used in a wide range of applications. It offers a reliable and accurate level measurement, which can be used to optimize processes, reduce costs, and improve safety. The device is suitable for use in a variety of industries, including petrochemical, power, oil & gas, and other industrial processes.
Features:
- 80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance
Technical Parameters:
Model | DTS-RD-83-A |
---|---|
Application | Corrosive and Pressured Liquid |
Measuring Range | 30m |
Frequency | 80GHz |
Accuracy | ±2mm |
Resolution | 1mm |
Process Temperature | -40℃~+120℃ |
Process pressure | (-0.1~2.5)MPa |
Process Connection | Flange from DN50 |
Protection Class | IP67 |
Signal output | 4…20mA/HART; RS485/MODBUS |
Connection | Bluetooth/NB-iot/4G |
Material | Stainless Steel+PTFE |
Power Supply | Two Wires DC24±6V; Four Wires AC220V |
Applications:
The 80G Radar Level Transmitter is an advanced microwave level sensor that has a measuring range of 0.15~30m. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos.
Packing and Shipping:
The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.
The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
