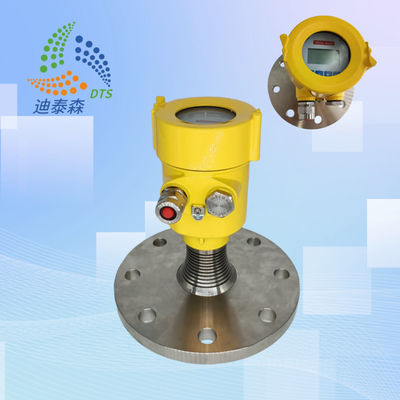

High Accuracy Radar Level Indicator meter For Corrosive Liquid Solid

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-88
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-88 Application Solid; Corrosive Liquid With Steam And Foam
Measuring Range 120m Frequency 80GHz
Process Temperature -40~+200℃ Process Pressure (-0.1~2.5)MPa
High Light

High Accuracy Radar Level Indicator

,

Radar Level Indicator Corrosive Liquid

,

radar level meter Liquid Solid

Leave a Message
Product Description

80GHz High Accuracy Radar Level Indicator Sensor Transmitter of Corrosive Liquid Solid 200℃ 120m

Product Description:

In continuous non-contact level measurement with radar, the sensor sends microwave signals towards the medium from above. The surface of the medium reflects the signals back in the direction of the sensor. Using the received microwave signals, the sensor determines the distance to the product surface and calculates the level from it.



Radar measurement: Measuring Principle
Radar level meter works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.



Liquids and solids are commonly measured with this measuring technique.

High Accuracy Radar Level Indicator meter For Corrosive Liquid Solid 0

Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
  • Highly chemically resistant materials ensure long service life of the sensors
  •



Technical Parameters:


Model DTS-RD-88
Application Corrosive Liquid With Steam And Foam
Measuring Range 120m
Frequency 80GHz
Accuracy ±2mm
Process Temperature -40℃~+200℃ Customized for max1200℃
Process Pressure (-0.1~2.5)MPa
Protection Class IP67
Power Supply Two wires DC24±6V; Four wires AC220V
Output Signal 4…20mA/HART
Connection Bluetooth/NB-iot/4G
Process Connection Flange from DN80
Material Stainless Steel+PTFE


Applications:

The DTS-RD-88 Non-Contact Radar Level Meter from DTS is a reliable and accurate solution for non-contact level measurement. It is widely used in various industrial applications, such as water treatment, chemical plant, filling systems for pharmaceutical and cosmetic products etc. With its high accuracy, ease of use and reliable performance, the DTS-RD-88 Non-Contact Radar Level Meter is the ideal choice for any non-contact level measurement requirements.



Packing and Shipping:

The Non Contact Radar Level Transmitter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

High Accuracy Radar Level Indicator meter For Corrosive Liquid Solid 1
