Liquid Hygienic Radar Type Flow Meter 1mm Resolution IP67 Protection

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xGrade | Industrial | Customized Support | OEM, ODM |
---|---|---|---|
Model | DTS-RD-83-B | Application | Liquid-hygienic |
Measuring Range | 30m | Frequency | 80GHz |
Accuracy | ±2mm | Resolution | 1mm |
Process Pressure | (-0.1~1)MPa | Process Temperature | -40℃~+120℃ |
Highlight | Hygienic Radar Type Flow Meter,Liquid Radar Type Flow Meter,radar flow meter IP67 |

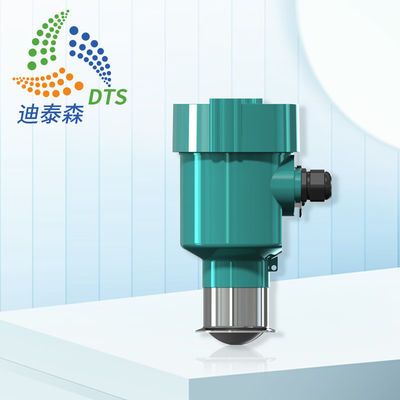

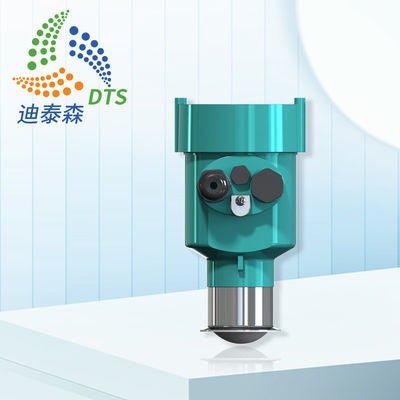

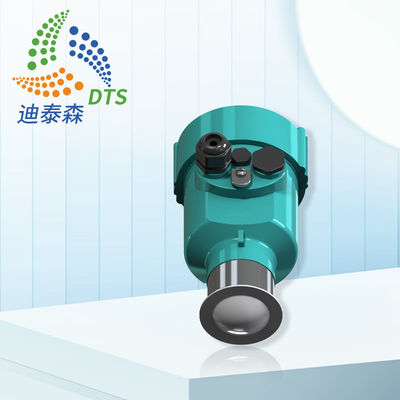

Liquid-Hygienic Radar Level Indicator High Precision High Sensitivity 80GHz Radar Sensor Meter Gauge 1mm Resolution IP67
Product Description:
The 80GHz Radar Level Indicator is a cost-effective solution for level measurement and can be used in a wide range of applications. It offers a reliable and accurate level measurement, which can be used to optimize processes, reduce costs, and improve safety. The device is suitable for use in a variety of industries, including food, drinks, pharmacy, cosmetics and other industrial processes.
Features:
- 80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance
Technical Parameters:
Model | DTS-RD-83-B |
---|---|
Application | Liquid-Hygienic |
Measuring Range | 30m |
Frequency | 80GHz |
Accuracy | ±2mm |
Resolution | 1mm |
Process Temperature | -40℃~+120℃ |
Process pressure | (-0.1~1)MPa |
Process Connection | Clamp from φ50.5 |
Protection Class | IP67 |
Signal output | 4…20mA/HART; RS485/MODBUS |
Connection | Bluetooth/NB-iot/4G |
Material | Stainless Steel+PTFE |
Power Supply | Two Wires DC24±6V; Four Wires AC220V |
Applications:
This DTS-RD-83-B Radar Level Transmitter is applicable for segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Cosmetics tanks, Alcohol tanks, Water Tanks, Waste water, River, Lake, Reservior etc, all these could use DTS-RD-83-B to monitor the level.
Packing and Shipping:
The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.
The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
