DTS Non Contact Radar Level Sensor Transmitter 80GHz 120m Measuring Range

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-85
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-85 Application Solid Powder And Dust
Measuring Range 120m Frequency 80GHz
Accuracy ±2mm Process Temperature -40℃~+120℃
Process Pressure (-0.1~0.3)MPa Process Connection Flange From DN80
High Light

DTS Non Contact Radar Level Sensor

,

Non Contact Radar Level Sensor 80GHz

,

non contact level transmitter 120m

Leave a Message
Product Description

80GHz 120m 120℃ Radar Level Indicator Bulk Solid Powder Dust Swivelling Mounting Sensor Meter Transmitter

Product Description:

Radar measurement: Measuring Principle
Radar level meter works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.



The Radar Level Meter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions.With its advanced microwave level sensor technology, the 80GHz Radar Level Meter is ideal for level measurement in applications such as storage tanks, sewage treatment, and chemical processes, where reliable and accurate level measurement is essential. The device is also well suited for monitoring the levels of corrosive, abrasive, or viscous liquids, and it can be used for slurry or powdery solids as well. The robust design is suitable for use in harsh environments such as petrochemical plants, power plants, oil & gas refineries, and other industrial applications.

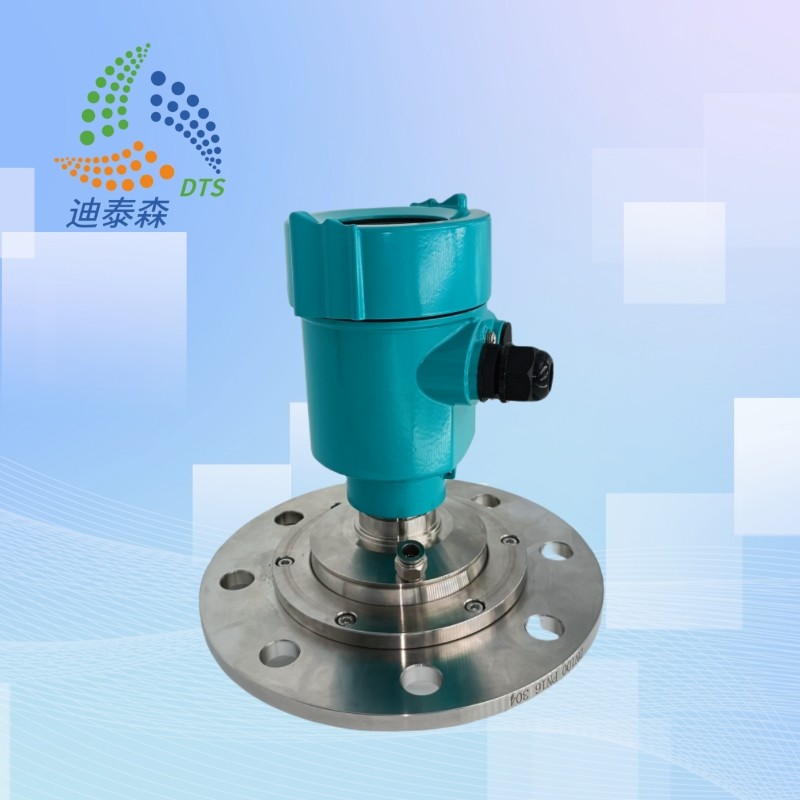

DTS Non Contact Radar Level Sensor Transmitter 80GHz 120m Measuring Range 0

Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
  • Swivelling mounting,Easily adjustable (up to ±10°)
  • Air purge connection or Nitrogen purge connection,efficient cleaning.
  •

Technical Parameters:

Model DTS-RD-85
Application Bulk Solid Powder And Dust
Measuring Range 120m
Frequency 80GHz
Accuracy ±2mm
Process Temperature -40℃~+120℃ Max1200℃
Process pressure (-0.1~0.3)MPa
Process Connection Flange from DN80
Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G


Applications:

This DTS-RD-85 Radar Level Transmitter is applicable for high silos, segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Grain Storage, Bran, Fumed silica, Very light fly ash, Plastic powder, Dry wood chips,  Cement, Cement silo etc, all these could use DTS-RD-85-A to monitor the level.

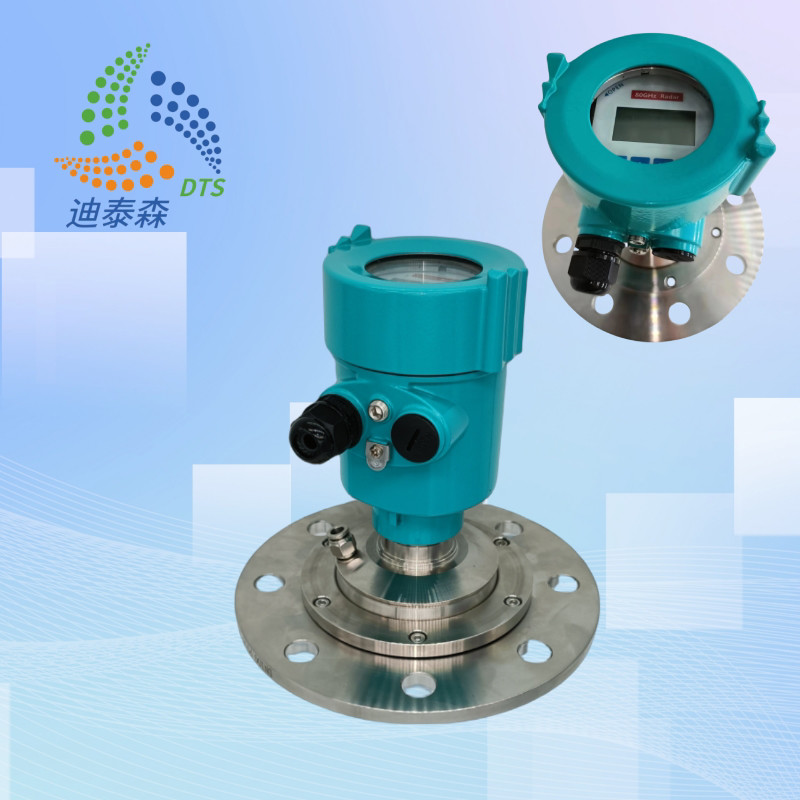

DTS Non Contact Radar Level Sensor Transmitter 80GHz 120m Measuring Range 1

Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

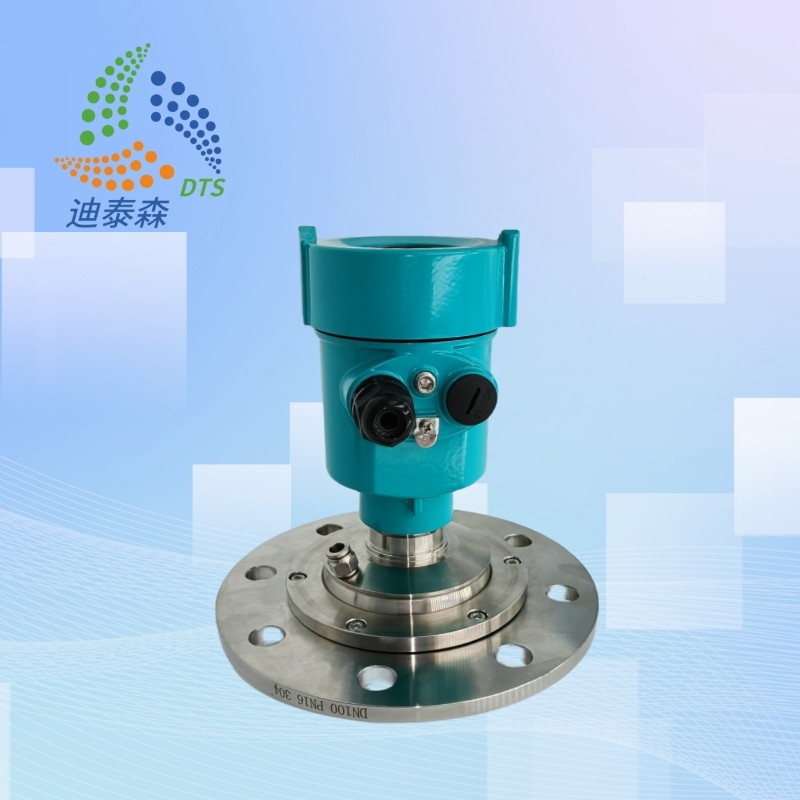

DTS Non Contact Radar Level Sensor Transmitter 80GHz 120m Measuring Range 2
