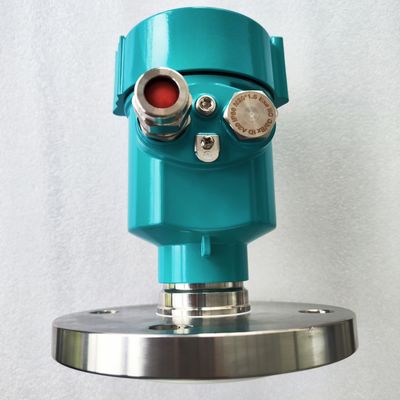

10m Radar Level Indicator High Sensitivity Radar Type Level Switch 80GHz
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xGrade | Industrial | Customized Support | OEM, ODM |
---|---|---|---|
Model | DTS-RD | Application | Liquid In Small Container |
Measuring Range | 10m | Frequency | 80GHz |
Accuracy | ±2mm | Resolution | 1mm |
Process Pressure | (-0.1~0.1)MPa | Process Temperature | -40℃~+120℃ |
High Light | 10m Radar Level Indicator,Radar Level Indicator Switch,Radar Type Level Switch 80GHz |
Manufacturer 80GHz Radar Level Indicator Sensor Meter Gauge Transmitter High Precision High Sensitivity
Product Description:
The 80GHz Radar Level Indicator is an ideal choice for reliable and accurate level measurement. It is equipped with a high-sensitivity microwave level sensor, which enables it to measure the level of liquids or solids in a wide range of materials and industries. The device is capable of providing continuous monitoring and can detect level changes in real-time. It is also resistant to vibration, temperature fluctuations, and other environmental factors. The device is simple to install and can be easily integrated into existing control systems.
Measuring principle
The principle of the FM cCW radar bit meter is that the radar emits electromagnetic waves on the top of the tank, and the electromagnetic wave is reflected by the radar. The frequency difference δ f between the received signal and the transmitted signal is proportional to the distance R to the surface of the medium R: R= C (speed) * δ f (frequency difference) / 2 / K (frequency modulation slope). Because the light speed C and the FM slope K are known, the frequency difference δ f can be calculated to obtain the distance R between the installed position of the radar and the material surface, and then obtain the height of the material level by subtracting the spatial distance between the radar and the material surface (empty height for short) from the known total height of the tank body.
Features:
- 80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance
Technical Parameters:
Model | DTS-RD |
---|---|
Application | Liquid in small container |
Measuring Range | 10m |
Frequency | 80GHz |
Accuracy | ±2mm |
Process Temperature | -40℃~+120℃ |
Process pressure | (-0.1~0.1)MPa |
Process Connection | Thread G3/4; Flange from DN30 |
Protection Class | IP67 |
Signal output | 4…20mA/HART; RS485/MODBUS |
Connection | Bluetooth/NB-iot/4G |
Material | Stainless Steel+PTFE |
Power Supply | Two Wires DC24±6V; Four Wires AC220V |
Applications:
This DTS-RD Radar Level Transmitter is applicable for segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Cosmetics tanks, Alcohol tanks, Water Tanks, Waste water, River, Lake, Reservior etc, all these could use DTS-RD to monitor the level.
Packing and Shipping:
The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.
The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
