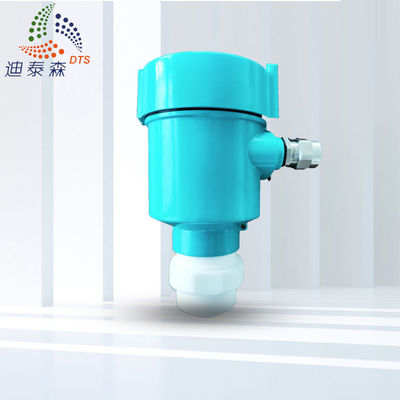

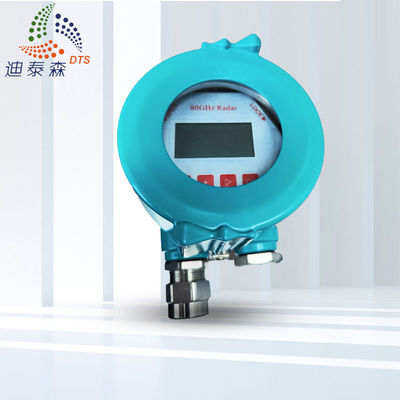

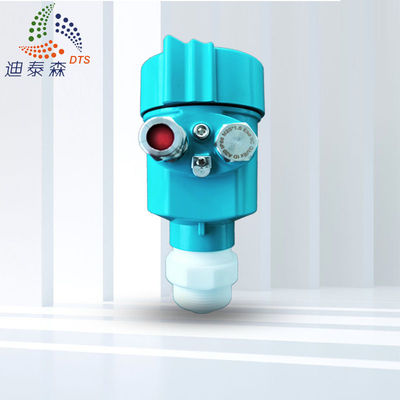

High Precision Radar Tank Level Indicator gauges 80GHz for Corrosive Liquid
| Place of Origin | China |
|---|---|
| Brand Name | DTS |
| Certification | CNEX |
| Model Number | DTS-RD-82-C |
| Minimum Order Quantity | 1 |
| Packaging Details | Carton |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | Industrial | Customized Support | OEM, ODM |
|---|---|---|---|
| Model | DTS-RD-82-C | Application | Corrosive Liquid |
| Measuring Range | 30m | Frequency | 80GHz |
| Accuracy | ±2mm | Resolution | 1mm |
| Process Pressure | （-0.1~0.1）MPa | Process Temperature | -40℃~+120℃ |
| High Light | High Precision Radar Tank Level Indicator,Radar Tank Level Indicator 80GHz,radar gauges 80GHz |
||
Product Description
DTS-RD-82-C 30m Radar Level Indicator High Precision 80GHz Radar Level Sensor Meter Gauge 1mm Corrosive liquid
Product Description:
The Non Contact Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.
DTS-RD-82-C Radar level measuring instrument is capable of accurately measuring the maximum distance up to 30 meters.
The maximum measurement accuracy of the radar level measuring instrument is extremely high, yet the device is simple to use which makes it beneficial to many industrial manufacturers. High resolution achievable with the radar measurements helps reduce errors in measurement and also reduce manual inspection time.
Features:
- 80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance
Technical Parameters:
| Model | DTS-RD-82-C |
|---|---|
| Application | Corrosive Liquid |
| Measuring Range | 30m |
| Frequency | 80GHz |
| Accuracy | ±2mm |
| Resolution | 1mm |
| Process Temperature | -40℃~+120℃ |
| Process pressure | (-0.1~0.1)MPa |
| Process Connection | Thread G1½; Flange from DN50 |
| Protection Class | IP67 |
| Signal output | 4…20mA/HART; RS485/MODBUS |
| Connection | Bluetooth/NB-iot/4G |
| Material | Stainless Steel+PTFE |
| Power Supply | Two Wires DC24±6V; Four Wires AC220V |
Applications:
The 80G Radar Level Meter is an advanced microwave level sensor that has a measuring range of 0.15~30m and is equipped with a microwave level sensor. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos. This level meter is an ideal choice for industrial operations that require accurate and reliable measuring of liquid and solid levels.
Packing and Shipping:
The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.
The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
