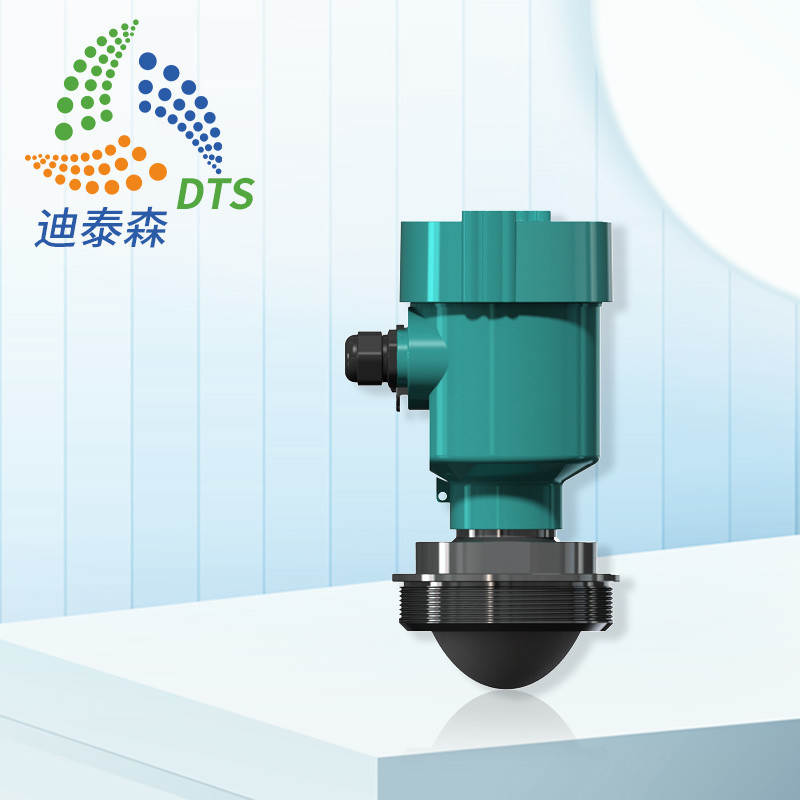

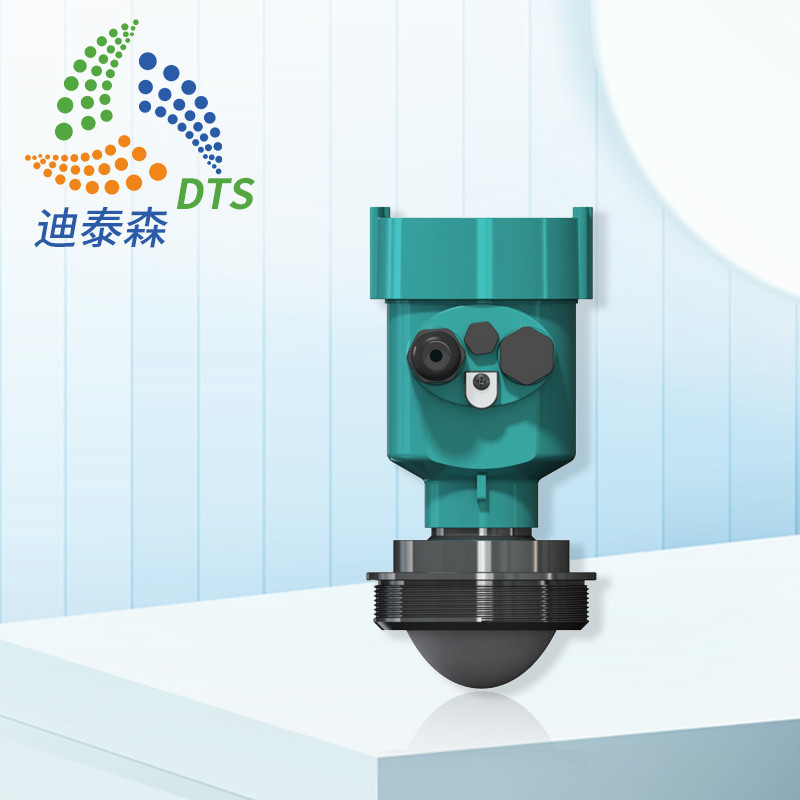

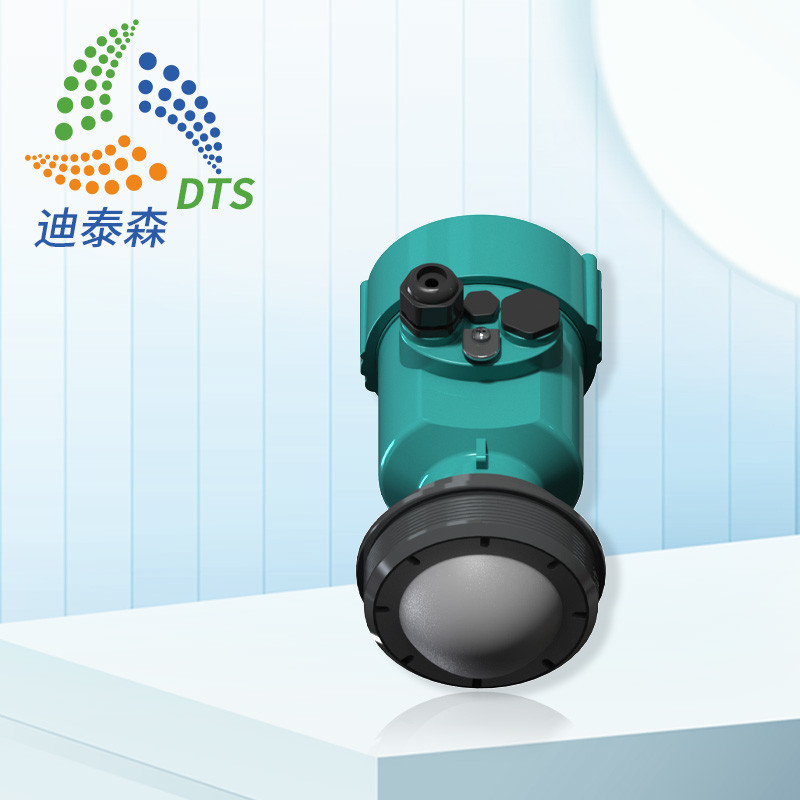

120m 80 Ghz Radar Level Transmitter Narrow Beam Less Maintenance
| Place of Origin | China |
|---|---|
| Brand Name | DTS |
| Certification | CNEX |
| Model Number | DTS-RD-86-A |
| Minimum Order Quantity | 1 |
| Packaging Details | Carton |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | Industrial | Customized Support | OEM, ODM |
|---|---|---|---|
| Model | DTS-RD-86-A | Application | Solid/Liquid Corrosive Liquid With Steam And Foam |
| Measuring Range | 120m | Frequency | 80GHz |
| Accuracy | ±2mm | Resolution | 1mm |
| Process Pressure | -0.1~0.1）MPa | Process Temperature | -40℃~+120℃ |
| High Light | 120m 80 Ghz Radar Level Transmitter,80 Ghz Radar Level Transmitter Narrow beam,radar liquid level transmitter Narrow Beam |
||
Product Description
80GHz Radar Level Transmitter High Precision 120m Solid/Liquid Radar Level Sensor Meter Gauge
Product Description:
The 80GHz Radar Level Meter is a high-performance level transmitter specifically designed for the measurement of liquids and solids in industrial processes. With its advanced microwave level sensor technology, the 80G Radar Level Meter is ideal for level measurement in applications such as storage tanks, sewage treatment, and chemical processes, where reliable and accurate level measurement is essential. The device is also well suited for monitoring the levels of corrosive, abrasive, or viscous liquids. The robust design is suitable for use in harsh environments such as petrochemical plants, power plants, oil & gas refineries, and other industrial applications.
Features:
- 80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance
Technical Parameters:
| Model | DTS-RD-86-A |
|---|---|
| Application | Solid/Liquid Corrosive liquid with steam and foam |
| Measuring Range | 120m |
| Frequency | 80GHz |
| Accuracy | ±2mm |
| Resolution | 1mm |
| Process Temperature | -40℃~+120℃ |
| Process pressure | (-0.1~0.1)MPa |
| Process Connection | Flange from DN80 |
| Protection Class | IP67 |
| Signal output | 4…20mA/HART; RS485/MODBUS |
| Connection | Bluetooth/NB-iot/4G |
| Material | Stainless Steel+PTFE |
| Power Supply | Two Wires DC24±6V; Four Wires AC220V |
Applications:
The 80GHz Radar Level Transmitter is an advanced microwave level sensor that has a measuring range of 0.15~120m. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos.
Packing and Shipping:
The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.
The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
