Small Blind Zone 80 Ghz Radar Level Transmitter HF Radar Pulses

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-83
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-83 Application Corrosive And Pressured Liquid
Measuring Range 30m Frequency 80GHz
Accuracy ±2mm Resolution 1mm
Process Pressure (-0.1~2.5)MPa Process Temperature -40℃~+120℃
High Light

80 Ghz Radar Level Transmitter HF

,

Small 80 Ghz Radar Level Transmitter

,

radar type level transmitter HF

Leave a Message
Product Description

80GHz Radar Level Transmitter for Corrosive&Pressured Liquid Sensor Meter Gauge 1mm Resolution

Product Description:

Radar measurement: Measuring Principle
Radar level transmitter works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.



The 80G Radar Level Transmitter is a cost-effective solution for level measurement and can be used in a wide range of applications. It offers a reliable and accurate level measurement, which can be used to optimize processes, reduce costs, and improve safety. The device is suitable for use in a variety of industries, including petrochemical, power, oil & gas, and other industrial processes.

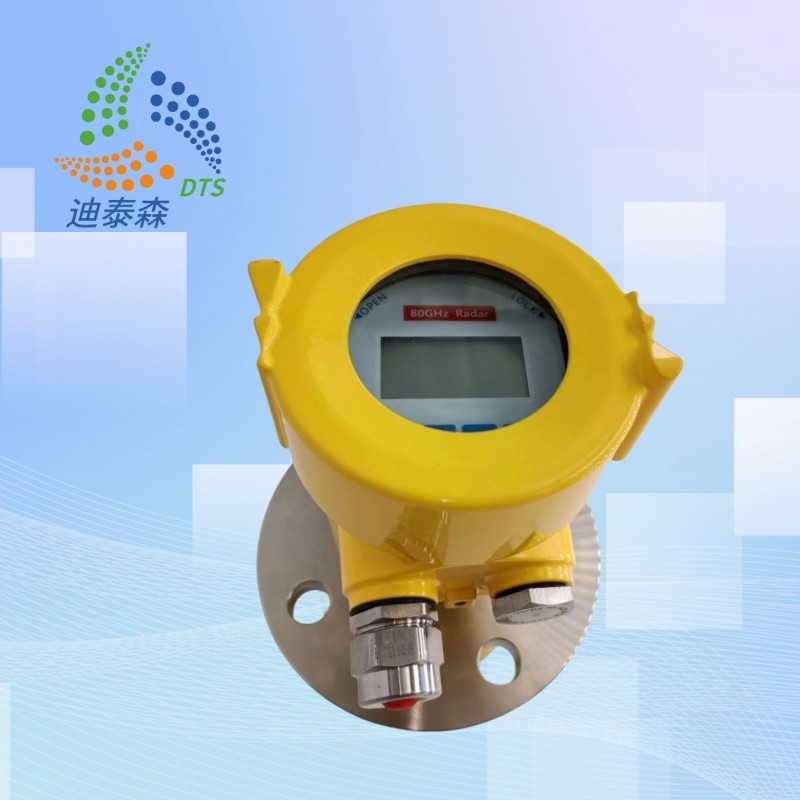

Small Blind Zone 80 Ghz Radar Level Transmitter HF Radar Pulses 0



Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
  •
  •
  •

Technical Parameters:

Model DTS-RD-83
Application Corrosive and Pressured Liquid
Measuring Range 30m
Frequency 80GHz
Accuracy ±2mm
Resolution 1mm
Process Temperature -40℃~+120℃
Process pressure (-0.1~2.5)MPa
Process Connection Flange from DN50

Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Material Stainless Steel+PTFE
Power Supply Two Wires DC24±6V; Four Wires AC220V


Applications:

The 80G Radar Level Transmitter is an advanced microwave level sensor that has a measuring range of 0.15~30m. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos.



Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

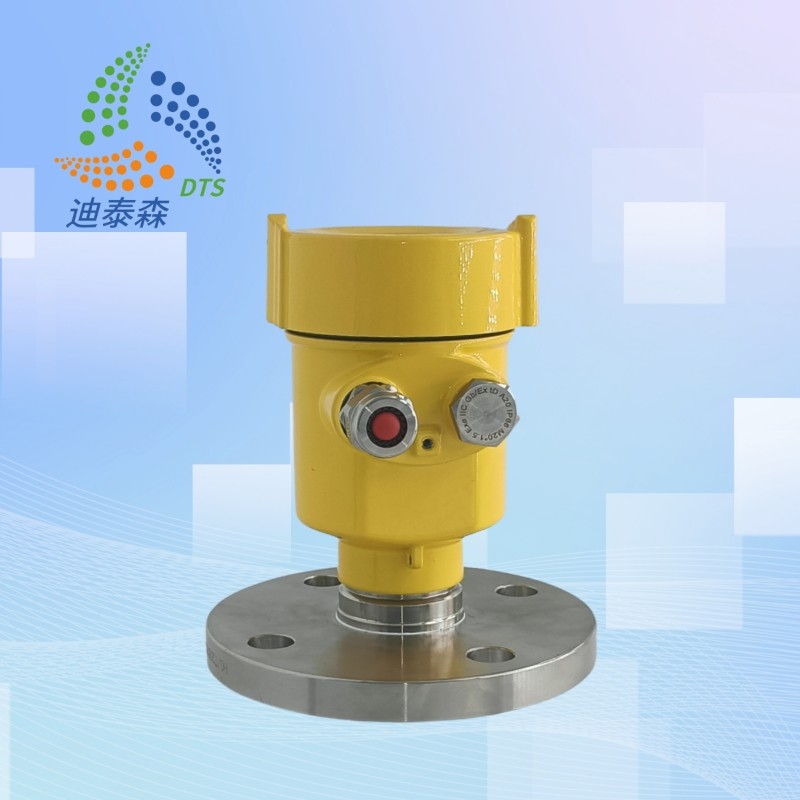

Small Blind Zone 80 Ghz Radar Level Transmitter HF Radar Pulses 1
