ODM Radar Level Measurement High Accuracy Air Purge Connection

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-85-A
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Resolution 1mm Application Solid Powder And Dust
Measuring Range 120m Frequency 80GHz
Accuracy ±2mm Process Temperature -40℃~+120℃
Process Pressure (-0.1~0.3)MPa Process Connection Flange From DN80
High Light

Radar Level Measurement Air Purge

,

Radar Level Measurement High Accuracy

,

radar level transducer Air Purge

Leave a Message
Product Description

80GHz Radar Level Transmitter 120m 120℃ Swivelling Mounting Air Purge Connection High Accuracy Sensor Meter

Product Description:

The 80GHz Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process. With Air or Nitrogen purge connection, this DTS-RD-85-A is suitalbe for solid and power with heavy dust.



Easy-to-install radar level measurement with flanged, threaded, and sanitary process connections for every application. This broad range of devices are highly reliable and precise, featuring innovative operations and design for your industry and your process.

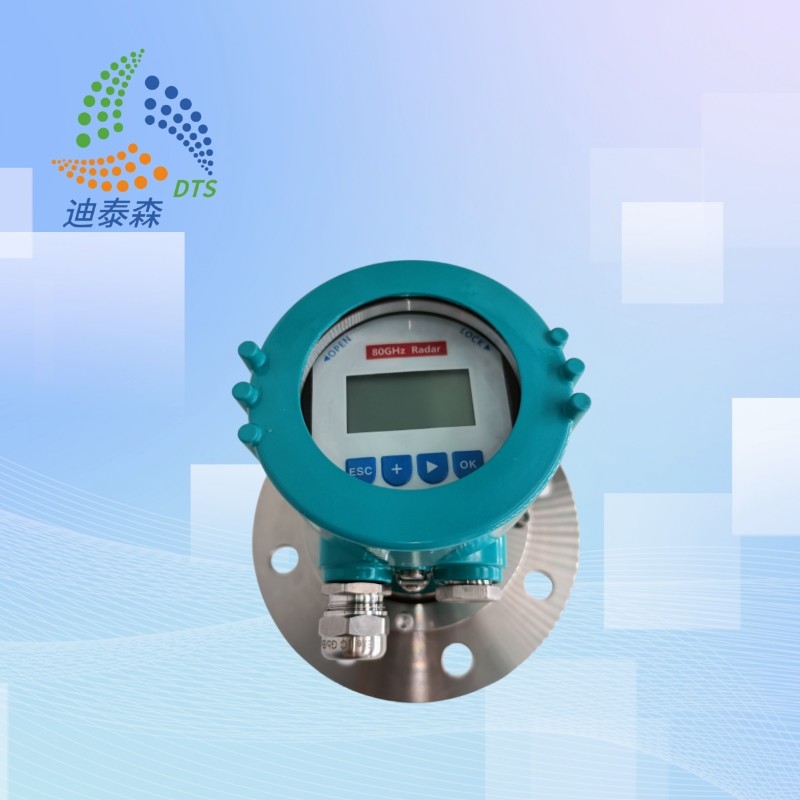

ODM Radar Level Measurement High Accuracy Air Purge Connection 0

Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
  • Swivelling mounting,Easily adjustable (up to ±10°)
  • Air purge connection or Nitrogen purge connection,efficient cleaning.

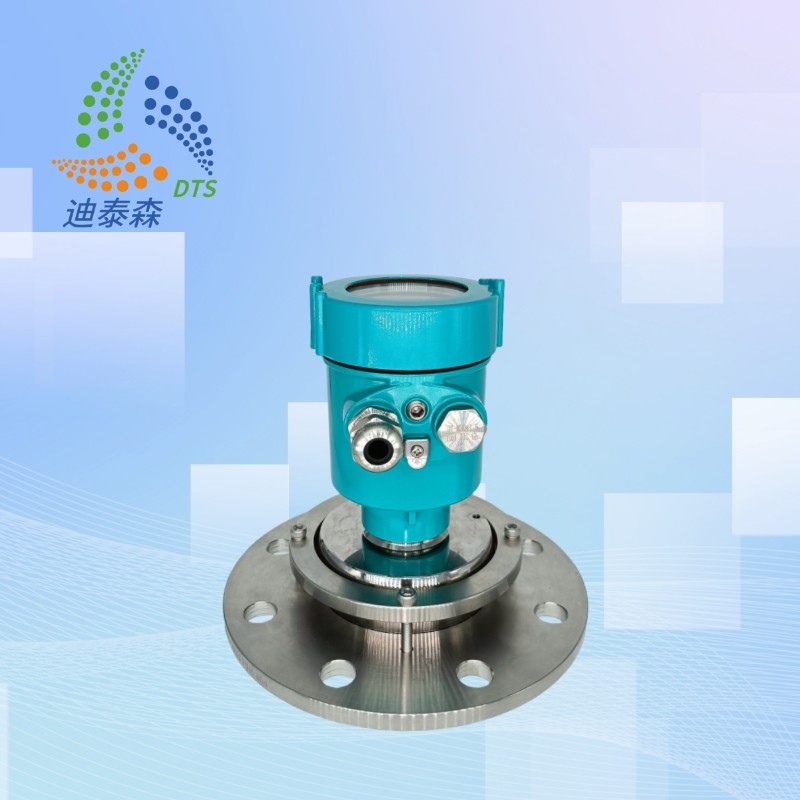

  • ODM Radar Level Measurement High Accuracy Air Purge Connection 1

Technical Parameters:

Model DTS-RD-85-A
Application Bulk Solid Powder And Dust
Measuring Range 120m
Frequency 80GHz
Accuracy ±2mm
Process Temperature -40℃~+120℃
Process pressure (-0.1~0.3)MPa
Process Connection Flange from DN80
Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Power Supply Two wires DC24±6V; Four wires AC220V


Applications:

This DTS-RD-85-A Radar Level Transmitter is applicable for high silos, segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Grain Storage, Bran, Fumed silica, Very light fly ash, Plastic powder, Dry wood chips,  Cement, Cement silo etc, all these could use DTS-RD-85-A to monitor the level.
