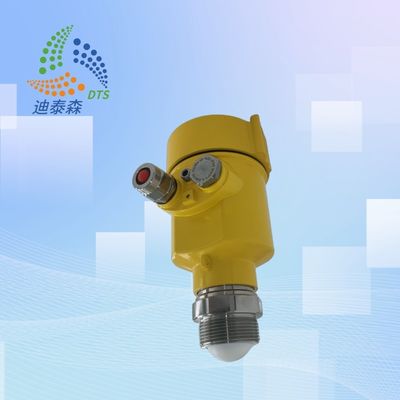

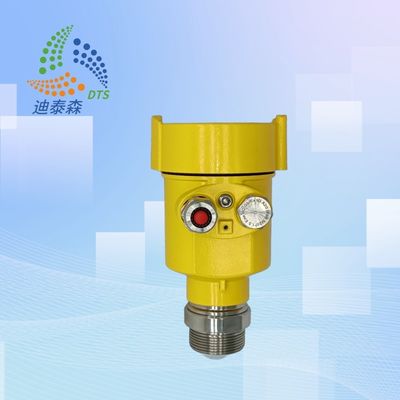

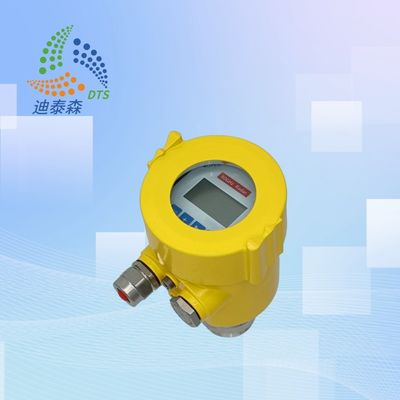

High Sensitivity Radar Type Level Gauge 30m 80GHz for Liquid

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-82
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-82 Application Liquid
Measuring Range 30m Frequency 80GHz
Accuracy ±2mm Process Temperature -40℃~+120℃
Process Pressure (-0.1~0.1)MPa Process Connection Thread G1½; Flange From DN50
High Light

Radar Type Level Gauge 30m

,

High Sensitivity Radar Type Level Gauge

,

radar tank gauging system Liquid

Leave a Message
Product Description

30m 80GHz Radar Level Transmitter High Sensitivity Radar Level Sensor Meter Gauge for Corrosive Liquid

Product Description:

The Non Contact Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.



Radar measurement: Measuring Principle
Radar level meter works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.

High Sensitivity Radar Type Level Gauge 30m 80GHz for Liquid 0



Features:

  • 1. The antenna size of the high frequency level meter is small and easy to install, which enhances its non-contact radar and eliminates any wear and pollution.

  •



    2. Almost all forms of corrosion and foam barely effect this radar, and while water vapor, temperature, and pressure changes in the atmosphere may affect it, the changes are minimal.
  •



    3. In dusty environments, this level meter remains unaffected and continues to use and perform its tasks.

  • 4. The shorter wavelength allows the high frequency level meter to operate better while bouncing signals off of tilted solid surfaces.


  • 5. The beam angle is significantly small, which makes the radar more capable of concentrating the energy it uses as well as enhancing the echo ability to better avoid interference objects.

  •
  •
  •

Technical Parameters:

Model DTS-RD-82
Application Liquid
Measuring Range 30m
Frequency 80GHz
Accuracy ±2mm
Process Temperature -40℃~+120℃
Process pressure (-0.1~0.1)MPa
Process Connection Thread G1½; Flange from DN50

Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Material Stainless Steel+PTFE
Power Supply Two Wires DC24±6V; Four Wires AC220V


Applications:

This DTS-RD-82 Radar Level Transmitter is applicable for segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Cosmetics tanks, Alcohol tanks, Water Tanks, Waste water, River, Lake, Reservior  etc, all these could use DTS-RD-82 to monitor the level.





Packing and Shipping:

Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
