Solid Powder Dust Radar Liquid Level Sensor Max 1200 degree 80GHz
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xGrade | Industrial | Customized Support | OEM, ODM |
---|---|---|---|
Model | DTS-RD-88-C | Application | High Temperature Solid High Temperature And Pressure Liquid |
Measuring Range | 120m | Frequency | 80GHz |
Accuracy | ±2mm | Process Temperature | -40℃~+1200℃ |
Process Pressure | (-0.1~2.5)MPa | Process Connection | Flange From DN100 |
High Light | Radar Liquid Level Sensor 1200 Degree,Dust Radar Liquid Level Sensor,radar water level sensor 80GHz |
Max 1200℃ 80GHz Radar Level Transmitter Bulk Solid Powder Dust Pressure Liquid Sensor Meter Gauge 120m
Product Description:

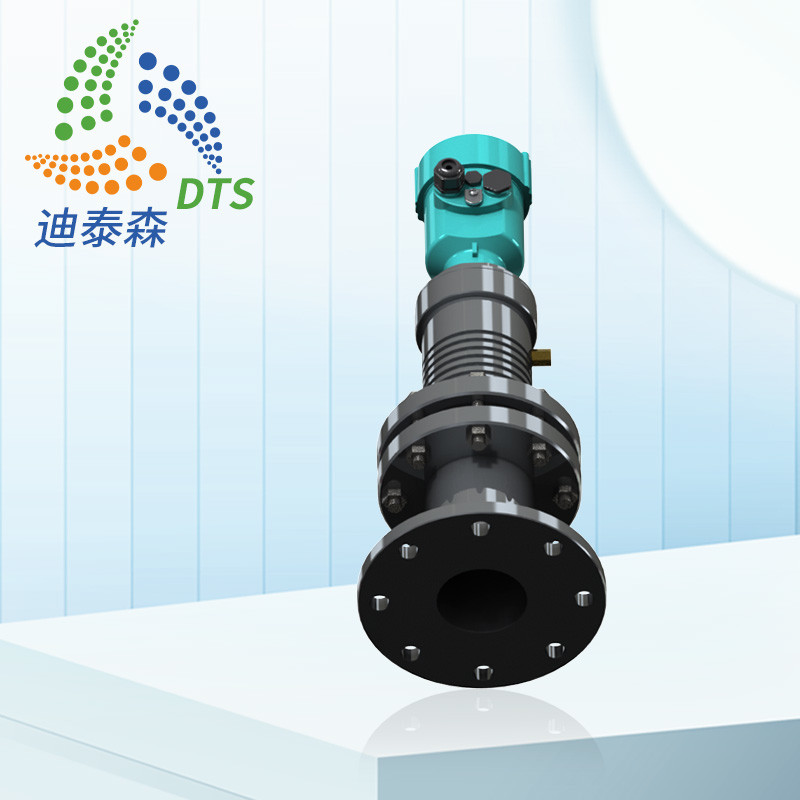

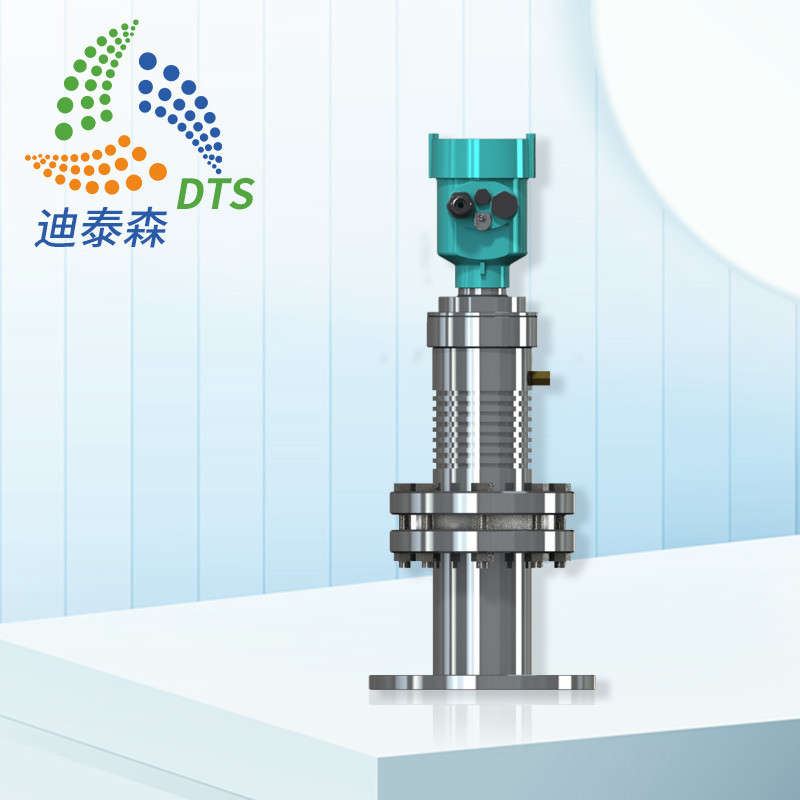

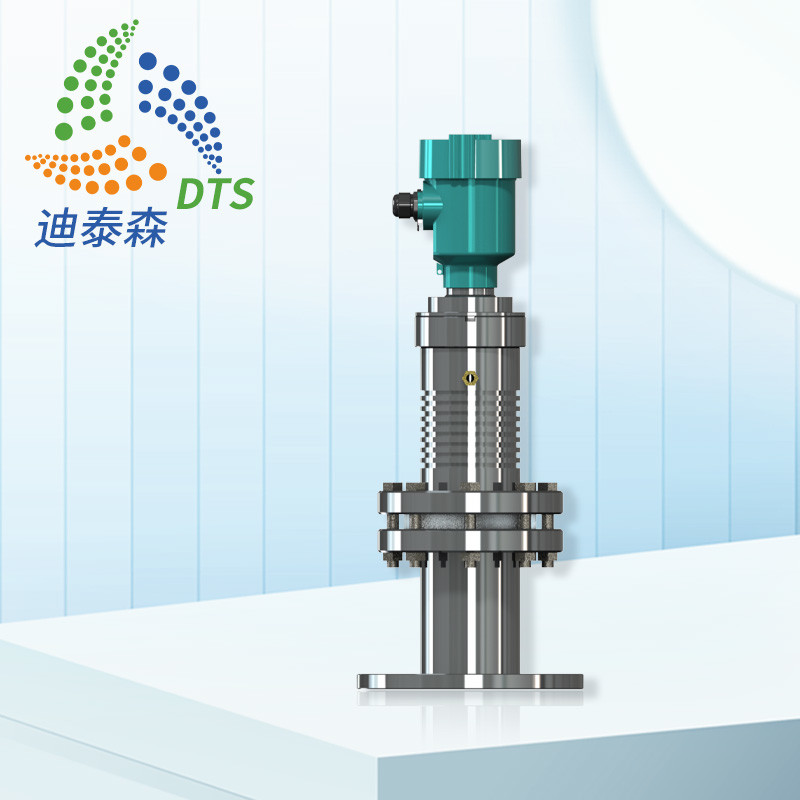

The DTS-RD-88-C 80GHz Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process. In order to increase the tempertuare, the heat dissipation tube is used to DTS-RD-88-C, this will keep the antenna will not be affected by the high temperature so that to ensure the high precision result.
Features:
- 80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance
Technical Parameters:
Model | DTS-RD-88-C |
---|---|
Application | High temperature solid; High temperature and pressure liquid |
Measuring Range | 120m |
Frequency | 80GHz |
Accuracy | ±2mm |
Process Temperature | -40℃~+1200℃ |
Process pressure | (-0.1~2.5)MPa |
Process Connection | Flange from DN10 |
Protection Class | IP67 |
Signal output | 4…20mA/HART; RS485/MODBUS |
Connection | Bluetooth/NB-iot/4G |
Material | Stainless Steel+PTFE+Quartz glass |
Power Supply | Two Wires DC24±6V; Four Wires AC220V |
Applications:
This DTS-RD-88-C Radar Level Transmitter is applicable for high silos, segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Grain Storage, Bran, Fumed silica, Very light fly ash, Plastic powder, Dry wood chips, Cement, Cement silo etc, all these could use DTS-RD-88-C to monitor the level.
Packing and Shipping:
The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.
The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
