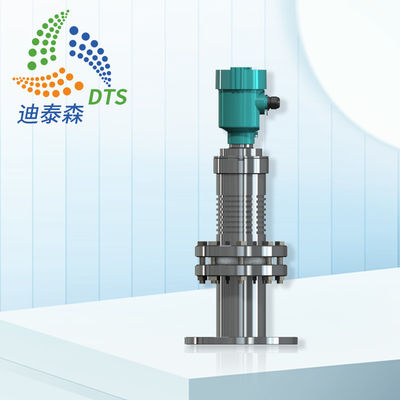

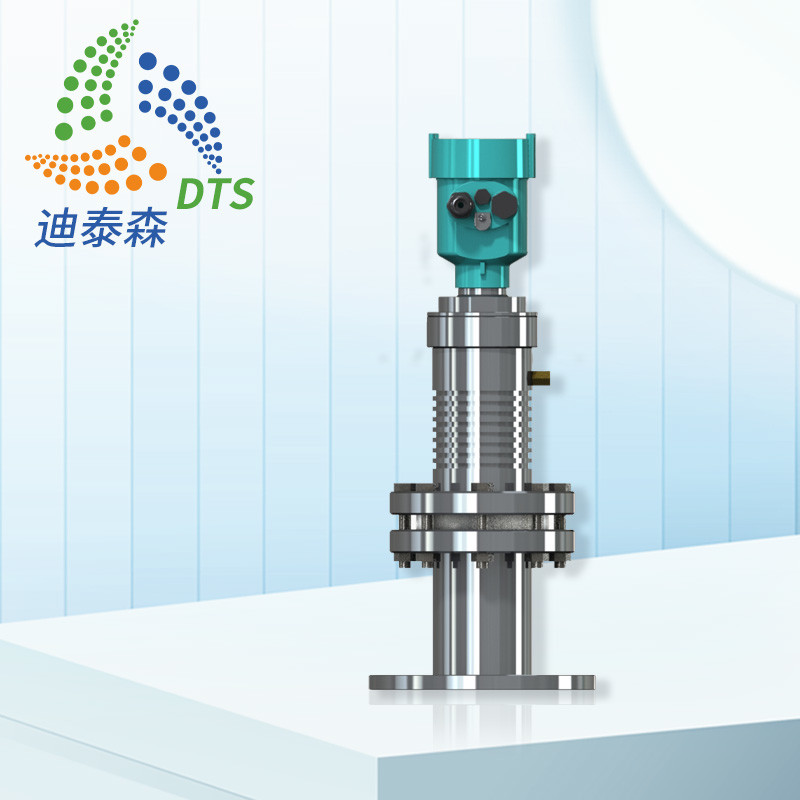

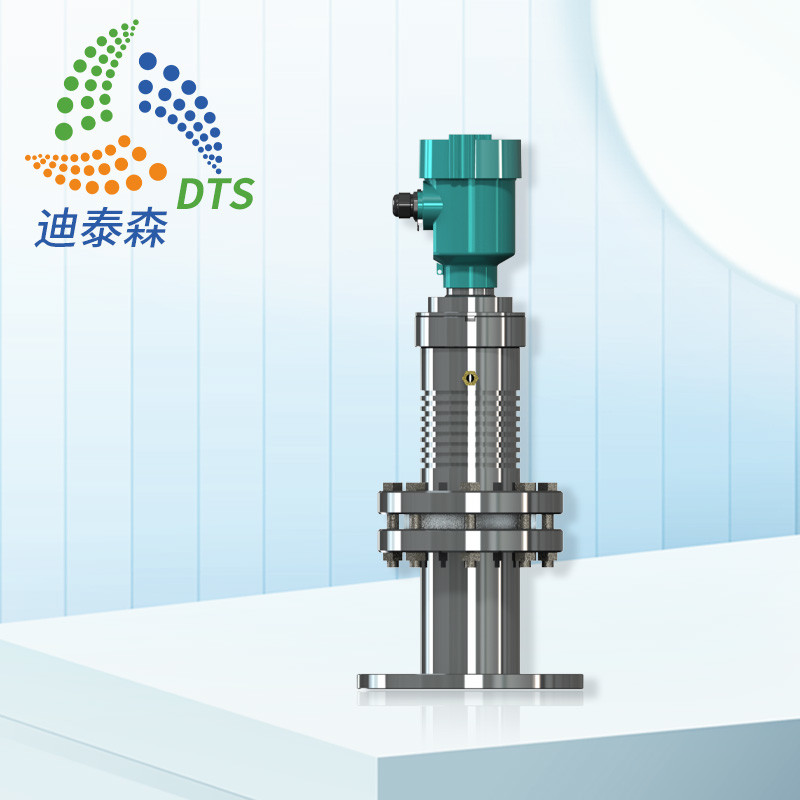

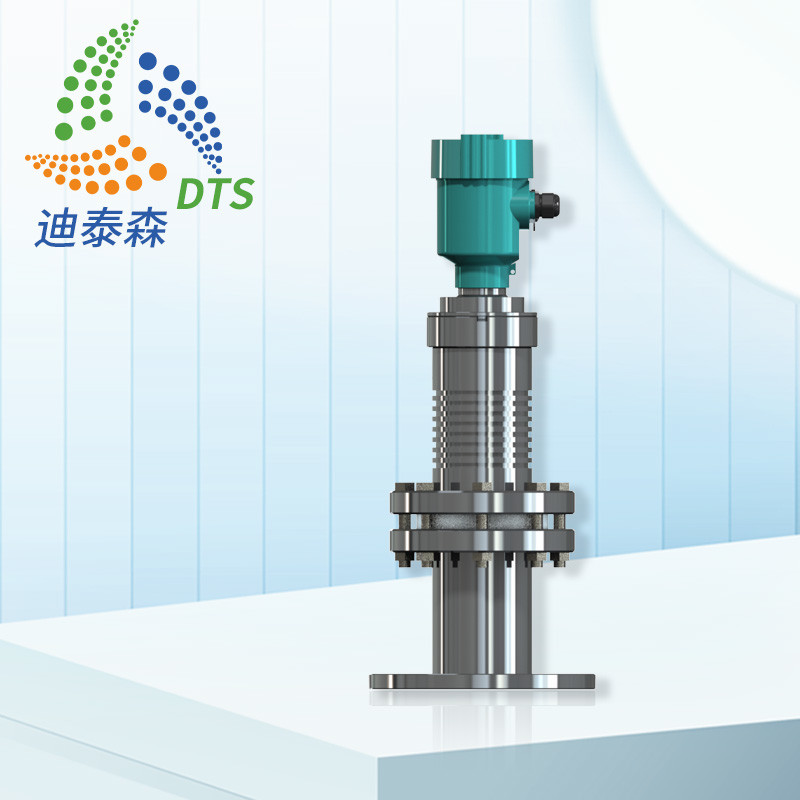

120m Non Contacting Radar Level Transmitter 1200 degree Solid Powder Dust

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-88-C
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-88-C Application High Temperature Solid High Temperature And Pressure Liquid
Measuring Range 120m Frequency 80GHz
Accuracy ±2mm Process Temperature -40℃~+1200℃
Process Pressure (-0.1~2.5)MPa Process Connection Flange From DN100
High Light

Non Contacting Radar Level Transmitter 1200 Degree

,

120m Non Contacting Radar Level Transmitter

,

non contact level transmitter Dust

Leave a Message
Product Description

120m Max 1200℃ Radar Level Transmitter Bulk Solid Powder Dust High Temperature And Pressure Liquid Sensor Meter Gauge

Product Description:

The Non Contact Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.



Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
  •
  •
  •

Technical Parameters:

Model DTS-RD-88-C
Application High temperature solid; High temperature and pressure liquid
Measuring Range 120m
Frequency 80GHz
Accuracy ±2mm
Process Temperature -40℃~+1200℃
Process pressure (-0.1~2.5)MPa
Process Connection Flange from DN10
Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Material Stainless Steel+PTFE+Quartz glass
Power Supply Two Wires DC24±6V; Four Wires AC220V


Applications:

This DTS-RD-88-C Radar Level Transmitter is applicable for high silos, segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Grain Storage, Bran, Fumed silica, Very light fly ash, Plastic powder, Dry wood chips,  Cement, Cement silo etc, all these could use DTS-RD-88-C to monitor the level.





Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
