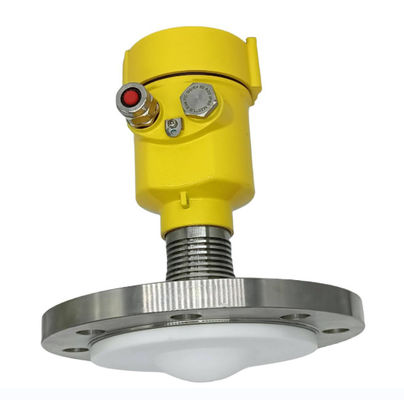

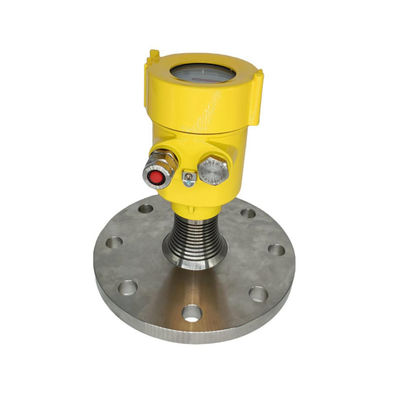

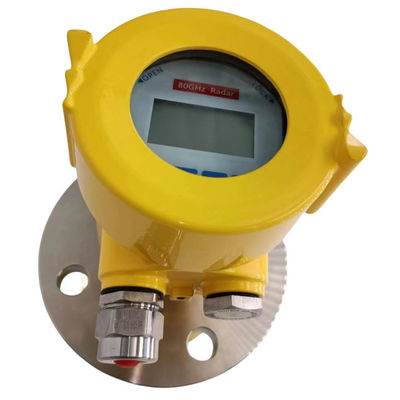

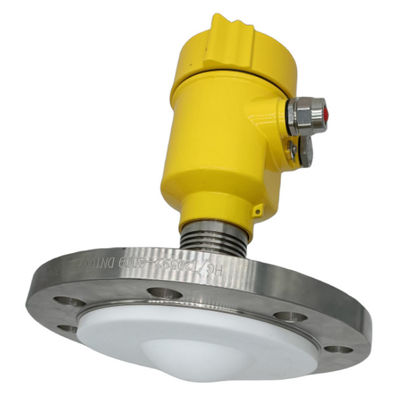

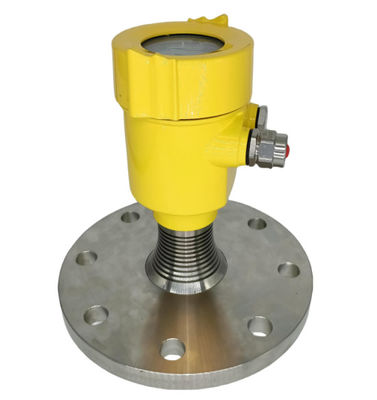

Highly Sensitive Radar Level Sensor Meter Transmitter With 1mm Resolution And 0.3-120m Range

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-88-A
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 4-20mA, RS485 Range 0.3-120m
Name Radar Level Sensor Temperature Range -40~+120℃
Resolution 1mm Material Stainless Steel//PTFE
Power Supply Two Wires DC24±6V; Four Wires AC220V Frequency 80GHz
High Light

0.3-120m Radar Level Sensor

,

Radar Level Sensor Meter Transmitter

Leave a Message
Product Description

Product Description:



Radar level measurement is a safe solution even under extreme process conditions (pressure, temperature) and vapors. Radar can also be used in hygienic applications for non-contact level measurement. Radar versions are available for different industries like for water/wastewater, the food industry, life sciences or the process industry. Various antenna versions for every kind of radar applications are available.


Radar measurement: Measuring Principle
Radar level meter works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.

Highly Sensitive Radar Level Sensor Meter Transmitter With 1mm Resolution And 0.3-120m Range 0

Features:

  • Non-contact, maintenance-free measurement

  • Unaffected by medium properties like density and conductivity, in bulk solids also unaffected by filling noise and dust

    Freely adjustable measuring range

    For high temperatures up to +1200°C



Technical Parameters:

Resolution 1mm
Power Supply Two Wires DC24±6V; Four Wires AC220V
Range 0.3-120m
Process pressure (-0.1~2.5)MPa
Temperature Range -40~+120℃
Material Stainless Steel//PTFE
Name Radar Level Sensor
Output 4-20mA, RS485
Protection Level IP67
Frequency 80GHz

Radar Level Measuring, Level Sensor Radar, Radar Liquid Measuring



Applications:

The 80G Radar Level Meter is a high-performance level transmitter specifically designed for the measurement of liquids and solids in industrial processes. With its advanced microwave level sensor technology, the 80G Radar Level Meter is ideal for level measurement in applications such as storage tanks, sewage treatment, and chemical processes, where reliable and accurate level measurement is essential. The device is also well suited for monitoring the levels of corrosive, abrasive, or viscous liquids, and it can be used for slurry or powdery solids as well. The robust design is suitable for use in harsh environments such as petrochemical plants, power plants, oil & gas refineries, and other industrial applications.



Packing&Delivery:

Highly Sensitive Radar Level Sensor Meter Transmitter With 1mm Resolution And 0.3-120m Range 1
