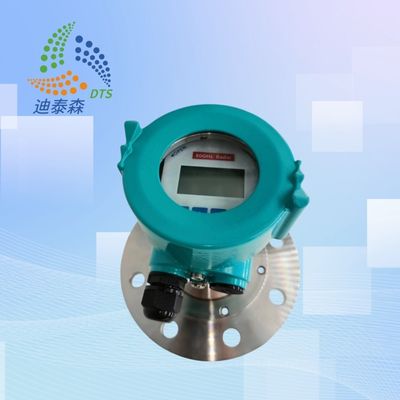

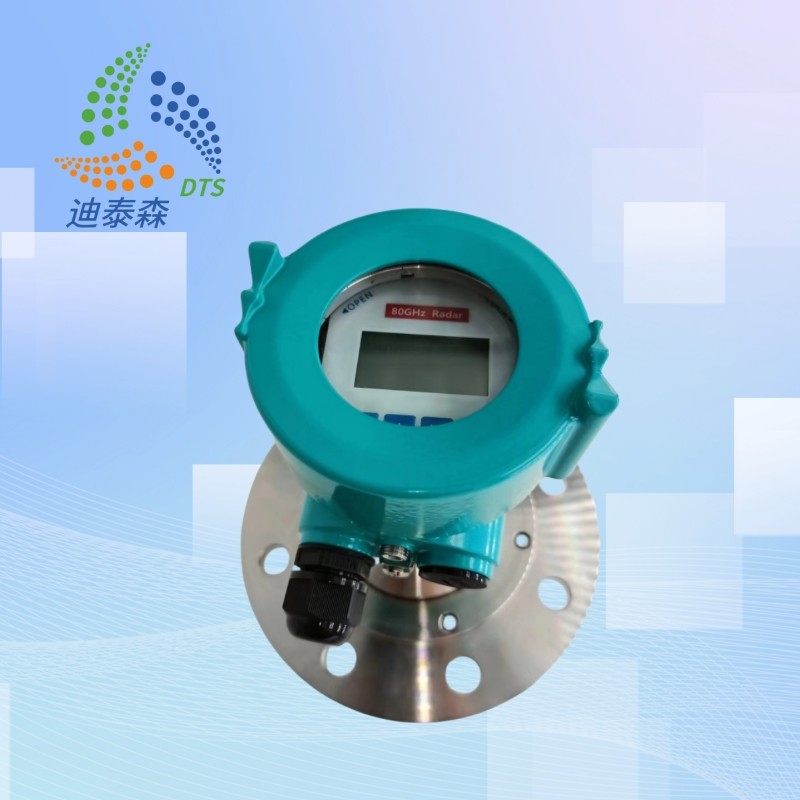

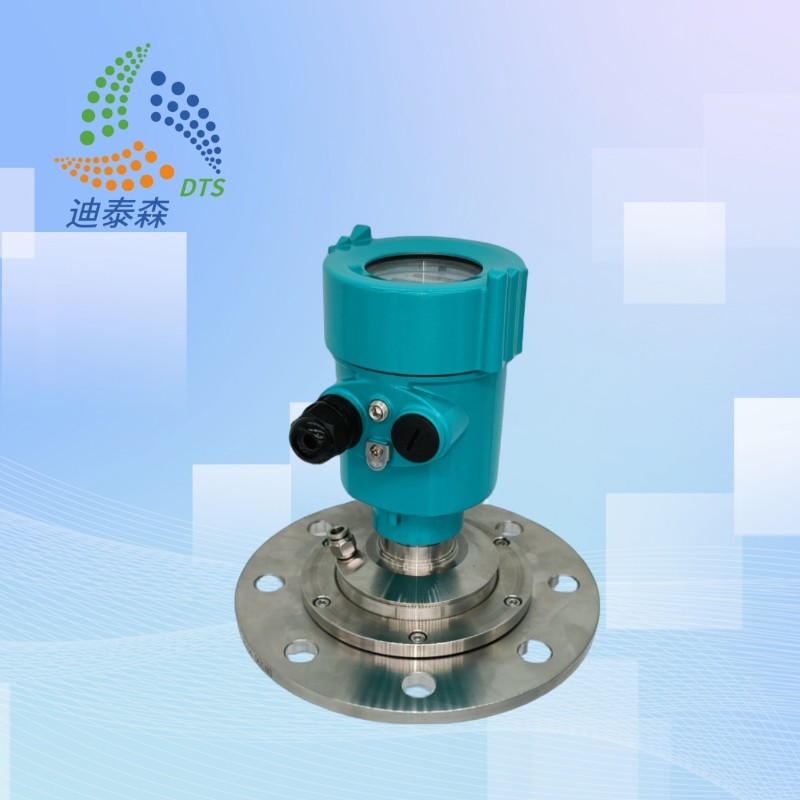

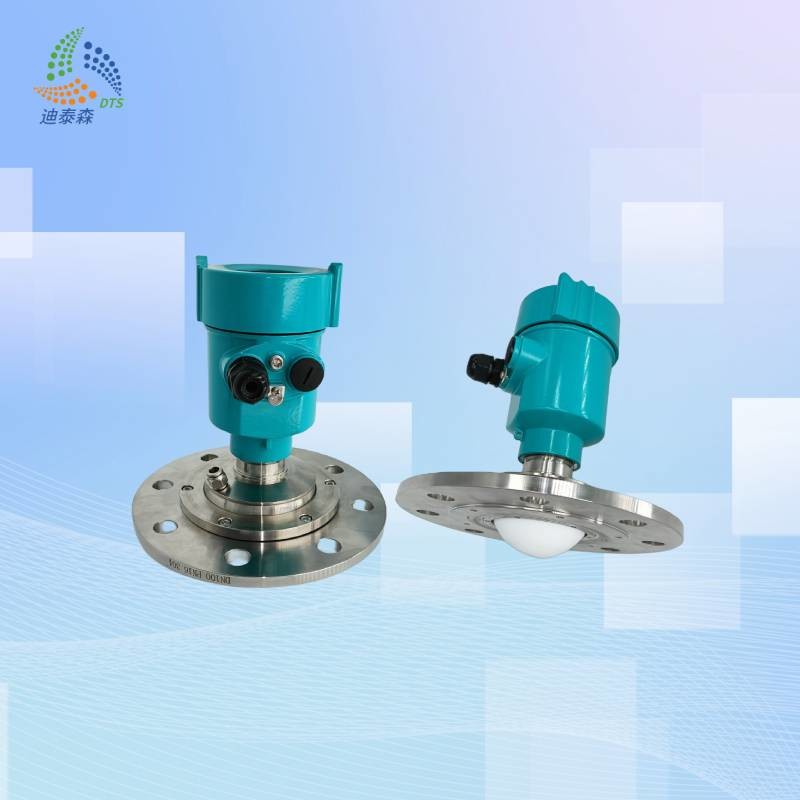

Swivelling Mounting Radar Level Sensor Meter for Solid Powder And Dust

Product Description:

The Radar Level Meter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions.With its advanced microwave level sensor technology, the 80GHz Radar Level Meter is ideal for level measurement in applications such as storage tanks, sewage treatment, and chemical processes, where reliable and accurate level measurement is essential. The device is also well suited for monitoring the levels of corrosive, abrasive, or viscous liquids, and it can be used for slurry or powdery solids as well. The robust design is suitable for use in harsh environments such as petrochemical plants, power plants, oil & gas refineries, and other industrial applications.

Radar measurement: Measuring Principle

Radar level meter works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.

Features:

• 80GHz FMCW technology
  False echo suppression option
  Narrow beam, small blind zone and accurate measurement
  Unaffected by medium properties like density and conductivity, in bulk solids also unaffected by filling noise and dust
  Freely adjustable measuring range
  Measurement under vacuum and high pressure
  Small size, easy to use, less maintenance
• Swivelling mounting,Easily adjustable (up to ±10°)
• Air purge connection or Nitrogen purge connection,efficient cleaning.
• Non-contact, maintenance-free measurement
• For high temperatures up to +1200°C

Technical Parameters:

Applications:

This DTS-RD-85-A Radar Level Transmitter is applicable for high silos, segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Grain Storage, Bran, Fumed silica, Very light fly ash, Plastic powder, Dry wood chips,  Cement, Cement silo etc, all these could use DTS-RD-85-A to monitor the level.

Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
