Easy installation Radar Level Measurement 80GHz 30m IP67 1mm Resolution

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-82
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-82 Application Corrosive Liquid Solid
Measuring Range 30m Frequency 80GHz
Accuracy ±2mm Resolution 1mm
Process Pressure (-0.1~0.1)MPa Process Temperature -40℃~+120℃
High Light

Radar Level Measurement 1mm Resolution


Easy Installation Radar Level Measurement


non contact level measurement IP67

Leave a Message
Product Description

Radar Level Sensor Meter Gauge Transmitter For Corrosive Liquid Solid 80GHz 30m IP67 1mm Resolution

Product Description:

The Non Contact Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.

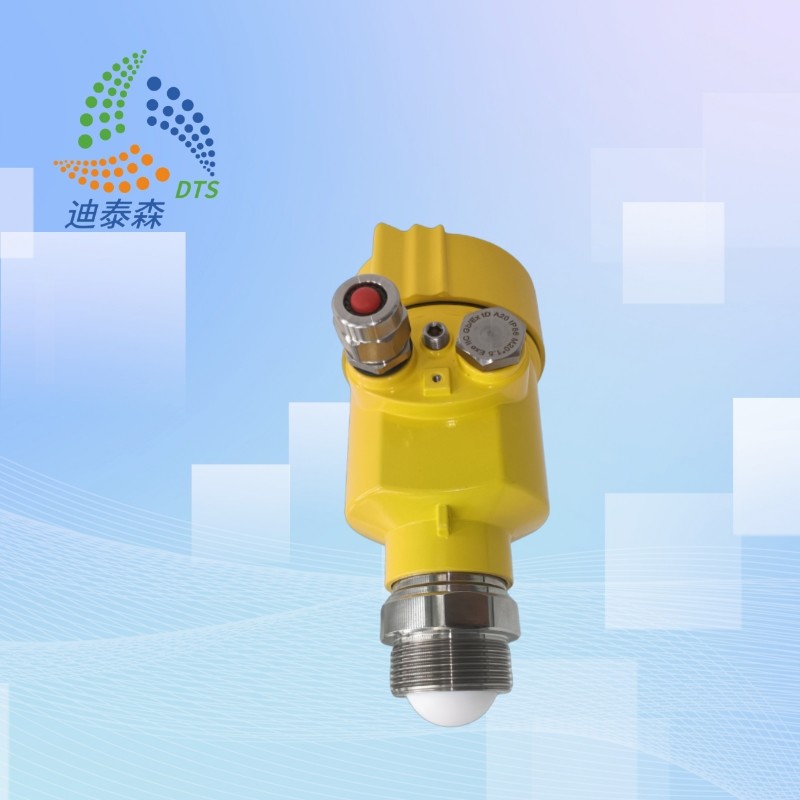

Easy installation Radar Level Measurement 80GHz 30m IP67 1mm Resolution 0


  • 1. The measurement accuracy of millimeter-wave radar can reach ± 1mm, and the measurement blind area is 50mm.
    2. Smaller antenna size, to meet the more working conditions for measurement.
    3.A variety of lens antennas, 3 emission Angle, more concentrated energy, stronger echo signal, under the same industrial and mining conditions, with higher reliability than other radar products.
    4. It is more penetrating and can be used normally in the case of adhesion and condensation.
    5.The dynamic signal range is larger and is more stable for measurements of low permittivity media.
    6.Multiple measurement modes, and the radar reaction time is less than 1S in the rapid measurement mode.

    7.The size of the antenna is small, which makes it easy to install.

    8.This non-contact radar will not cause any wear or pollution. It is almost immune to corrosion and foam and it is almost unaffected by the changes in the water vapour, temperature and pressure in the atmosphere.

    9.The beam angle is also small, concentrating the energy and thus enhancing its echo ability. As a result, it is more likely to avoid other interference objects.


Technical Parameters:

Model DTS-RD-82
Application Corrosive Liquid  Solid
Measuring Range 30m
Frequency 80GHz
Accuracy ±2mm
Resolution 1mm
Process Temperature -40℃~+120℃
Process pressure (-0.1~0.1)MPa
Process Connection Thread G1½; Flange from DN50
Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Material Stainless Steel+PTFE
Power Supply Two Wires DC24±6V; Four Wires AC220V


The 80G Radar Level Meter is an advanced microwave level sensor that has a measuring range of 0.15~30m and is equipped with a microwave level sensor. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos. This level meter is an ideal choice for industrial operations that require accurate and reliable measuring of liquid and solid levels.


Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

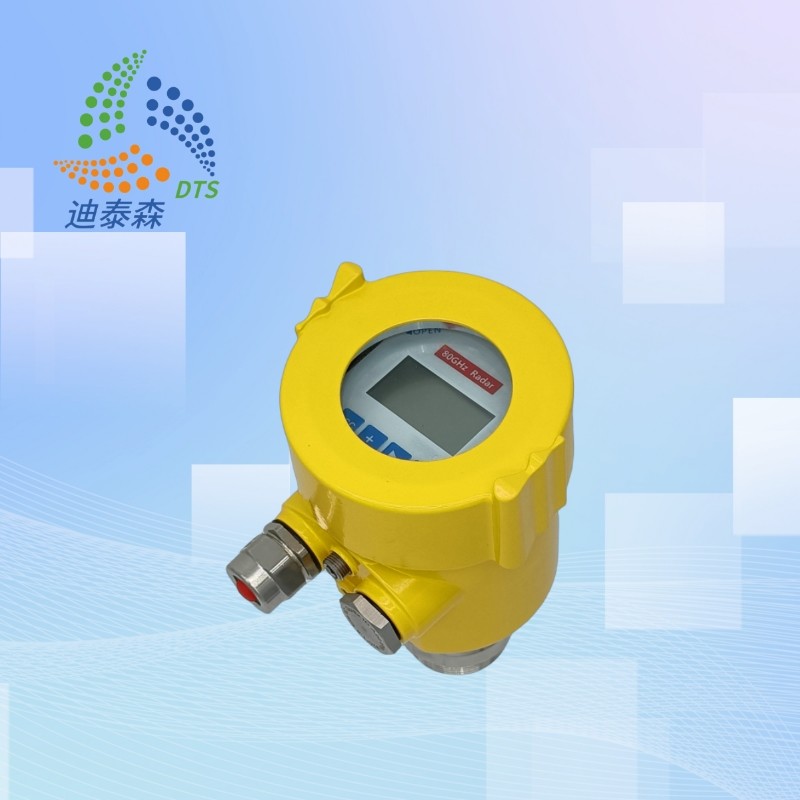

Easy installation Radar Level Measurement 80GHz 30m IP67 1mm Resolution 1
