high accuracy Tank Radar Level Transmitter For Liquids And Solids

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD Application Max 1200℃ Solid/Liquid Corrosive/Pressure Liquid With Steam And Foam
Measuring Range 120m Frequency 80GHz
Accuracy ±2mm Resolution 1mm
Process Pressure (-0.1~2.5)MPa Process Temperature -40℃~+1200℃
High Light

Tank Radar Level Transmitter Liquids


Tank Radar Level Transmitter Solids


radar transmitter Liquids

Leave a Message
Product Description

80 GHZ Radar Level Sensor Measuring Tool Tank Liquid Water Monitoring Measurement Device Cement Silo Meter

Product Description:

Radar Level Sensor is a high-performance level transmitter specifically designed for the measurement of liquids and solids in industrial processes. With its advanced microwave level sensor technology, the device is ideal for level measurement in applications such as storage tanks, sewage treatment, and chemical processes, where reliable and accurate level measurement is essential. The device is also well suited for monitoring the levels of corrosive, abrasive, or viscous liquids, and it can be used for slurry or powdery solids as well. The robust design is suitable for use in harsh environments such as petrochemical plants, power plants, oil & gas refineries, and other industrial



Radar level measurement is a safe solution even under extreme process conditions (pressure, temperature) and vapors. Radar can also be used in hygienic applications for non-contact level measurement. Radar versions are available for different industries like for water/wastewater, the food industry, life sciences or the process industry. Various antenna versions for every kind of radar applications are available.

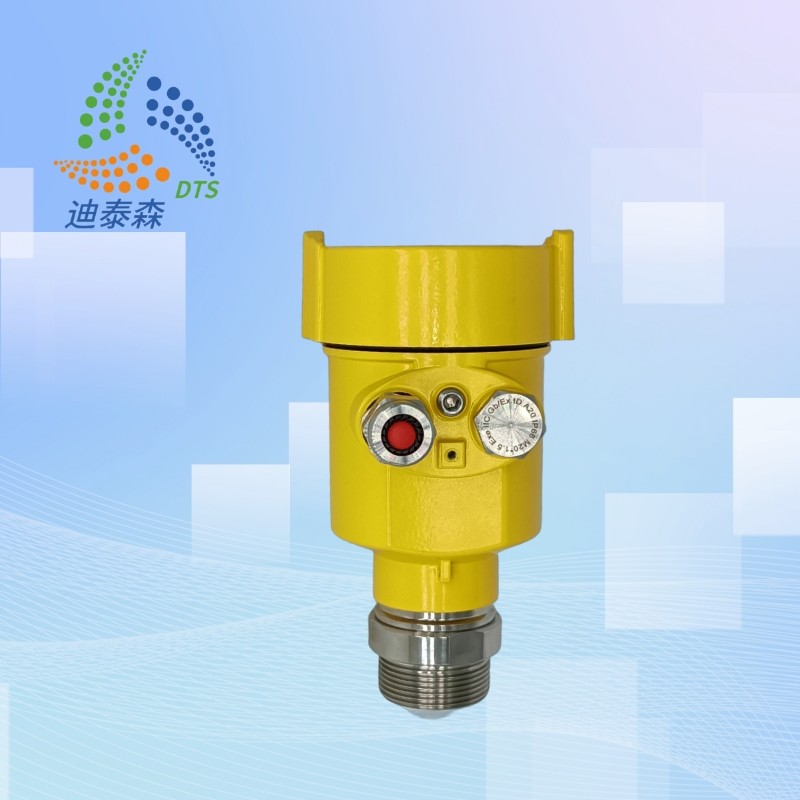

high accuracy Tank Radar Level Transmitter For Liquids And Solids 0


  • 1. The measurement accuracy of millimeter-wave radar can reach ± 1mm, and the measurement blind area is 50mm.
    2. Smaller antenna size, to meet the more working conditions for measurement.
    3.A variety of lens antennas, 3 emission Angle, more concentrated energy, stronger echo signal, under the same industrial and mining conditions, with higher reliability than other radar products.
    4. It is more penetrating and can be used normally in the case of adhesion and condensation.
    5.The dynamic signal range is larger and is more stable for measurements of low permittivity media.
    6.Multiple measurement modes, and the radar reaction time is less than 1S in the rapid measurement mode.

    7.The size of the antenna is small, which makes it easy to install.

    8.This non-contact radar will not cause any wear or pollution. It is almost immune to corrosion and foam and it is almost unaffected by the changes in the water vapour, temperature and pressure in the atmosphere.

    9.The beam angle is also small, concentrating the energy and thus enhancing its echo ability. As a result, it is more likely to avoid other interference objects.



Technical Parameters:

Model DTS-RD
Application Max 1200℃ Solid/Liquid
Corrosive/Pressure liquid with steam and foam
Measuring Range 120m
Frequency 80GHz
Accuracy ±2mm
Resolution 1mm
Process Temperature -40℃~+1200℃
Process pressure (-0.1~2.5)MPa
Process Connection Flange from DN80
Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Material Stainless Steel+PTFE
Power Supply Two Wires DC24±6V; Four Wires AC220V


The 80GHz Radar Level Transmitter is an advanced microwave level sensor that has a measuring range of 0.15~120m. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos.


Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.


high accuracy Tank Radar Level Transmitter For Liquids And Solids 1
