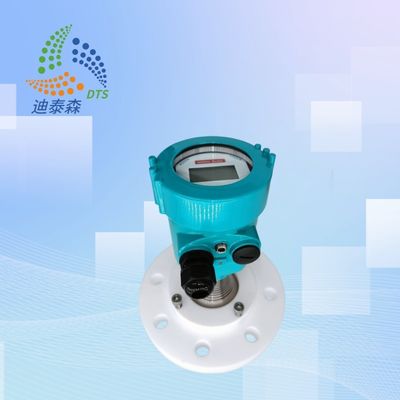

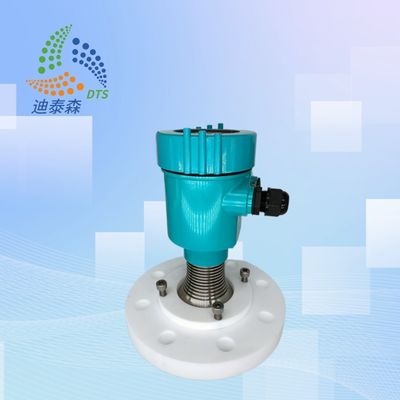

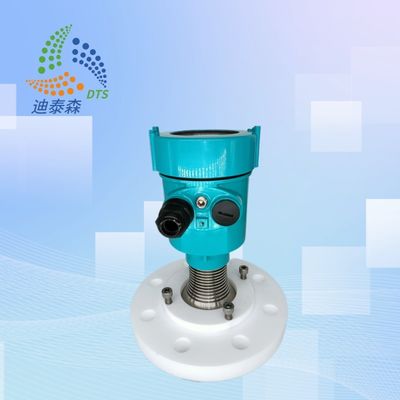

high accuracy Radar Level Gauge Meter -0.1~2.5 MPa Four Wires AC220V
| Place of Origin | China |
|---|---|
| Brand Name | DTS |
| Certification | CNEX |
| Model Number | DTS-RD-88-A |
| Minimum Order Quantity | 1 |
| Packaging Details | Carton |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | Industrial | Application | Solid/Liquid Corrosive Liquid With Steam And Foam |
|---|---|---|---|
| Measuring Range | 120m | Temperature Range | -40℃~+200℃ |
| Resolution | 1mm | Protection Level | IP67 |
| Output | RS485/MODBUS; 4…20mA/HART | Measuring Frequency | 80GHz |
| Process Connection | Flange From DN80 | Power Supply | Two Wires DC24±6V; Four Wires AC220V |
| High Light | Radar Level Gauge 2.5 MPa,High Accuracy Radar Level Gauge,Radar Level Meter AC220V |
||
Product Description
80GHz Radar Level Gauge Solid/Corrosive Liquid With Steam And Foam Max 200℃ (-0.1~2.5)MPa Meter Sensor
Product Description:
Radar Level Gauge is a reliable and precise radar level detection device which can measure and monitor the level of liquid, solid and slurry in a variety of containers. It is suitable for a wide range of applications, including chemical, petrochemical, food and beverage, and other industries.
This radar level gauge has high accuracy, anti-interference performance and strong adaptability to harsh environments, making it the ideal choice for many industries. It is reliable and easy to install and operate, and provides high-precision level monitoring and measurement. This radar level gauge is perfect for applications that require fast and accurate level detection, such as water tanks, oil tanks, and other containers.
Radar measurement: Measuring Principle
Radar level meter works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.
Features:
-
80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance
Highly chemically resistant materials ensure long service life of the sensors -
Technical Parameters:
| Parameter | Description |
|---|---|
| Resolution | 1mm |
| Process connection | Flange From DN80 |
| Output | RS485/MODBUS; 4…20mA/HART |
| Temperature Range | -40℃~+200℃ |
| Measuring Range | 0.15m~120m |
| Application | Solid/Liquid Corrosive/Pressure liquid with steam and foam Max 200℃ |
| Protection Level | IP67 |
| Power Supply | Two Wires DC24±6V; Four Wires AC220V |
| Material | Stainless Steel+PTFE |
| Process pressure | (-0.1~2.5)MPa |
Applications:
The DTS Radar Level Gauge is perfect for radar level measurement and is ideal for various applications such as water tanks, oil tanks, and other liquid tanks that require accurate and reliable level monitoring. It offers excellent precision and accuracy, allowing users to obtain accurate readings for their level monitoring needs. With its advanced technology, it provides up-to-date information and helps users save time, effort, and money.
If you are looking for a reliable, accurate, and durable radar level monitoring device, then the DTS Radar Level Gauge is the perfect choice for you. Get your own DTS Radar Level Gauge now and enjoy its superior performance and convenience.
Customization:
DTS's radar level gauge, is the perfect choice for your radar level measurement and monitoring needs. Our radar level gauge is designed with a robust construction, providing a reliable and accurate performance in all conditions. The high resolution of 1mm and measuring frequency of 80Hz make it ideal for precise level measurement in a wide variety of applications.
Take advantage of the most reliable radar level monitoring system available on the market and choose DTS's radar level gauge for your needs. With years of experience in the industry, we can provide you with the highest quality radar level indicator available.
Packing and Shipping:
Packaging and Shipping of Radar Level Gauge
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.
The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
