Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD Application Liquid Solid Powder And Dust
Measuring Range 120m Frequency 80GHz
Accuracy ±2mm Process Temperature -40℃~+1200℃
Process Pressure (-0.1~0.3)MPa Process Connection Flange From DN80
High Light

High Frequency Radar Level Gauge

,

Radar Level Gauge CNEX

,

radar tank gauge Strong Stability

Leave a Message
Product Description

Ultra-high Frequency Radar Level Meter High Precision Strong Stability 80 GHz Liquid Industrial -0.1~0.3mpa

Product Description:

Radar level measurement is a safe solution even under extreme process conditions (pressure, temperature) and vapors. Radar can also be used in hygienic applications for non-contact level measurement. Radar versions are available for different industries like for water/wastewater, the food industry, life sciences or the process industry. Various antenna versions for every kind of radar applications are available.



How it works
The general principle of FM continuous wave radar level meter is that the radar emits electromagnetic waves on the top of the tank, and the frequency difference between the received signal and the transmitted signal is 6f after the electromagnetic wave is reflected by the radar and the distance R on the surface of the medium is proportional to the relationship between R = C (speed) * 8f (frequency difference) /2/K (frequency modulation slope). Because the speed of light C and the slope K of frequency modulation are known, the distance R of the material surface of the radar installation location can be obtained by estimating the frequency difference of 8f, and then the height of the material level is obtained by subtracting the spatial distance from the radar to the material surface (referred to as air height) through the total height of the known tank.

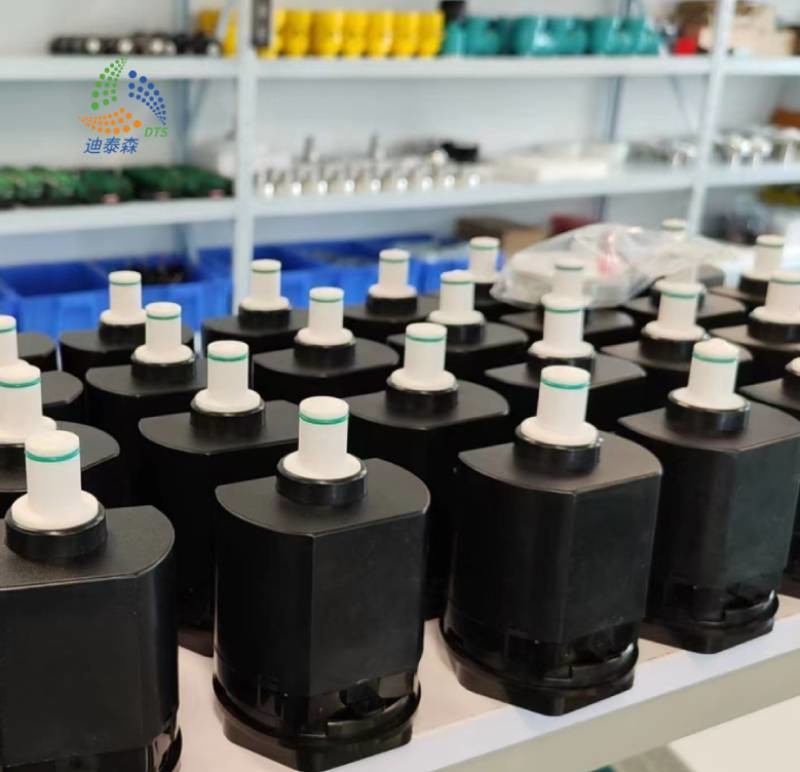

Ultra High Frequency Radar Level Gauge CNEX Strong Stability 0

Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
  • Swivelling mounting,Easily adjustable (up to ±10°)
  • Air purge connection or Nitrogen purge connection,efficient cleaning.
  •

Technical Parameters:

Model DTS-RD
Application Liquid  Bulk Solid Powder And Dust
Measuring Range 120m
Frequency 80GHz
Accuracy ±2mm
Process Temperature -40℃~+1200℃
Process pressure (-0.1~0.3)MPa
Process Connection Flange from DN80
Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G


Applications:

This DTS-RD Radar Level Transmitter is applicable for high silos, segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Grain Storage, Bran, Fumed silica, Very light fly ash, Plastic powder, Dry wood chips,  Cement, Cement silo etc, all these could use DTS-RD to monitor the level.

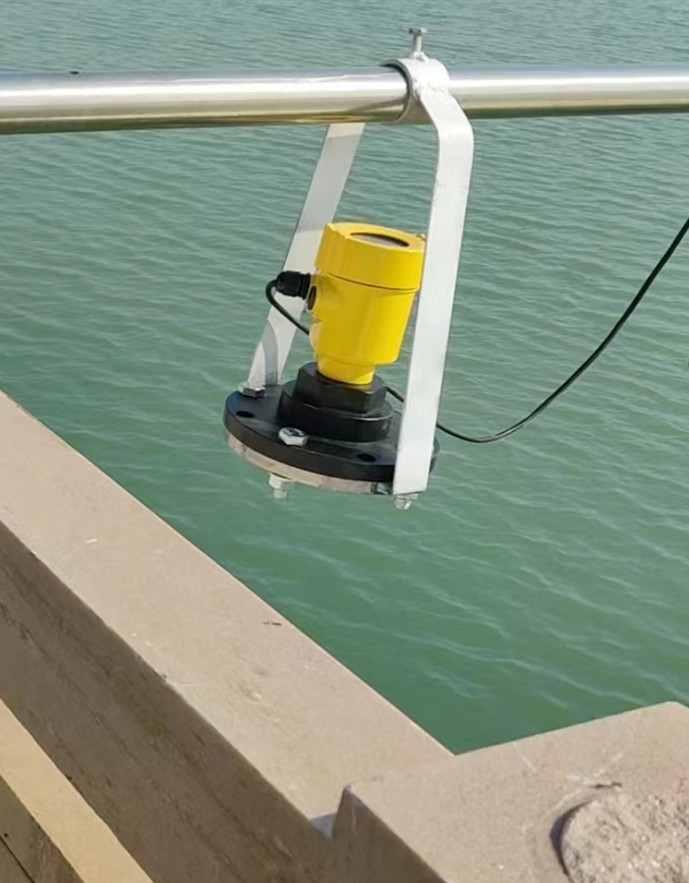

Ultra High Frequency Radar Level Gauge CNEX Strong Stability 1

Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

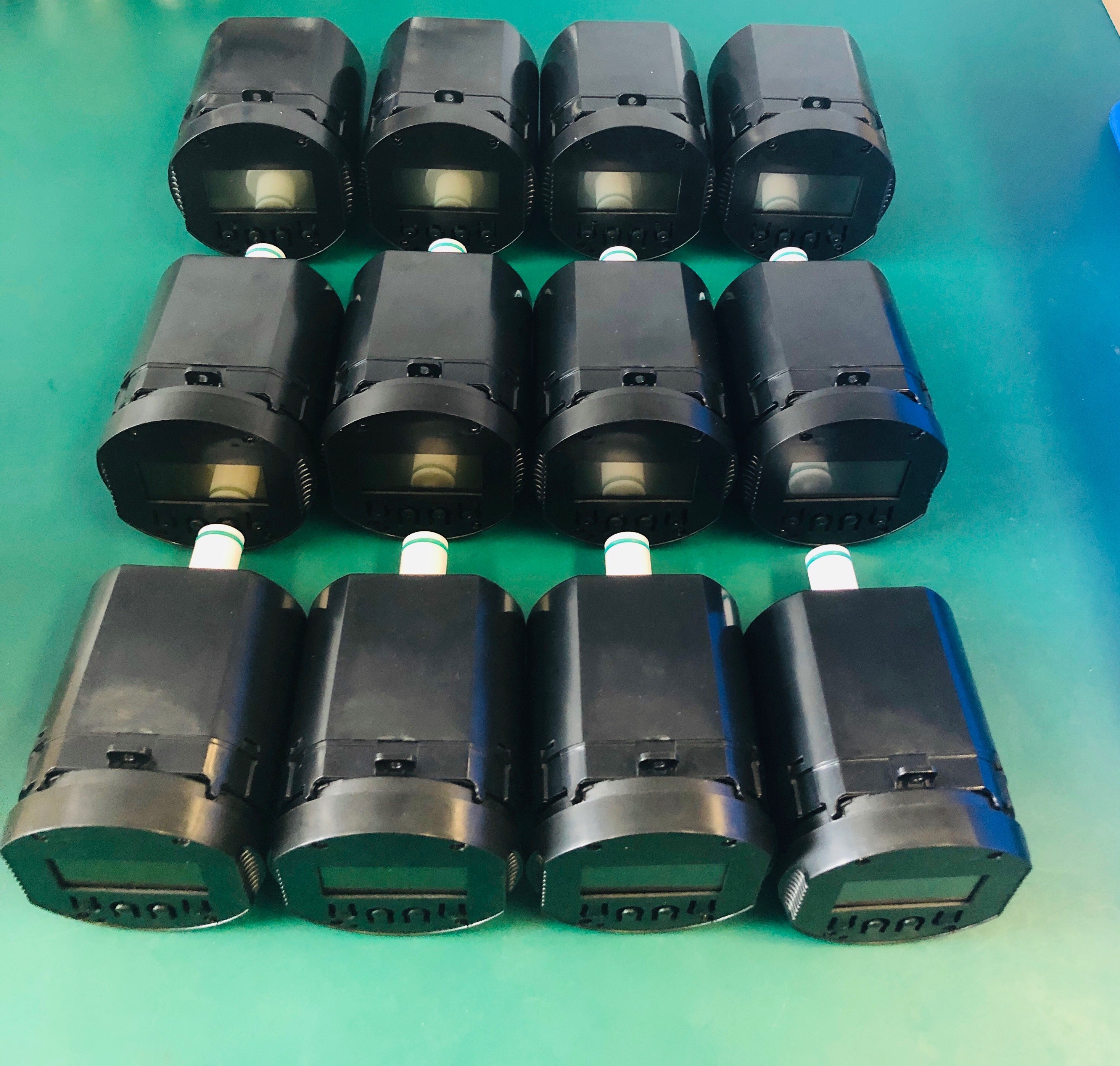

Ultra High Frequency Radar Level Gauge CNEX Strong Stability 2
