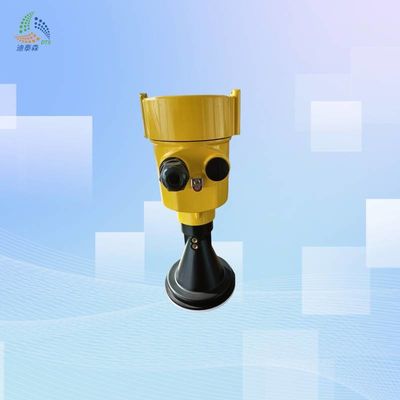

120 meter Radar Type Level Gauge Corrosive Liquid With Steam And Foam

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply Two Wires DC24±6V; Four Wires AC220V Application Solid/Liquid Corrosive Liquid With Steam And Foam
Protection Level IP67 Temperature Range -40℃~+200℃
Resolution 1mm Output RS485/MODBUS; 4…20mA/HART
Measuring Frequency 80GHz Process Connection Flange From DN80
High Light

120 Meter Radar Type Level Gauge

,

Radar Type Level Gauge Corrosive Liquid

,

Radar Tank Gauge Liquid Steam

Leave a Message
Product Description

120m Radar Level Gauge 80GHz Solid/Liquid Corrosive/Pressure Liquid With Steam And Foam Max 200℃ (-0.1~2.5)MPa

Product Description:

Radar Level Gauge is a reliable and precise radar level detection device which can measure and monitor the level of liquid, solid and slurry in a variety of containers. It is suitable for a wide range of applications, including chemical, petrochemical, food and beverage, and other industries.



The principle of the FM cCW radar bit meter is that the radar emits electromagnetic waves on the top of the tank, and the electromagnetic wave is reflected by the radar. The frequency difference δ f between the received signal and the transmitted signal is proportional to the distance R to the surface of the medium R: R= C (speed) * δ f (frequency difference) / 2 / K (frequency modulation slope). Because the light speed C and the FM slope K are known, the frequency difference δ f can be calculated to obtain the distance R between the installed position of the radar and the material surface, and then obtain the height of the material level by subtracting the spatial distance between the radar and the material surface (empty height for short) from the known total height of the tank body.

120 meter Radar Type Level Gauge Corrosive Liquid With Steam And Foam 0



Features:

  • The antenna size of the high frequency level meter is small and easy to install, which enhances its non-contact radar and eliminates any wear and pollution.



    Almost all forms of corrosion and foam barely effect this radar, and while water vapor, temperature, and pressure changes in the atmosphere may affect it, the changes are minimal.



    In dusty environments, this level meter remains unaffected and continues to use and perform its tasks.

    Additionally, the beam angle is significantly small, which makes the radar more capable of concentrating the energy it uses as well as enhancing the echo ability to better avoid interference objects.

  •

    120 meter Radar Type Level Gauge Corrosive Liquid With Steam And Foam 1



Technical Parameters:

Parameter Description
Resolution 1mm
Process connection Flange From DN80
Output RS485/MODBUS; 4…20mA/HART
Temperature Range -40℃~+200℃
Measuring Range 0.15m~120m
Application Solid/Liquid Corrosive/Pressure liquid with steam and foam Max 200℃
Protection Level IP67
Power Supply Two Wires DC24±6V; Four Wires AC220V
Material Stainless Steel+PTFE
Process pressure (-0.1~2.5)MPa


Applications:



The DTS Radar Level Gauge is perfect for radar level measurement and is ideal for various applications such as water tanks, oil tanks, and other liquid tanks that require accurate and reliable level monitoring. It offers excellent precision and accuracy, allowing users to obtain accurate readings for their level monitoring needs. With its advanced technology, it provides up-to-date information and helps users save time, effort, and money.



If you are looking for a reliable, accurate, and durable radar level monitoring device, then the DTS Radar Level Gauge is the perfect choice for you. Get your own DTS Radar Level Gauge now and enjoy its superior performance and convenience.

120 meter Radar Type Level Gauge Corrosive Liquid With Steam And Foam 2



Customization:

DTS's radar level gauge, is the perfect choice for your radar level measurement and monitoring needs. Our radar level gauge is designed with a robust construction, providing a reliable and accurate performance in all conditions. The high resolution of 1mm and measuring frequency of 80Hz make it ideal for precise level measurement in a wide variety of applications.



Take advantage of the most reliable radar level monitoring system available on the market and choose DTS's radar level gauge for your needs. With years of experience in the industry, we can provide you with the highest quality radar level indicator available.



Packing and Shipping:

Packaging and Shipping of Radar Level Gauge

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

120 meter Radar Type Level Gauge Corrosive Liquid With Steam And Foam 3
