Anti Interference Radar Level Gauge Instrument Small Antenna Size IP67 Protection

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-88-A
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Grade Industrial Application Solid/Liquid Corrosive Liquid With Steam And Foam
Measuring Range 120m Temperature Range -40℃~+200℃
Resolution 1mm Protection Level IP67
Output RS485/MODBUS; 4…20mA/HART Measuring Frequency 80GHz
Process Connection Flange From DN80 Power Supply Two Wires DC24±6V; Four Wires AC220V
High Light

Radar Level Gauge Small Antenna


Anti Interference Radar Level Gauge


radar level instrument IP67

Leave a Message
Product Description

Manufacturer 80GHz Radar Level Gauge Solid/Corrosive Liquid With Steam And Foam Max 200℃ Meter Sensor

Product Description:

Radar Level Gauge is a reliable and precise radar level detection device which can measure and monitor the level of liquid, solid and slurry in a variety of containers. It is suitable for a wide range of applications, including chemical, petrochemical, food and beverage, and other industries.


This radar level gauge has high accuracy, anti-interference performance and strong adaptability to harsh environments, making it the ideal choice for many industries. It is reliable and easy to install and operate, and provides high-precision level monitoring and measurement. This radar level gauge is perfect for applications that require fast and accurate level detection, such as water tanks, oil tanks, and other containers.


Radar measurement: Measuring Principle
Radar level meter works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.




  • 1. The measurement accuracy of millimeter-wave radar can reach ± 1mm, and the measurement blind area is 50mm.
    2. Smaller antenna size, to meet the more working conditions for measurement.
    3.A variety of lens antennas, 3 emission Angle, more concentrated energy, stronger echo signal, under the same industrial and mining conditions, with higher reliability than other radar products.
    4. It is more penetrating and can be used normally in the case of adhesion and condensation.
    5.The dynamic signal range is larger and is more stable for measurements of low permittivity media.
    6. Multiple measurement modes, and the radar reaction time is less than 1S in the rapid measurement mode.

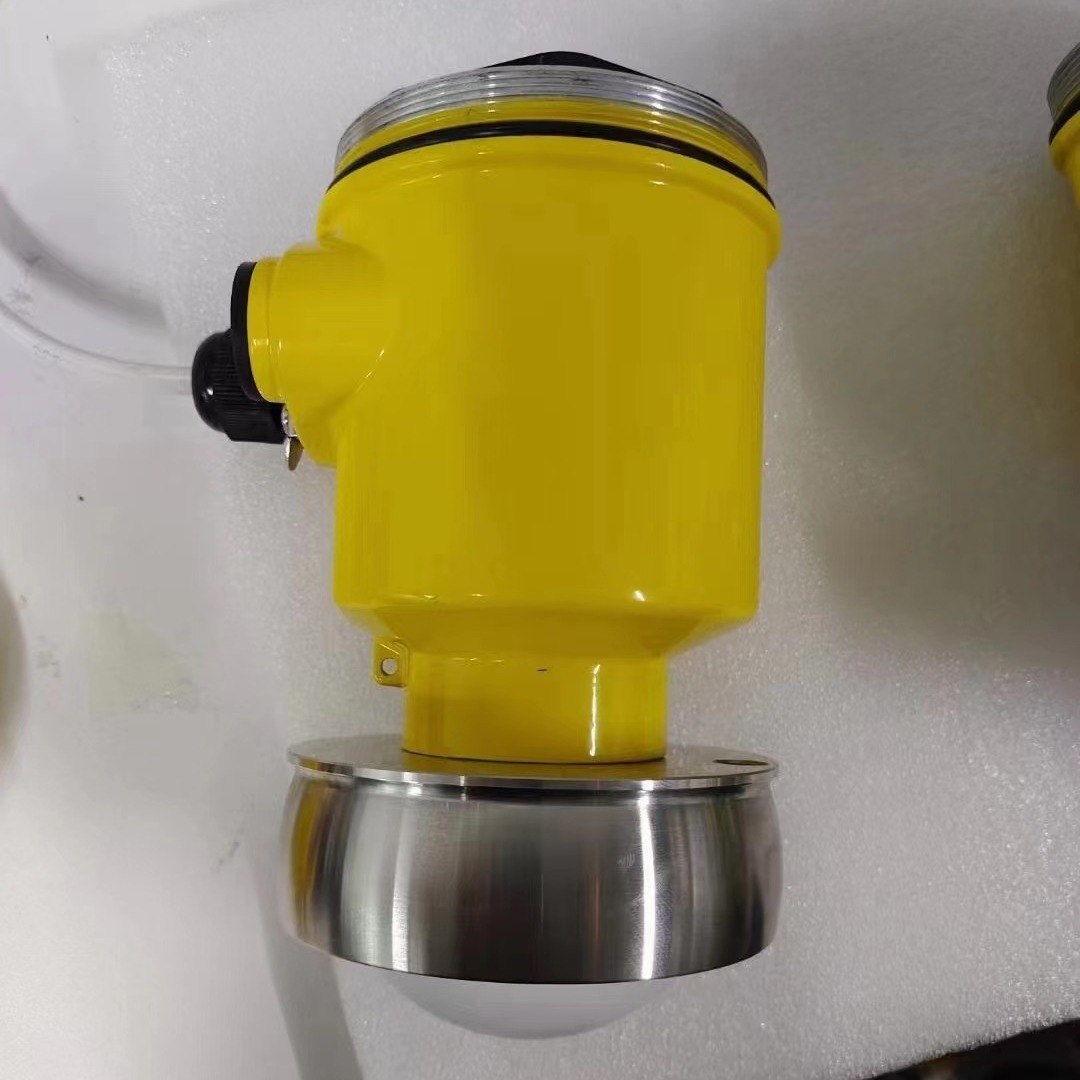

    Anti Interference Radar Level Gauge Instrument Small Antenna Size IP67 Protection 0


Technical Parameters:

Parameter Description
Resolution 1mm
Process connection Flange From DN80
Output RS485/MODBUS; 4…20mA/HART
Temperature Range -40℃~+200℃
Measuring Range 0.15m~120m
Application Solid/Liquid Corrosive/Pressure liquid with steam and foam Max 200℃
Protection Level IP67
Power Supply Two Wires DC24±6V; Four Wires AC220V
Material Stainless Steel+PTFE
Process pressure (-0.1~2.5)MPa



The DTS Radar Level Gauge is perfect for radar level measurement and is ideal for various applications such as water tanks, oil tanks, and other liquid tanks that require accurate and reliable level monitoring. It offers excellent precision and accuracy, allowing users to obtain accurate readings for their level monitoring needs. With its advanced technology, it provides up-to-date information and helps users save time, effort, and money.


If you are looking for a reliable, accurate, and durable radar level monitoring device, then the DTS Radar Level Gauge is the perfect choice for you. Get your own DTS Radar Level Gauge now and enjoy its superior performance and convenience.



DTS's radar level gauge, is the perfect choice for your radar level measurement and monitoring needs. Our radar level gauge is designed with a robust construction, providing a reliable and accurate performance in all conditions. The high resolution of 1mm and measuring frequency of 80Hz make it ideal for precise level measurement in a wide variety of applications.


Take advantage of the most reliable radar level monitoring system available on the market and choose DTS's radar level gauge for your needs. With years of experience in the industry, we can provide you with the highest quality radar level indicator available.


Packing and Shipping:

Packaging and Shipping of Radar Level Gauge

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

Anti Interference Radar Level Gauge Instrument Small Antenna Size IP67 Protection 1
