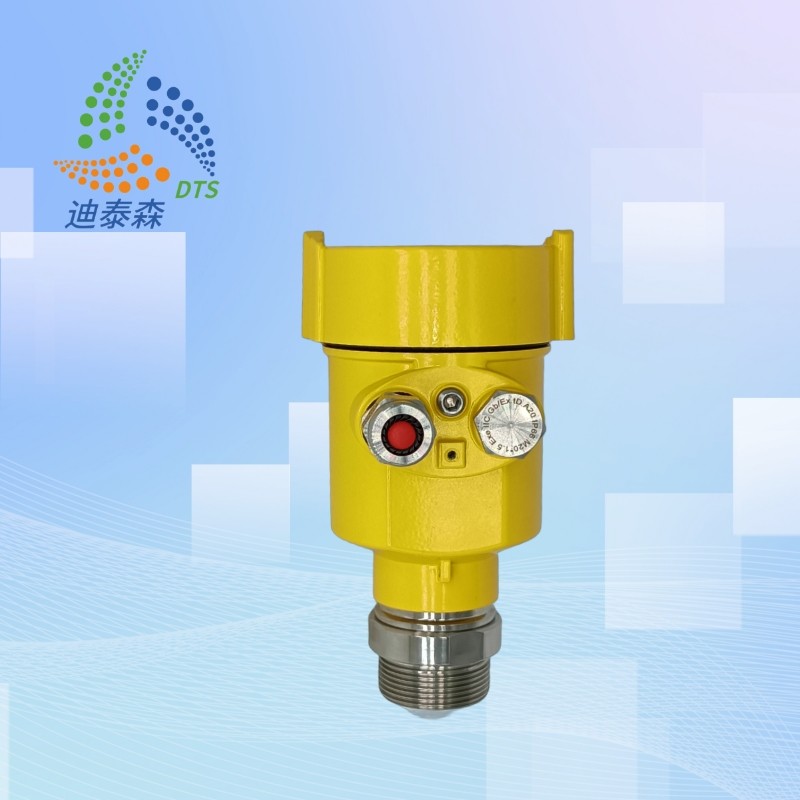

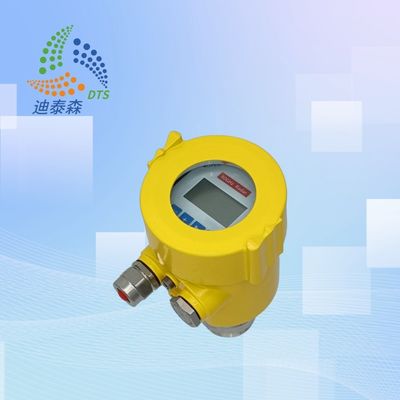

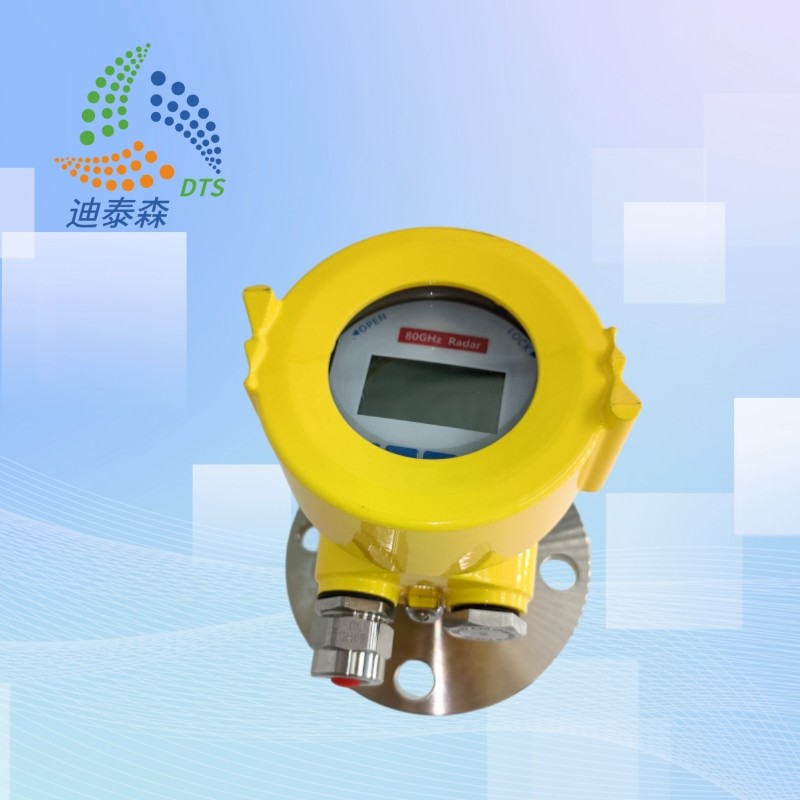

FMCW radar Water Tank Depth Gauge With Distance Range 30-120m 80GHz

  • FMCW radar Water Tank Depth Gauge With Distance Range 30-120m 80GHz
  • FMCW radar Water Tank Depth Gauge With Distance Range 30-120m 80GHz
  • FMCW radar Water Tank Depth Gauge With Distance Range 30-120m 80GHz
  • FMCW radar Water Tank Depth Gauge With Distance Range 30-120m 80GHz
Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-82
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Liquid Solid Measuring Frequency 80GHz
Measuring Range 30m-120m Customized Support OEM, ODM
Accuracy ±1mm Output RS485/MODBUS; 4…20mA/HART
Power Supply Two Wires DC24±6V; Four Wires AC220V Process Pressure （-0.1~0.1）MPa
Temperature Range -40℃~+120℃ Protection Level IP67
High Light

Water Tank Depth Gauge 120m

,

Water Tank Depth Gauge 80GHz

,

FMCW Radar water tank gauge
Leave a Message
Product Description

Radar Level Gauge For Liquid Solid With Distance Range 30-120m 80GHz Radar Level Meter Sensor Transmitter

Product Description:

76-81GHz FM wave FMCW radar product (also called millimeter wave radar), because it uses a millimeter wave band with a higher frequency than Ku-band radar, it can achieve long-distance imaging and multi-spectral imaging in remote target detection and strong smoke and dust environments. It has important applications, and can detect smaller targets than microwave radar and achieve more precise positioning, with higher resolution and stronger confidentiality.

FMCW radar Water Tank Depth Gauge With Distance Range 30-120m 80GHz 0

Features:

The antenna size of the high frequency level meter is small and easy to install, which enhances its non-contact radar and eliminates any wear and pollution.



Almost all forms of corrosion and foam barely effect this radar, and while water vapor, temperature, and pressure changes in the atmosphere may affect it, the changes are minimal.



In dusty environments, this level meter remains unaffected and continues to use and perform its tasks.

Additionally, the beam angle is significantly small, which makes the radar more capable of concentrating the energy it uses as well as enhancing the echo ability to better avoid interference objects.

Applications:

The 80G Radar Level Meter is a high-performance level transmitter specifically designed for the measurement of liquids and solids in industrial processes. With its advanced microwave level sensor technology, the 80G Radar Level Meter is ideal for level measurement in applications such as storage tanks, sewage treatment, and chemical processes, where reliable and accurate level measurement is essential. The device is also well suited for monitoring the levels of corrosive, abrasive, or viscous liquids, and it can be used for slurry or powdery solids as well. The robust design is suitable for use in harsh environments such as petrochemical plants, power plants, oil & gas refineries, and other industrial applications.







Technical Parameters:

Parameter Value
Application Liquid Solid
Accuracy ±1mm
Measuring Frequency 80GHz
Measuring range 30m
Connection Bluetooth/NB-iot/4G
Process connection Thread G1½

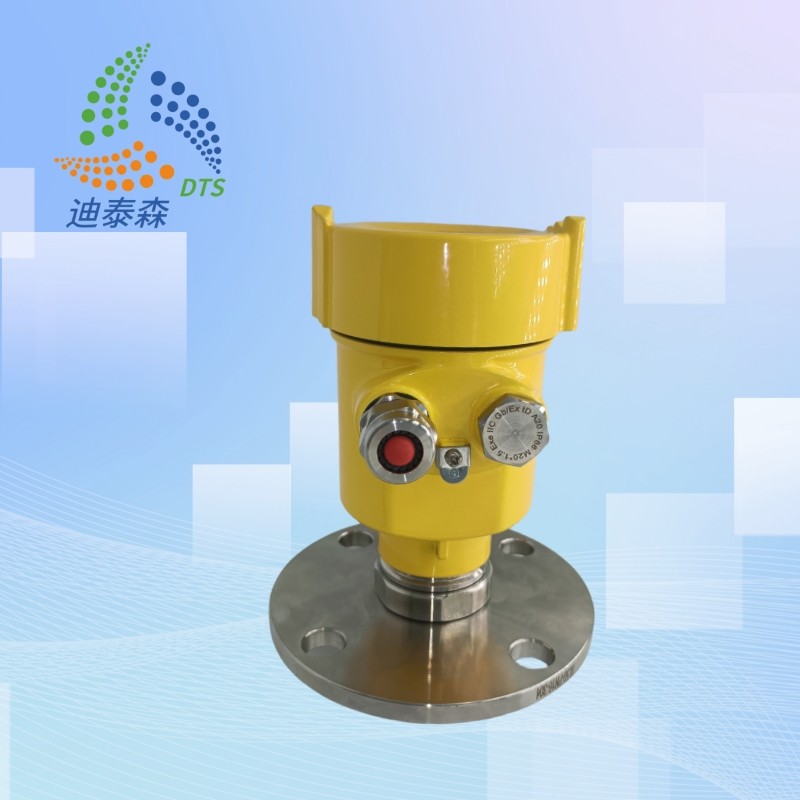

Flange from DN50
Working Temperature -40~120℃
Power Supply Two wires DC24±6V; Four wires AC220V
Data Storage Yes
Protection Grade IP67
Process pressure (-0.1~0.1)MPa

Packing and Shipping:

  • The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

    Length: 40 cm
    Width: 30 cm
    Height: 30 cm


    The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

FAQ:

  • Q: What is the 80G Radar Level Meter?
    A: The 80G Radar Level Meter is a device that uses radar-based measurement technology to measure the level of liquid in a tank or reservoir.
  • Q: What type of technology does the 80G Radar Level Meter use?
    A: The 80G Radar Level Meter uses radar measurement technology to accurately measure the level of liquid in a tank or reservoir.
  • Q: What are the advantages of using the 80G Radar Level Meter?
    A: The 80G Radar Level Meter is highly accurate and reliable, and can measure levels in tanks and reservoirs with high accuracy and precision.
  • Q: How easy is the 80G Radar Level Meter to install?
    A: The 80G Radar Level Meter is easy to install and requires minimal setup and configuration.
  • Q: What is the range of the 80G Radar Level Meter?
    A: The 80G Radar Level Meter has a range of up to120 meters.
