30-120m 80 Ghz Radar Level Sensor High Precision Small Size Industrial Grade

  • 30-120m 80 Ghz Radar Level Sensor High Precision Small Size Industrial Grade
  • 30-120m 80 Ghz Radar Level Sensor High Precision Small Size Industrial Grade
  • 30-120m 80 Ghz Radar Level Sensor High Precision Small Size Industrial Grade
Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-83-A
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-83-A Application Corrosive And Pressured Liquid
Measuring Range 30m Frequency 80GHz
Accuracy ±2mm Resolution 1mm
Process Pressure （-0.1~2.5）MPa Process Temperature -40℃~+120℃
Highlight

30-120m Radar Level Sensor

,

Radar Level Sensor Small Size

,

80 ghz radar Industrial Grade
Leave a Message
Product Description

30-120m Corrosive And Pressured Liquid Radar Level Sensor High Precision 80GHz Radar Level Meter Gauge

Company Introduction:

Beijing DTS focuses on 80G radar level products, has been insisting on exploration and research in the level field, and has accumulated a lot of experience in the application of radar level meters in different industries.

Product Description:

The Radar Level Sensor DTS-RD-83 can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.

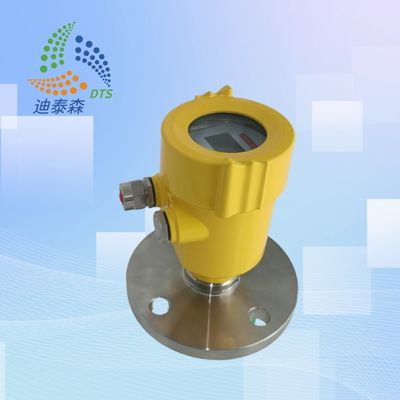

30-120m 80 Ghz Radar Level Sensor High Precision Small Size Industrial Grade 0



Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
  •
  •
  •

Technical Parameters:

Model DTS-RD-83-A
Application Corrosive and Pressured Liquid
Measuring Range 30m
Frequency 80GHz
Accuracy ±2mm
Resolution 1mm
Process Temperature -40℃~+120℃
Process pressure (-0.1~2.5)MPa
Process Connection Flange from DN50

Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Material Stainless Steel+PTFE
Power Supply Two Wires DC24±6V; Four Wires AC220V


Applications:

The 80G Radar Level Transmitter is an advanced microwave level sensor that has a measuring range of 0.15~max 120m. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos.



Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.



30-120m 80 Ghz Radar Level Sensor High Precision Small Size Industrial Grade 1
