80GHz FMCW Radar Level Sensor 120m Non Contact Type Level Measurement

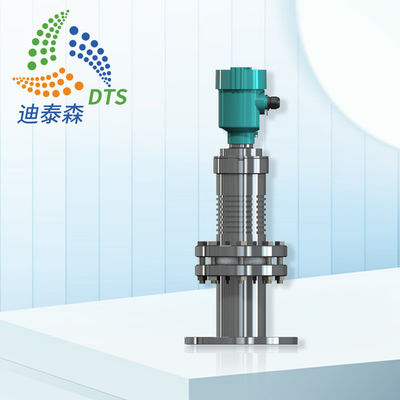

  • 80GHz FMCW Radar Level Sensor 120m Non Contact Type Level Measurement

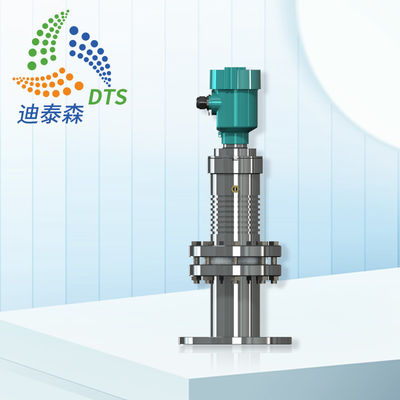

  • 80GHz FMCW Radar Level Sensor 120m Non Contact Type Level Measurement

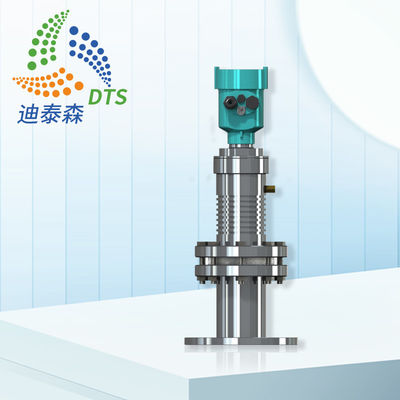

  • 80GHz FMCW Radar Level Sensor 120m Non Contact Type Level Measurement
Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-88-C
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-88-C Application High Temperature Solid High Temperature And Pressure Liquid
Measuring Range 120m Frequency 80GHz
Accuracy ±2mm Process Temperature -40℃~+1200℃
Process Pressure （-0.1~2.5）MPa Process Connection Flange From DN100
High Light

FMCW Radar Level Sensor

,

Radar Level Sensor Measurement

,

120m Non Contact Type Level Measurement
Leave a Message
Product Description

120m Max 1200℃ 80GHz Radar Level Sensor Bulk Solid Powder Dust Pressure Liquid Meter Gauge Transmitter 1mm Resolution

Product Description:

The DTS-RD-88-C 80GHz Radar Level Sensor is a high-performance level transmitter specifically designed for the measurement of liquids and solids in industrial processes. With its advanced microwave level sensor technology, the 80G Radar Level Sensor is ideal for level measurement in applications such as storage tanks, sewage treatment, and chemical processes, where reliable and accurate level measurement is essential. The device is also well suited for monitoring the levels of corrosive, abrasive, or viscous liquids, and it can be used for slurry or powdery solids as well. The robust design is suitable for use in harsh environments such as petrochemical plants, power plants, oil & gas refineries, and other industrial applications.

80GHz FMCW Radar Level Sensor 120m Non Contact Type Level Measurement 0



Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
  •
  • 80GHz FMCW Radar Level Sensor 120m Non Contact Type Level Measurement 1
  •

Technical Parameters:

Model DTS-RD-88-C
Application High temperature solid; High temperature and pressure liquid
Measuring Range 120m
Frequency 80GHz
Accuracy ±2mm
Process Temperature -40℃~+1200℃
Process pressure (-0.1~2.5)MPa
Process Connection Flange from DN10
Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Material Stainless Steel+PTFE+Quartz glass
Power Supply Two Wires DC24±6V; Four Wires AC220V


Applications:

This DTS-RD-88-C Radar Level Transmitter is applicable for high silos, segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Grain Storage, Bran, Fumed silica, Very light fly ash, Plastic powder, Dry wood chips,  Cement, Cement silo etc, all these could use DTS-RD-88-C to monitor the level.





Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.



80GHz FMCW Radar Level Sensor 120m Non Contact Type Level Measurement 2
