Sewage Treatment Radar Level Sensor 120m Max High Performance

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-88-A
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-88-A Application Max 200℃ Solid/Liquid Corrosive/Pressure Liquid With Steam And Foam
Measuring Range 120m Frequency 80GHz
Accuracy ±2mm Resolution 1mm
Process Pressure (-0.1~2.5)MPa Process Temperature -40℃~+200℃
High Light

Radar Level Sensor 120m Max

,

Sewage Treatment Radar Level Sensor

Leave a Message
Product Description

Radar Level Sensor High Precision 80GHz Level Meter Gauge For Corressive Pressured Liquid 120m Max 200℃

Product Description:

Radar Level Sensor is a high-performance level transmitter specifically designed for the measurement of liquids and solids in industrial processes. With its advanced microwave level sensor technology, the device is ideal for level measurement in applications such as storage tanks, sewage treatment, and chemical processes, where reliable and accurate level measurement is essential. The device is also well suited for monitoring the levels of corrosive, abrasive, or viscous liquids, and it can be used for slurry or powdery solids as well. The robust design is suitable for use in harsh environments such as petrochemical plants, power plants, oil & gas refineries, and other industrial applications.

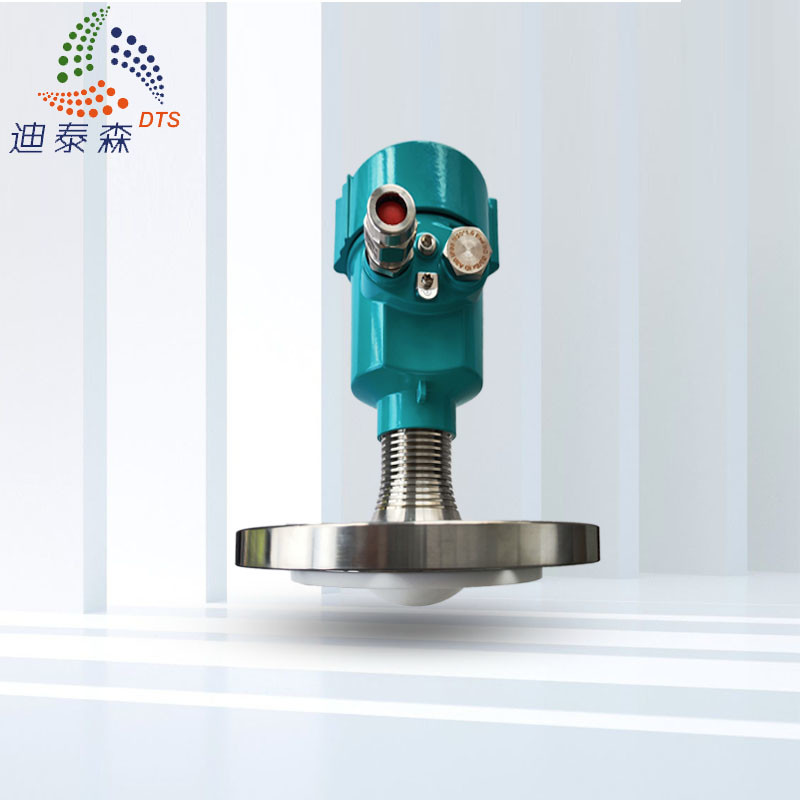

Sewage Treatment Radar Level Sensor 120m Max High Performance 0

Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
  •
  •
  •

Technical Parameters:

Model DTS-RD-88-A
Application Max 200℃ Solid/Liquid
Corrosive/Pressure liquid with steam and foam
Measuring Range 120m
Frequency 80GHz
Accuracy ±2mm
Resolution 1mm
Process Temperature -40℃~+200℃
Process pressure (-0.1~2.5)MPa
Process Connection Flange from DN80

Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Material Stainless Steel+PTFE
Power Supply Two Wires DC24±6V; Four Wires AC220V


Applications:

The 80GHz Radar Level Transmitter is an advanced microwave level sensor that has a measuring range of 0.15~120m. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos.

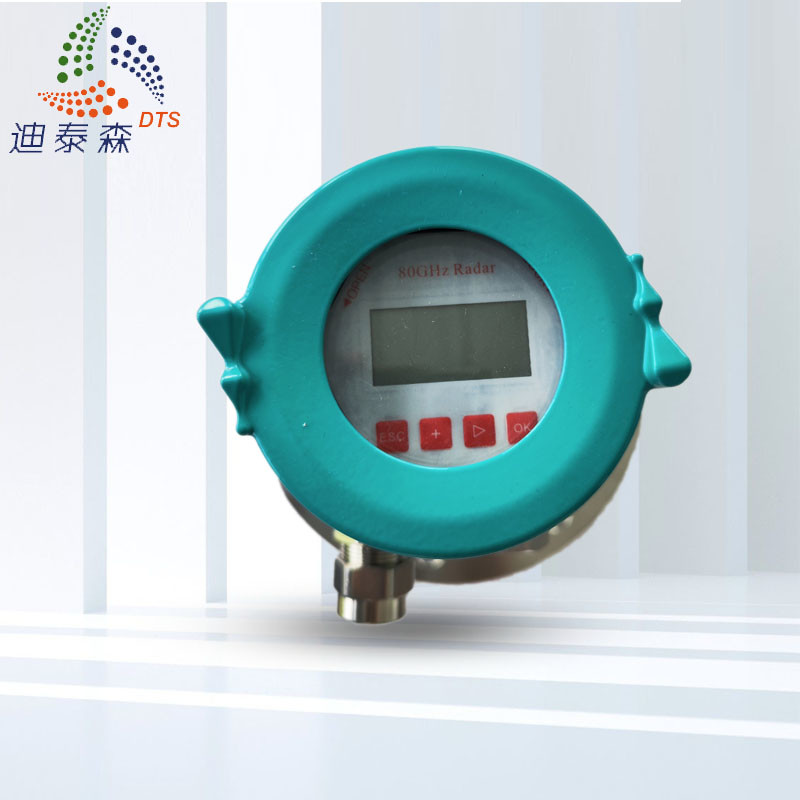

Sewage Treatment Radar Level Sensor 120m Max High Performance 1

Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

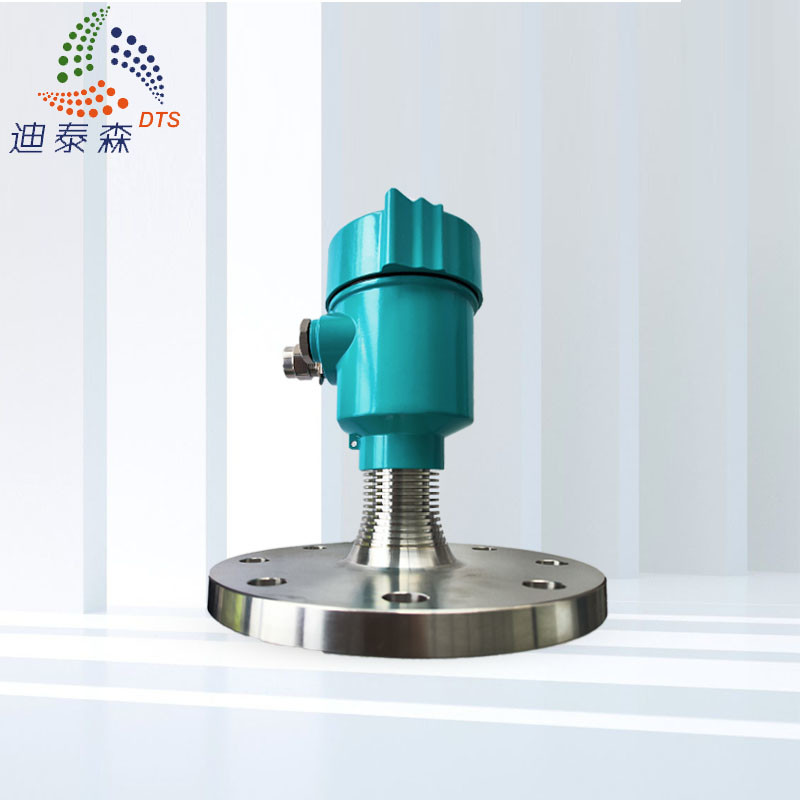

Sewage Treatment Radar Level Sensor 120m Max High Performance 2
