80GHz Radar Gauge For Level Measurement high precision 1mm Resolution

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-86-A
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-86-A Application Solid/Liquid Corrosive Liquid With Steam And Foam
Measuring Range 120m Frequency 80GHz
Accuracy ±2mm Resolution 1mm
Process Pressure -0.1~0.1)MPa Process Temperature -40℃~+120℃
Highlight

Radar Gauge For Level Measurement 1mm

,

80GHz Radar Gauge For Level Measurement

,

radar level gauge High Precision

Leave a Message
Product Description

120m Radar Level Sensor For Solid And Liquid 80GHz Radar Level Meter Gauge Transmitter 1mm Resolution

Product Description:

The Non Contact Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.

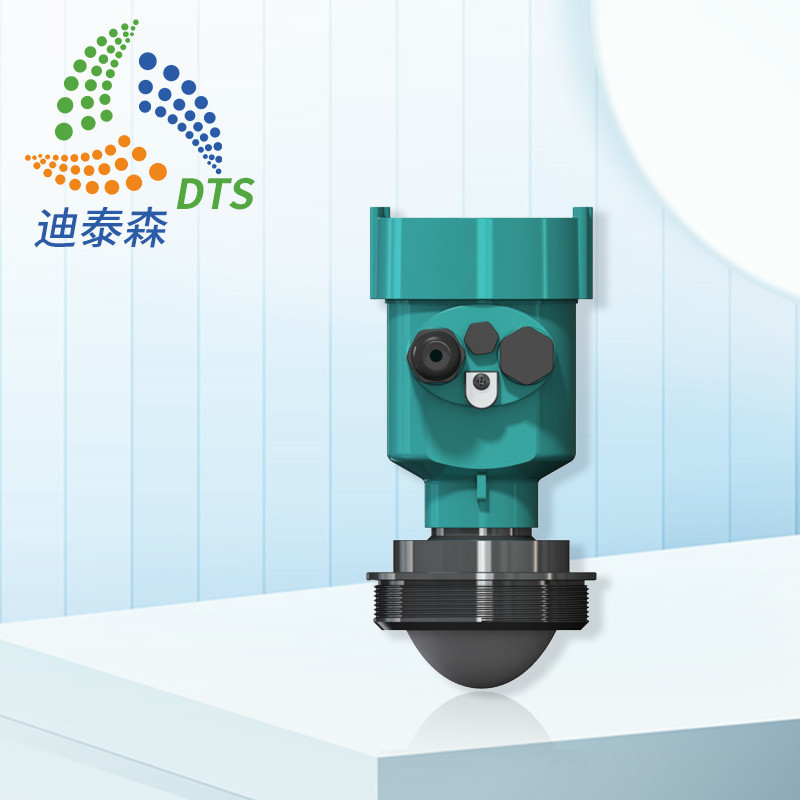

80GHz Radar Gauge For Level Measurement high precision 1mm Resolution 0



Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
  •
  •
  •

Technical Parameters:

Model DTS-RD-86-A
Application Solid/Liquid
Corrosive liquid with steam and foam
Measuring Range 120m
Frequency 80GHz
Accuracy ±2mm
Resolution 1mm
Process Temperature -40℃~+120℃
Process pressure (-0.1~0.1)MPa
Process Connection Flange from DN80

Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Material Stainless Steel+PTFE
Power Supply Two Wires DC24±6V; Four Wires AC220V


Applications:

The 80GHz Radar Level Transmitter is an advanced microwave level sensor that has a measuring range of 0.15~120m. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos.

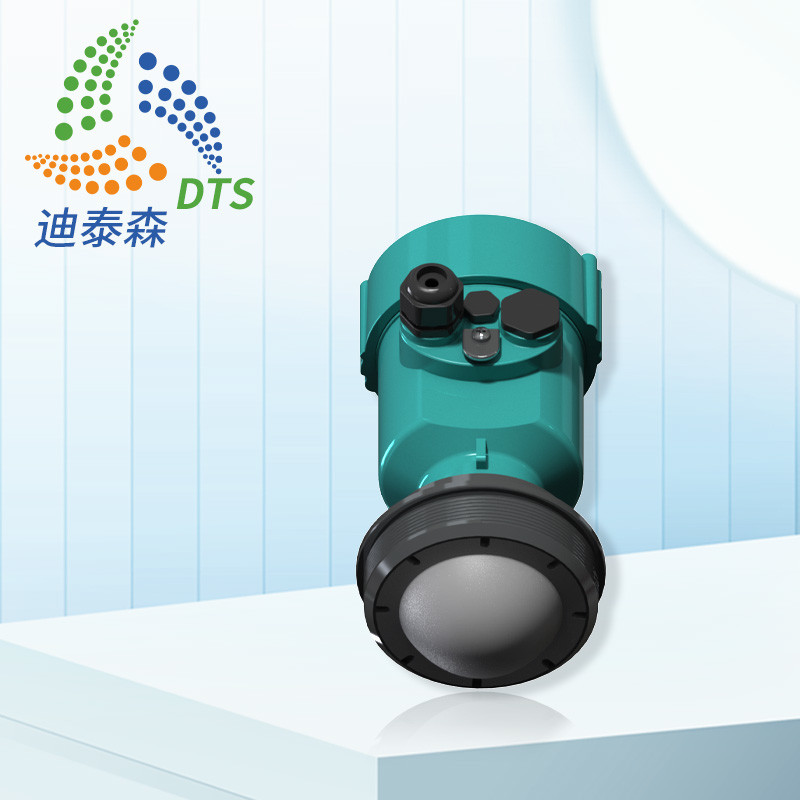

80GHz Radar Gauge For Level Measurement high precision 1mm Resolution 1

Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

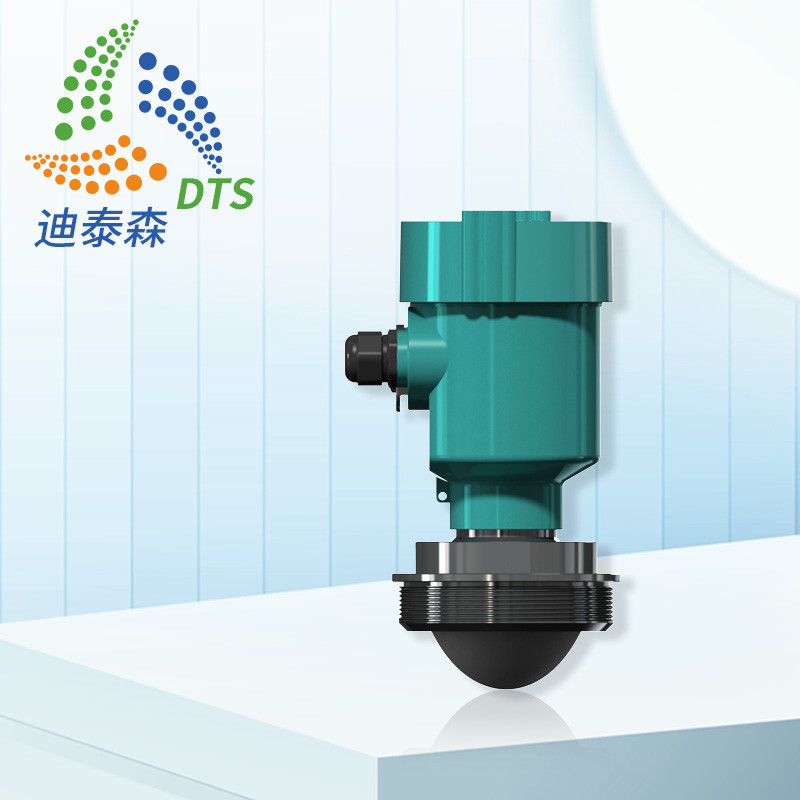

80GHz Radar Gauge For Level Measurement high precision 1mm Resolution 2
