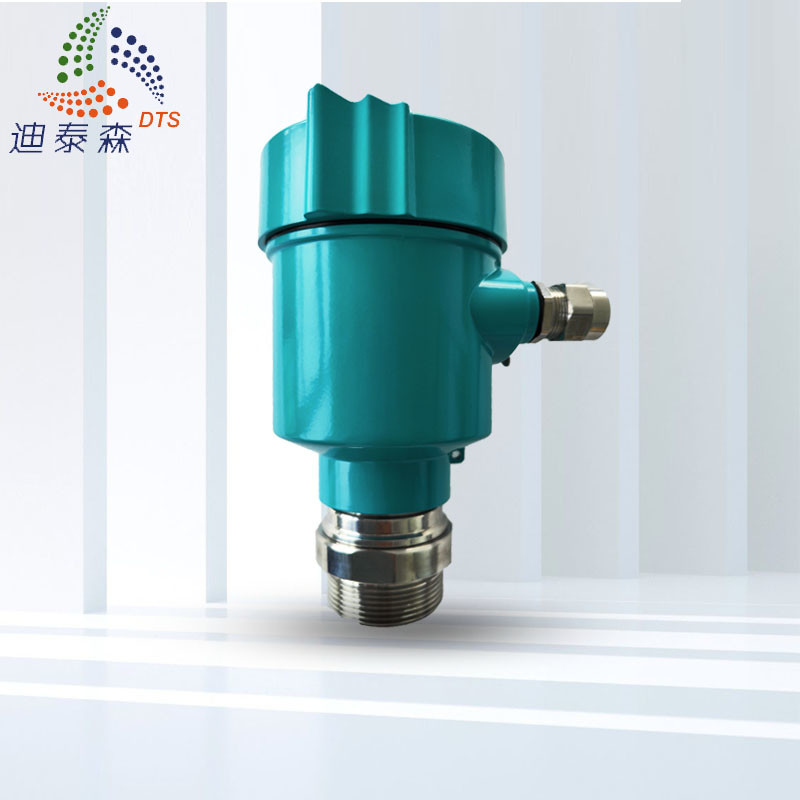

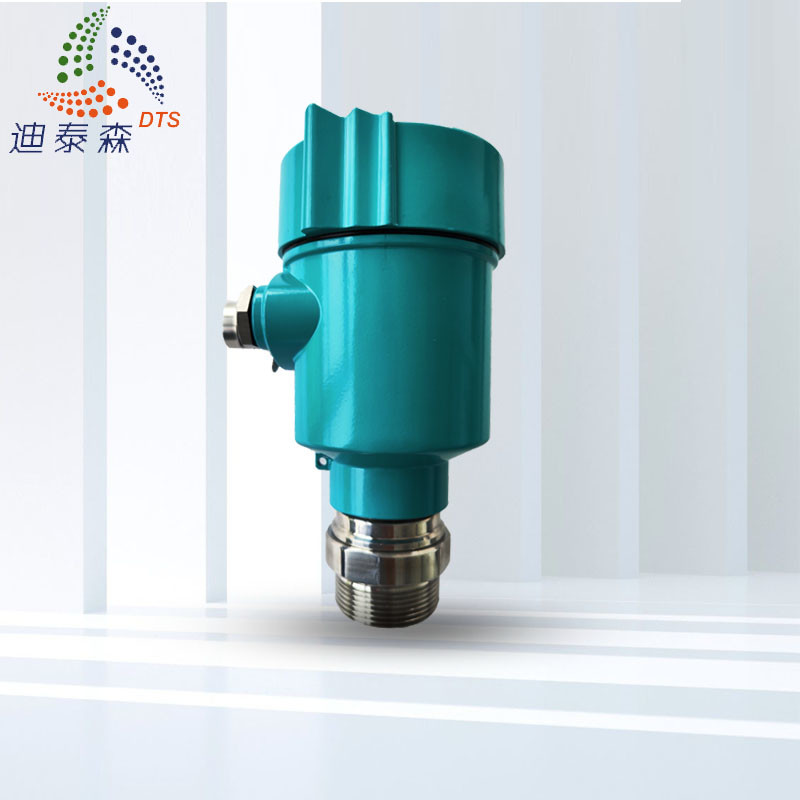

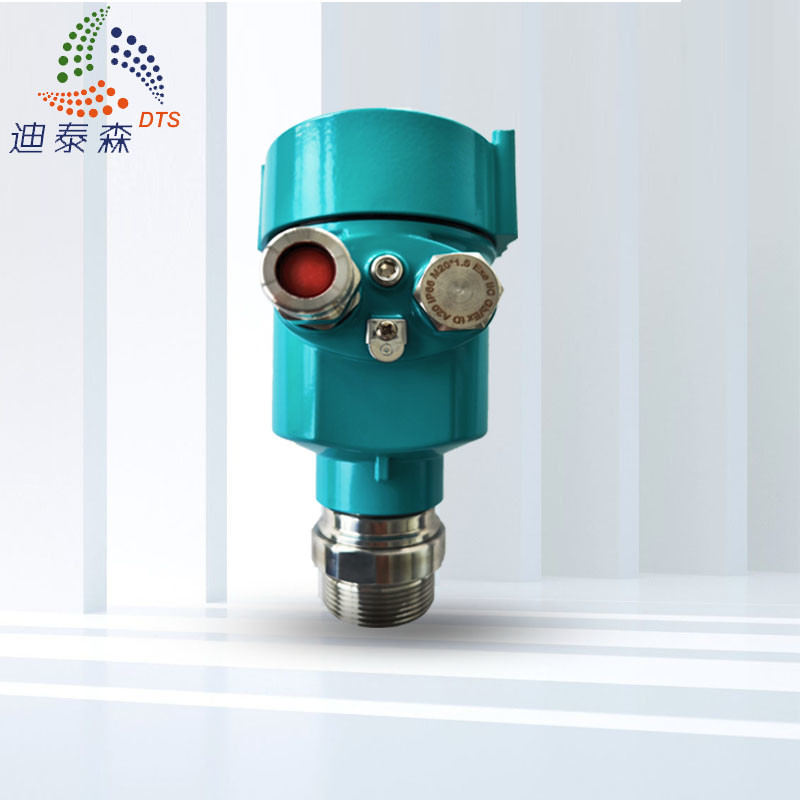

High Sensitivity Radar Level Transducer Switch 80GHz High Precision

  • High Sensitivity Radar Level Transducer Switch 80GHz High Precision
  • High Sensitivity Radar Level Transducer Switch 80GHz High Precision
  • High Sensitivity Radar Level Transducer Switch 80GHz High Precision
Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-82-B
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-82-B Application Liquid
Measuring Range 30m Frequency 80GHz
Accuracy ±2mm Process Temperature -40℃~+120℃
Process Pressure （-0.1~0.1）MPa Process Connection Thread G1½; Flange From DN50
High Light

High Sensitivity Radar Level Transducer

,

Radar Level Transducer 80GHz

,

Radar Level Switch High Precision
Leave a Message
Product Description

Radar Level Sensor High Precision High Sensitivity 80GHz Radar Level Sensor Meter Gauge Transmitter 30m IP68

Product Description:

The Radar Level Sensor can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.With its advanced microwave level sensor technology, the 80G Radar Level Meter is ideal for level measurement in applications such as storage tanks, sewage treatment, and chemical processes, where reliable and accurate level measurement is essential. The device is also well suited for monitoring the levels of corrosive, abrasive, or viscous liquids, and it can be used for slurry or powdery solids as well. The robust design is suitable for use in harsh environments such as petrochemical plants, power plants, oil & gas refineries, and other industrial applications.



High Sensitivity Radar Level Transducer Switch 80GHz High Precision 0



Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
  •
  • High Sensitivity Radar Level Transducer Switch 80GHz High Precision 1
  •

Technical Parameters:

Model DTS-RD-82-B
Application Liquid
Measuring Range 30m
Frequency 80GHz
Accuracy ±2mm
Process Temperature -40℃~+120℃
Process pressure (-0.1~0.1)MPa
Process Connection Thread G1½; Flange from DN50

Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Material Stainless Steel+PTFE
Power Supply Two Wires DC24±6V; Four Wires AC220V


Applications:

This DTS-RD-82-B Radar Level Transmitter is applicable for segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Cosmetics tanks, Alcohol tanks, Water Tanks, Waste water, River, Lake, Reservior  etc, all these could use DTS-RD-82-B to monitor the level.



Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.



High Sensitivity Radar Level Transducer Switch 80GHz High Precision 2
