80GHz Radar Level Meter High Precision High Sensitivity 10m IP68

  • 80GHz Radar Level Meter High Precision High Sensitivity 10m IP68
  • 80GHz Radar Level Meter High Precision High Sensitivity 10m IP68
  • 80GHz Radar Level Meter High Precision High Sensitivity 10m IP68
Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-81-A
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-81-A Application Liquid In Small Container
Measuring Range 10m Frequency 80GHz
Accuracy ±2mm Resolution 1mm
Process Pressure （-0.1~0.1）MPa Process Temperature -40℃~+120℃
Highlight

Radar Level Meter High Precision

,

Radar Level Meter High Sensitivity

,

radar flow meter 10m
Leave a Message
Product Description

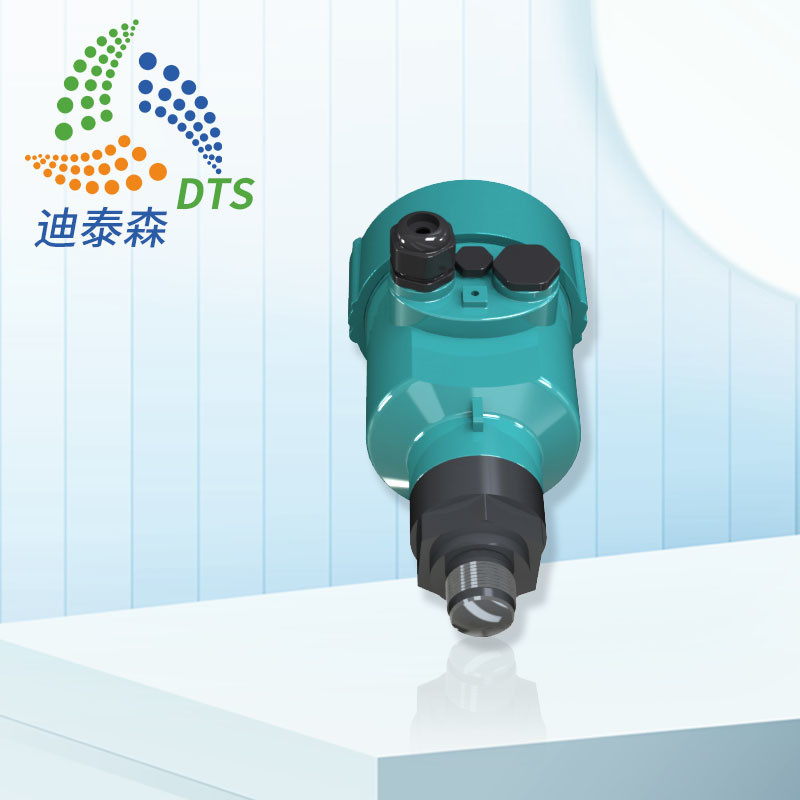

80GHz Radar Level Sensor High Precision High Sensitivity Radar Level Meter Gauge Transmitter 10m IP68

Product Description:

The 80GHz Radar Level Indicator is an ideal choice for reliable and accurate level measurement. It is equipped with a high-sensitivity microwave level sensor, which enables it to measure the level of liquids or solids in a wide range of materials and industries. The device is capable of providing continuous monitoring and can detect level changes in real-time. It is also resistant to vibration, temperature fluctuations, and other environmental factors. The device is simple to install and can be easily integrated into existing control systems.

80GHz Radar Level Meter High Precision High Sensitivity 10m IP68 0

Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
  •
  • 80GHz Radar Level Meter High Precision High Sensitivity 10m IP68 1
  •

Technical Parameters:

Model DTS-RD-81-A
Application Liquid in small container
Measuring Range 10m
Frequency 80GHz
Accuracy ±2mm
Process Temperature -40℃~+120℃
Process pressure (-0.1~0.1)MPa
Process Connection Thread G3/4; Flange from DN30
Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Material Stainless Steel+PTFE
Power Supply Two Wires DC24±6V; Four Wires AC220V


Applications:

This DTS-RD-81-A Radar Level Transmitter is applicable for segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Cosmetics tanks, Alcohol tanks, Water Tanks, Waste water, River, Lake, Reservior  etc, all these could use DTS-RD-81-A to monitor the level.



Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.



80GHz Radar Level Meter High Precision High Sensitivity 10m IP68 2
