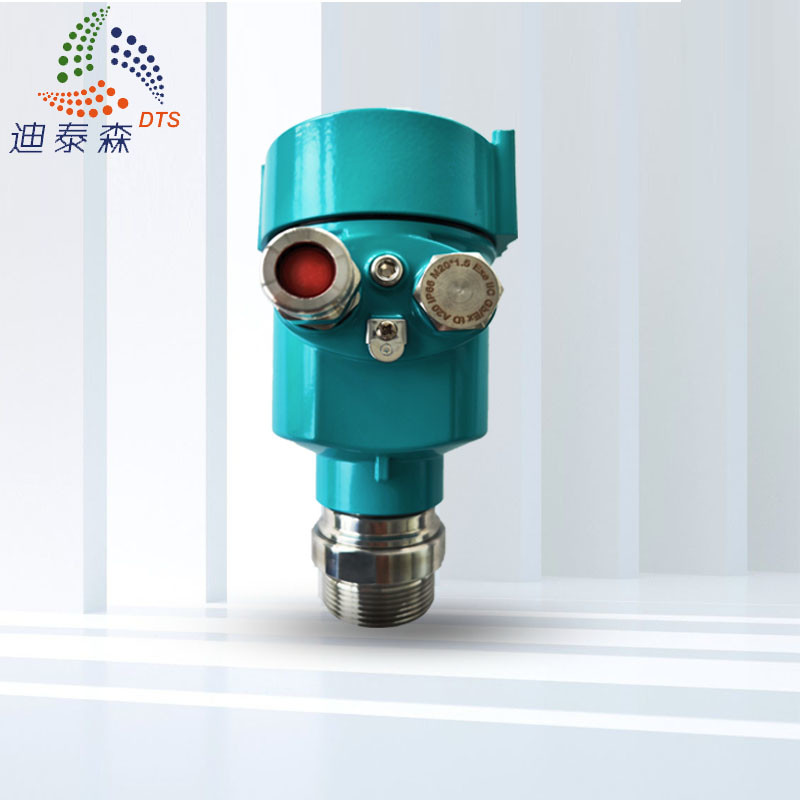

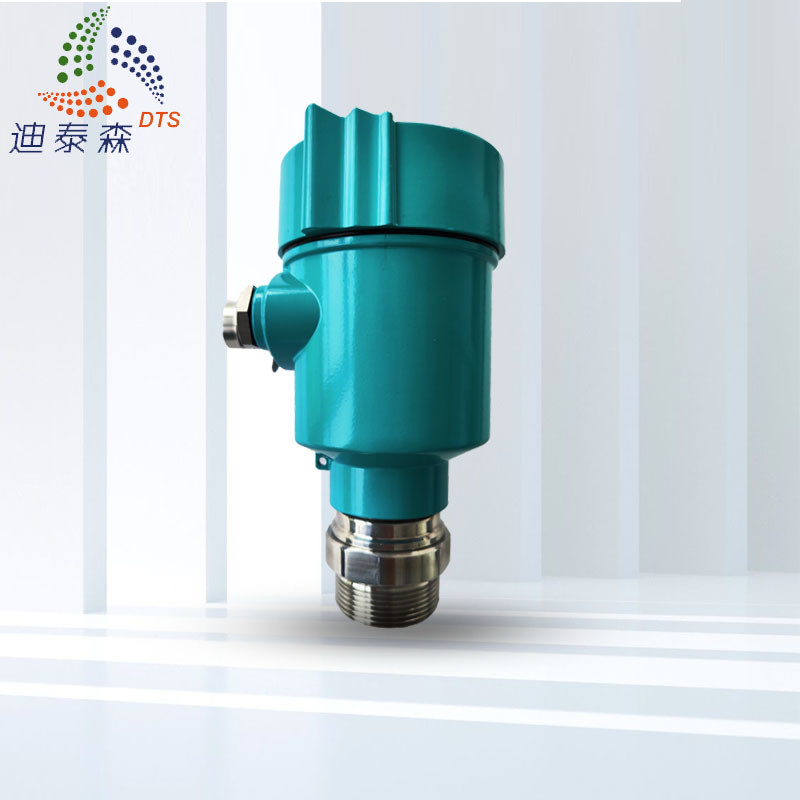

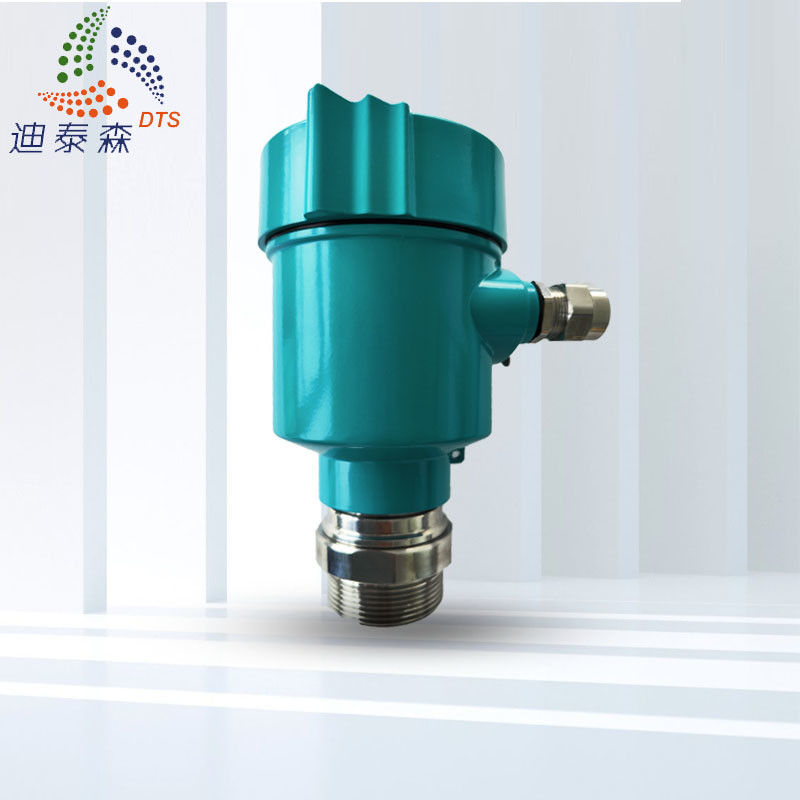

30m Radar Level Instrument 80GHz Radar Tank Gauging System
| Place of Origin | China |
|---|---|
| Brand Name | DTS |
| Certification | CNEX |
| Model Number | DTS-RD-82B |
| Minimum Order Quantity | 1 |
| Packaging Details | Carton |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | Industrial | Customized Support | OEM, ODM |
|---|---|---|---|
| Application | Liquid | Measuring Range | 30m |
| Accuracy | ±2mm | Material | Stainless Steel+PTFE |
| Output Signal | 4…20mA/HART | Process Pressure | -0.1~0.1MPa |
| High Light | 30m Radar Level Instrument,Radar Level Instrument 80GHz,80GHz Radar Tank Gauging System |
||
Product Description
DTS-RD-82B Radar Level Gauge For Liquid With Distance Range 30m 80GHz Radar Level Meter Transmitter Sensor
Product Description:
76-81GHz FM wave FMCW radar product (also called millimeter wave radar), because it uses a millimeter wave band with a higher frequency than Ku-band radar, it can achieve long-distance imaging and multi-spectral imaging in remote target detection and strong smoke and dust environments. It has important applications, and can detect smaller targets than microwave radar and achieve more precise positioning, with higher resolution and stronger confidentiality.
Features:
-
The antenna size of the high frequency level meter is small and easy to install, which enhances its non-contact radar and eliminates any wear and pollution.
Almost all forms of corrosion and foam barely effect this radar, and while water vapor, temperature, and pressure changes in the atmosphere may affect it, the changes are minimal.
In dusty environments, this level meter remains unaffected and continues to use and perform its tasks.
Additionally, the beam angle is significantly small, which makes the radar more capable of concentrating the energy it uses as well as enhancing the echo ability to better avoid interference objects.
Technical Parameters:
| Application | Liquid |
|---|---|
|
Measuring range |
30m |
| Accuracy | ±2mm |
| Frequency | 80GHz |
| Protection Level | IP67 |
| Process Connection | Thread G1½ Flange from DN50 |
| Signal output | 4…20mA/HART; RS485/MODBUS |
| Connection | Bluetooth/NB-iot/4G |
| Power Supply | Two Wires DC24±6V; Four Wires AC220V |
| Material | Stainless Steel+PTFE |
| Process Temperature | -40℃~+120℃ |
| Process Pressure | 0~2.5MPa |
Applications:
The 80G Radar Level Meter is a high-performance level transmitter specifically designed for the measurement of liquids and solids in industrial processes. With its advanced microwave level sensor technology, the 80G Radar Level Meter is ideal for level measurement in applications such as storage tanks, sewage treatment, and chemical processes, where reliable and accurate level measurement is essential. The device is also well suited for monitoring the levels of corrosive, abrasive, or viscous liquids, and it can be used for slurry or powdery solids as well. The robust design is suitable for use in harsh environments such as petrochemical plants, power plants, oil & gas refineries, and other industrial applications.
