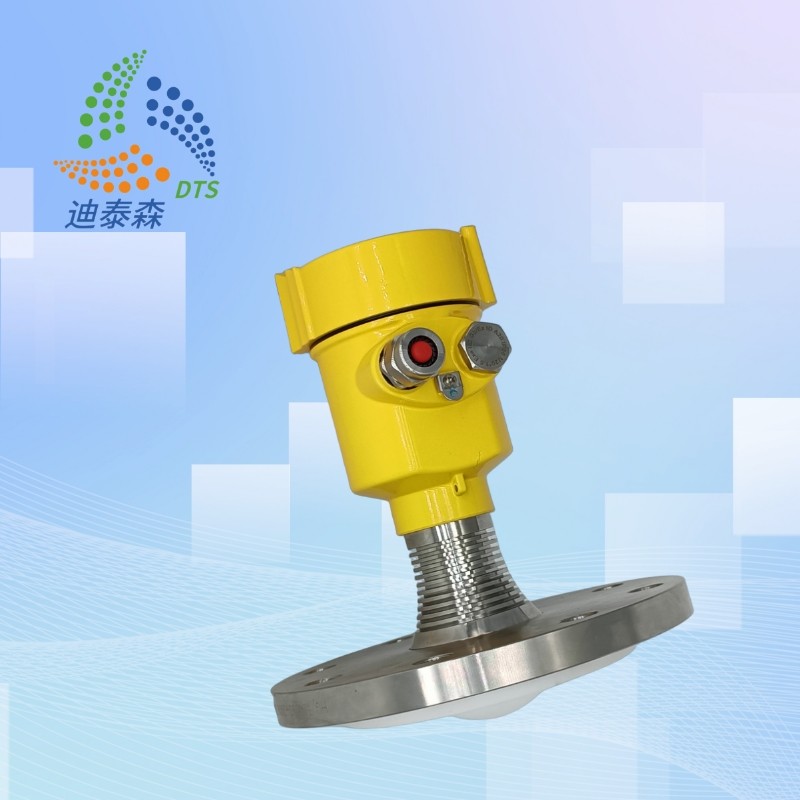

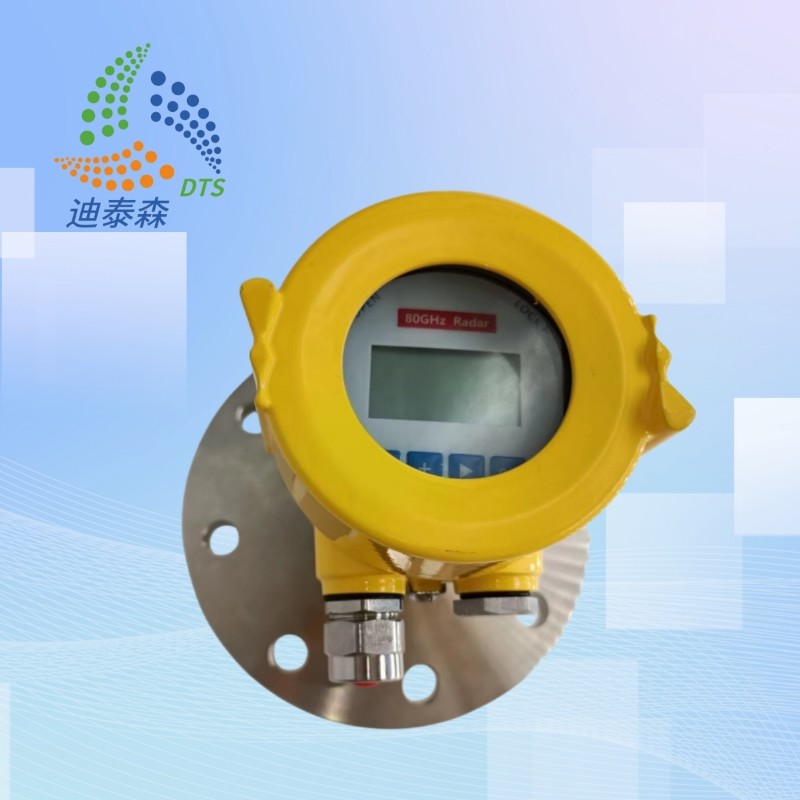

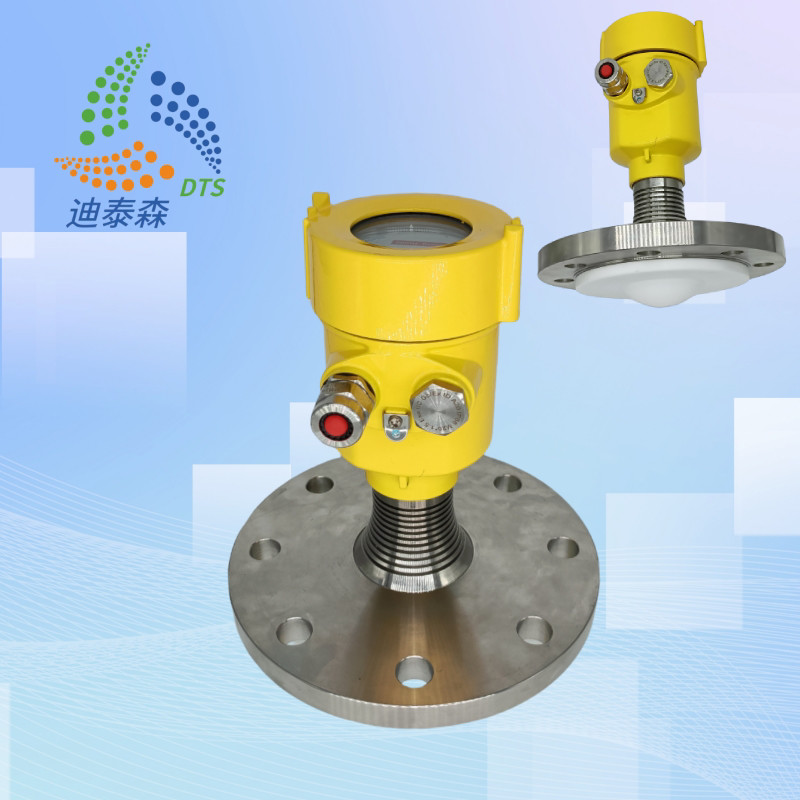

High Resolution Radar Level Instrument Sensor Meter -0.1-2.5 MPa
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xGrade | Industrial | Customized Support | OEM, ODM |
---|---|---|---|
Model | DTS-RD-88 | Application | Solid; Corrosive Liquid With Steam And Foam |
Measuring Range | 120m | Frequency | 80GHz |
Process Temperature | -40~+200℃ Max1200℃ | Process Pressure | (-0.1~2.5)MPa |
High Light | High Resolution Radar Level Instrument,Radar Level Instrument 2.5 MPa,radar level sensor 2.5 MPa |
80GHz High Resolution Radar Level Instrument Sensor Meter of Corrosive Liquid Solid 200℃ (-0.1~2.5)MPa
Product Description:
Continuous level measurement in liquids and solids with free space radar sensors
Radar level measurement with top-down installation of a radar sensor offers perfect application fit in all industries. Non-contact radar with simple commissioning, trouble-free operation saves time and money. For usage in a wide range of applications - be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
Radar measurement: Measuring Principle
Radar level meter works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.
Liquids and solids are commonly measured with this measuring technique.
Features:
- 80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance - Highly chemically resistant materials ensure long service life of the sensors
Technical Parameters:
Model | DTS-RD-88 |
Application | Corrosive Liquid With Steam And Foam |
Measuring Range | 120m |
Frequency | 80GHz |
Accuracy | ±2mm |
Process Temperature | -40℃~+200℃ Customized for max1200℃ |
Process Pressure | (-0.1~2.5)MPa |
Protection Class | IP67 |
Power Supply | Two wires DC24±6V; Four wires AC220V |
Output Signal | 4…20mA/HART |
Connection | Bluetooth/NB-iot/4G |
Process Connection | Flange from DN80 |
Material | Stainless Steel+PTFE |
Applications:
The DTS-RD-88 Non-Contact Radar Level Meter from DTS is a reliable and accurate solution for non-contact level measurement. It is widely used in various industrial applications, such as water treatment, chemical plant, filling systems for pharmaceutical and cosmetic products etc. With its high accuracy, ease of use and reliable performance, the DTS-RD-88 Non-Contact Radar Level Meter is the ideal choice for any non-contact level measurement requirements.
Packing and Shipping:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.
The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
