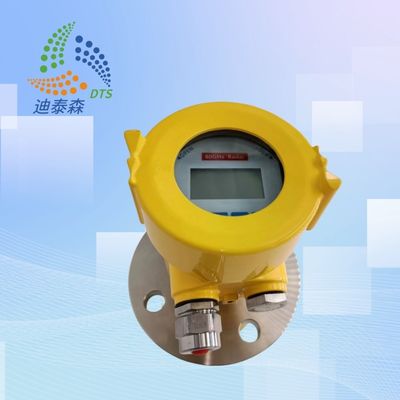

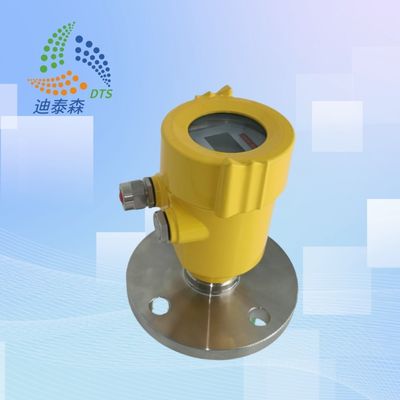

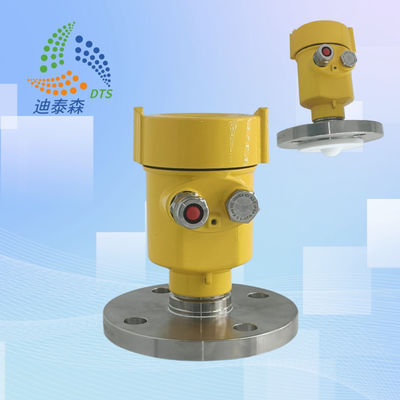

DN50 Flange Radar Level Instrument transmitter For Corrosive Pressure Liquid

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-RD-83
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-83 Application Corrosive And Pressure Liquid
Process Temperature -40℃~+120℃ Process Pressure -0.1~2.5MPa
Process Connection Flange From DN50 Measuring Range 30m
High Light

Radar Level Instrument Pressure Liquid

,

Radar Level Instrument Corrosive Liquid

,

DN50 tank radar level transmitter

Leave a Message
Product Description

80GHz Radar Level Instrument Sensor Meter Transmitter For Corrosive Pressure Liquid IP67 -0.1~2.5MPa

Product Description:

Radar Level Instrument is capable of accurately measuring the maximum distance up to 120 meters.

The maximum measurement accuracy of the radar level measuring instrument is extremely high, yet the device is simple to use which makes it beneficial to many industrial manufacturers. High resolution achievable with the radar measurements helps reduce errors in measurement and also reduce manual inspection time.



Radar measurement: Measuring Principle
Radar level meter works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.



Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance


Technical Parameters:



Model DTS-RD-83-A
Measuring range 30m
Application Corrosive and pressure liquid
Frequency 80GHz
Signal output 4…20mA/HART; RS485/MODBUS

Connection

Bluetooth/NB-iot/4G
Resolution 1mm
Accuracy ±2mm
Material Stainless Steel+PTFE
Protection Level IP67
Process Connection Flange from DN50
Power Supply Two Wires DC24±6V; Four Wires AC220V
Process temperature -40~+120℃
Process pressure (-0.1~2.5)MPa


Applications:

DN50 Flange Radar Level Instrument transmitter For Corrosive Pressure Liquid 0

Packing and Shipping:

DN50 Flange Radar Level Instrument transmitter For Corrosive Pressure Liquid 1
