Product Details
Grade Industrial Customized Support OEM, ODM
Model DTS-RD-82 Application Liquid; Corrosive Liquid
Measuring Range 30m Frequency 80GHz
Material Stainless Steel+PTFE Process Temperature -40℃~+120℃
High Light

IP67 Non Contact Radar Level Transmitter

,

Liquid Non Contact Radar Level Transmitter

,

Radar Liquid Level Sensor 30m

Leave a Message
Product Description

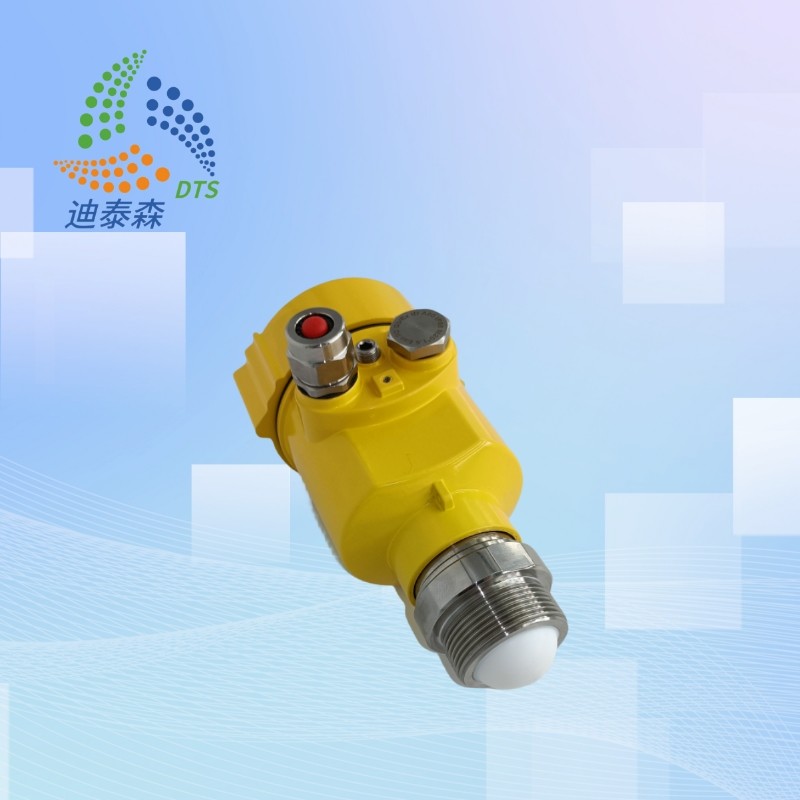

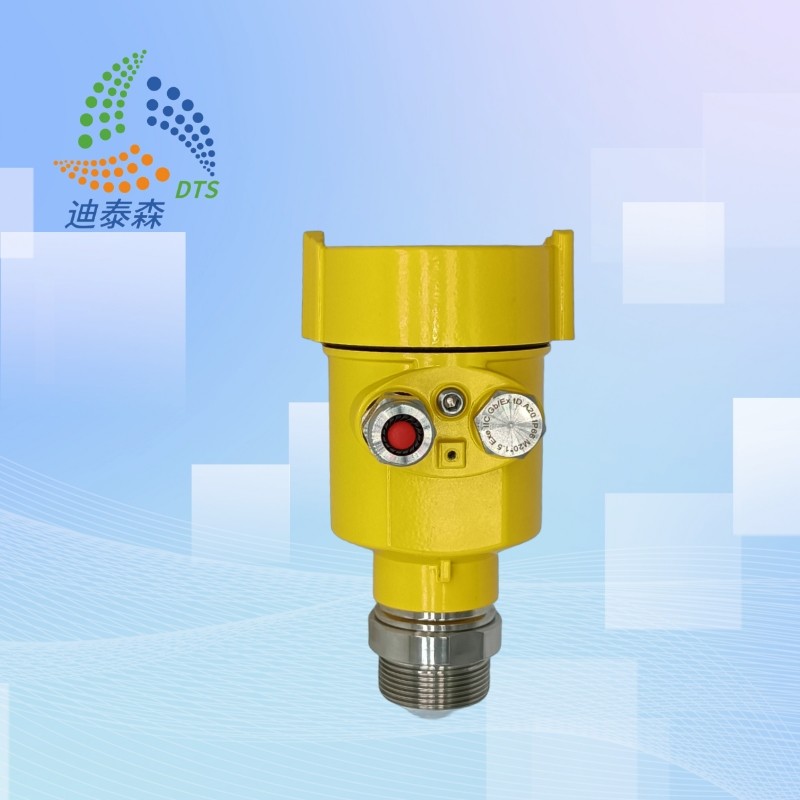

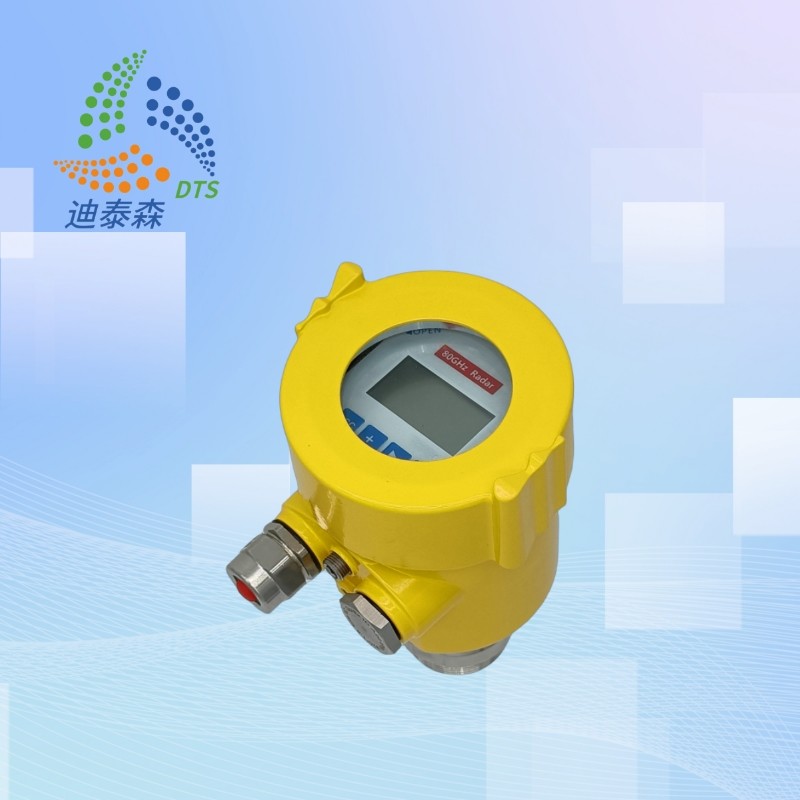

Hot Selling 80GHz Radar Level Instrument Meter Gauge Transmitter Sensor 30m for Corrosive liquid IP67

Product Description:

Radar level measuring instrument is an advanced device for distance measuring. With its optimization on the antenna, it can measure up to 30 meters accurately. Additionally, it comes with powerful microprocessors, allowing the device to analyze signals faster and enables it to be used in complex conditions, such as level of corrossive and pressure liquid. The device is valuable for multiple industries.



Easy-to-install radar level measurement with flanged, threaded, and sanitary process connections for every application. This broad range of devices are highly reliable and precise, featuring innovative operations and design for your industry and your process.



IP67 Non Contact Radar Level Transmitter radar liquid level sensor 30m 0

Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance


Technical Parameters:

Model DTS-RD-82
Measuring range 30m
Application Corrosive liquid; Liquid
Protection Level IP67
Process Connection Thread G1½; Flange DN50
Power Supply Two Wires DC24±6V; Four Wires AC220V
Connection Bluetooth/NB-iot/4G
Frequency 80GHz
Accuracy ±2mm
Process Temperature -40℃~+120℃
Process Pressure -0.1~0.1MPa
Material Stainless Steel+PTFE
Signal output 4…20mA/HART
Digital output RS485/MODBUS


Applications:

IP67 Non Contact Radar Level Transmitter radar liquid level sensor 30m 1



Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.



IP67 Non Contact Radar Level Transmitter radar liquid level sensor 30m 2
