30m Remote Gas Leak Detector Gas Leakage Sensor IP66 Protection

Place of Origin China
Brand Name DTS
Certification CNEX SIL
Model Number DTS-R6
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight 460g Operating Humidity 95%RH (non-condensing)
Protection Level IP66 Response Time Less Than100ms
Sensitivity 5ppm.m Detection Range 0-100000ppm.m
Operating Temperature -25℃ To +50℃ Detection Distance 30m
High Light

30m Gas Leak Detector

,

Remote Gas Leak Detector

,

Gas Leakage Sensor IP66

Leave a Message
Product Description

5ppm.m 30m Remote Methane Gas Leakage Detector Less Than 100ms Response Time

Product Description:

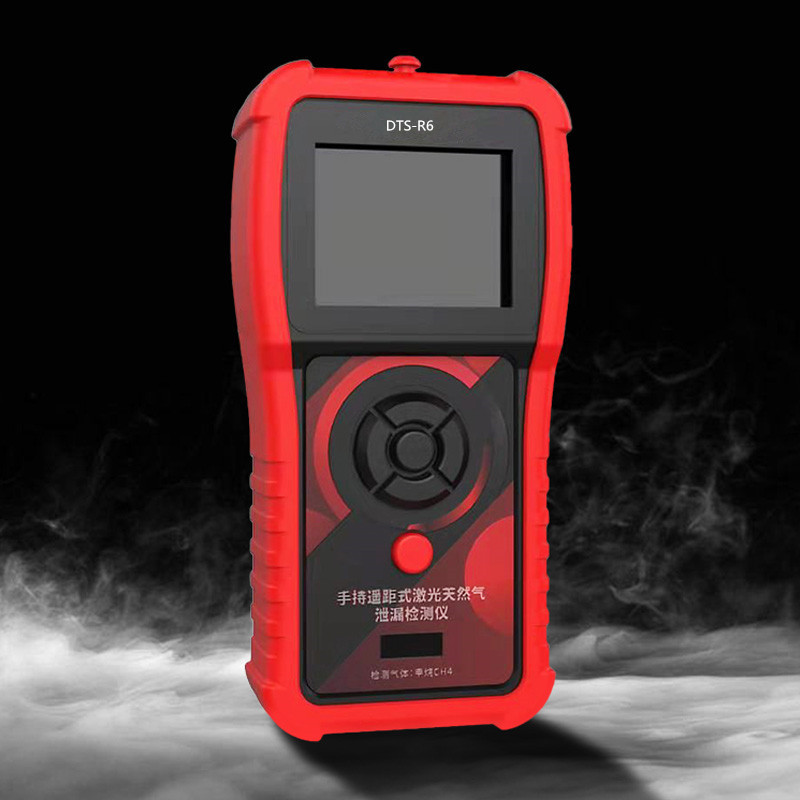

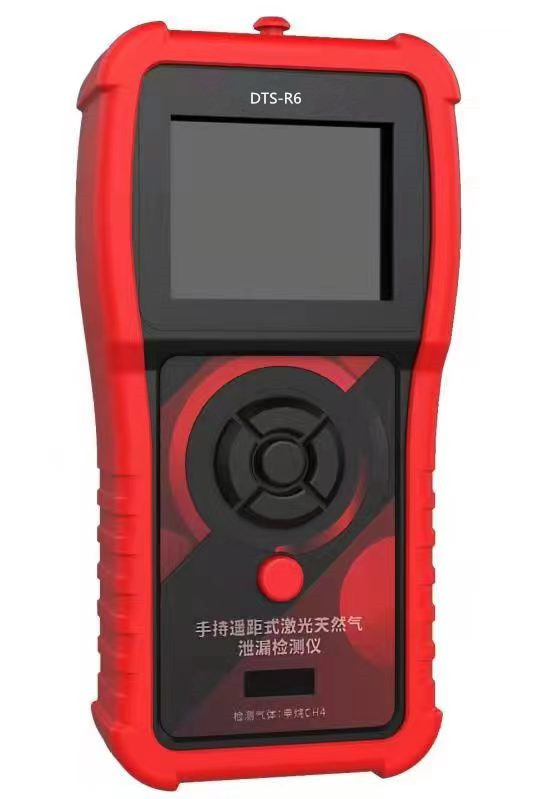

The Remote Methane Gas Leak Detector is a compact handheld detector for the detection of methane gas at a safe distance (0-30m).
Utilising laser technology, methane leaks are located by pointing the laser beam towards the suspected leak, or along the survey line.


This revolutionary technology removes the need to access elevated places, reducing cost and improving the speed of leak detection activities.


DTS-R6 is ideal for use in industrial, commercial and research environments, anywhere that methane could be present and in need of locating or monitoring.

Features:

◇High sensitivity, no other gas interference.
◇ Compact, small, lightweight, easy to operate and maintenance free.
◇It detect methane in long distance, even through glass.
◇Just respond to isolated strong absorption line of methane molecule that avoid to be interfered by other gas ingredients.
◇High sensitivity and very short response time(≤100ms)
◇It can be widely used for detecting leak of natural gas transferring pipe, environment of natural gas station and concentration of coal mine gas.



Technical Parameters:

Parameter Value
Laser Safety Guide laser:Green Class 3R not direct to eyes; Measurement laser:Class 1 safe for eyes
Response Time Less than 100ms
Detection Distance 30m
Operating Humidity 95%RH (non-condensing)
Weight 460g
Protection Level IP66
Detection Range 0-100000ppm.m
Operating Temperature -25℃ To +50℃
Sensitivity 5ppm.m


Applications:
