IP66 Protection electronic Gas Leak Detector 150m 5ppm Maintenance Free

Place of Origin China
Brand Name DTS
Certification CNEX SIL
Model Number DTS-R2
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Customized Support OEM, ODM Brand Name DTS
Protection Level IP66 Detection Range 0-100000ppm.m
Sensitivity 5ppm.m Detection Distance 150m
Response Time Less Than100ms Operating Humidity 95%RH (non-condensing)
Operating Temperature -25℃ To +50℃ Gas Methane
Siza 196*146*66mm Weight 900g
High Light

IP66 Protection Gas Leak Detector

,

Gas Leak Detector 150m

,

electronic leak detection 5ppm

Leave a Message
Product Description

150m 5ppm.m Laser Gas Leak Detector IP66 Protection Level 0-100000ppm.m Detection Range

Product Description:

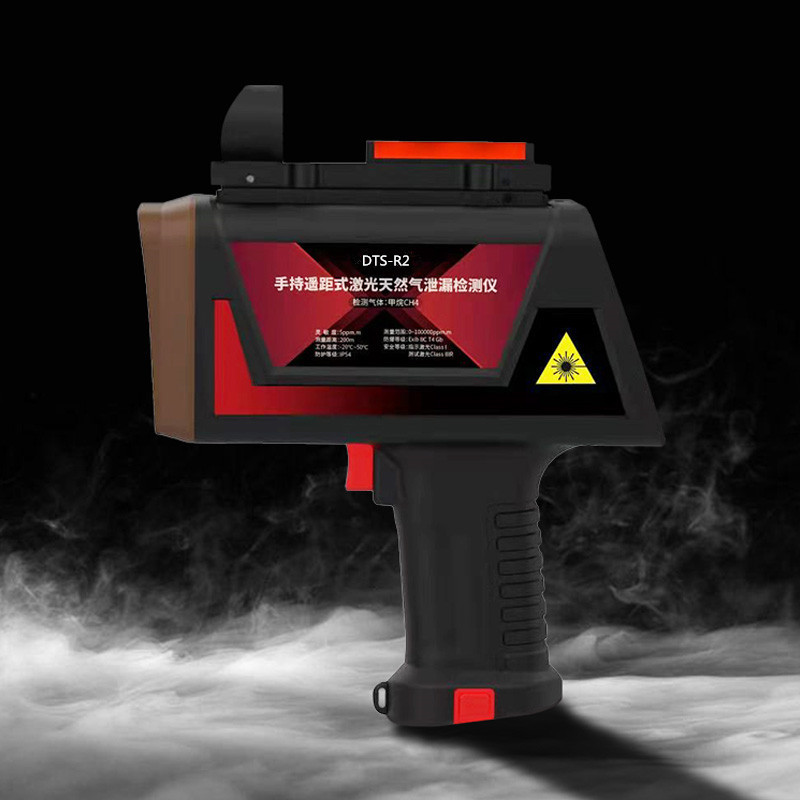

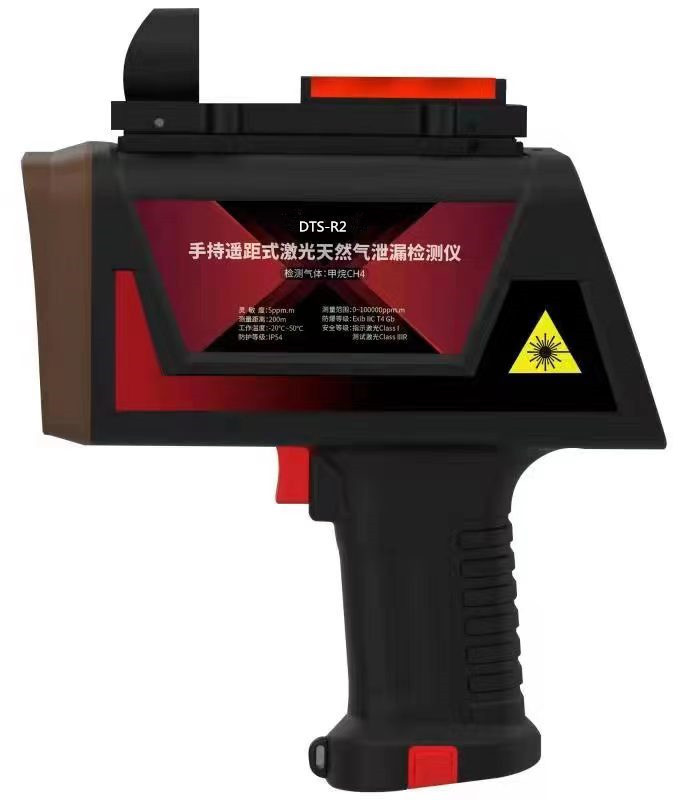

DTS-R2 Gas Leak Detector is hand-held laser remote methane gas leak detector. It is a high-tech advanced technology that detects methane leaking from long distances.It is a new generation of leak detection products, which greatly improves the efficiency and safety of walking inspection, the instrument available, widely recognized worldwide.



It uses tunable laser spectroscopy (TDLS) to quickly detect gas leaks up to 150 meters away.People can effectively detect hard-to-reach or inaccessible areas within safe areas, such as busy roads, dangling pipelines, tall towers, long haul pipelines, unattended rooms and more. Its use is not only effectively improve the efficiency and quality of walking inspection, but also makes easy which can not reach or difficult to reach the place of inspection possible.



Features:

◇Remote measurement and detection, up to 200 meters (using a reflect sheet).
◇Compact, small, lightweight, easy to operate and maintenance free.
◇No specialist or special access equipment required to detect leaks.
◇Just respond to isolated strong absorption line of methane molecule that avoid to be interfered by other gas ingredients.
◇High sensitivity and very short response time(≤100ms)

◇Automatic self-check during start-up ensures consistent performance and reliability every time unit are turned on.

Green laser guide light is highly visible even under strong sunlight simplifying the task of locating leaks.
◇It can be widely used for detecting leak of natural gas transferring pipe, environment of natural gas station and concentration of coal mine gas.



Technical Parameters:

Parameter Value
Laser Safety Guide laser:Green Class 3R not direct to eyes; Measurement laser:Class 1 safe for eyes
Detection Range 0-100,000ppm.m
Response Time Less than 100ms
Operating Humidity 95%RH (non-condensing)
Operating Temperature -25℃ To +50℃
Weight 900g
Protection Level IP66
Sensitivity 5ppm.m
Detection Distance 200m
