CH4 Gas Leak Detector 460g Lightweight natural gas detection meter

Place of Origin China
Brand Name DTS
Certification CNEX SIL
Model Number DTS-R6
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Humidity 95%RH (non-condensing) Operating Temperature -25℃ To +50℃
Sensitivity 5ppm.m Response Time Less Than100ms
Weight 460g Protection Level IP66
Detection Distance 30m Detection Range 0-100000ppm.m
Highlight

Gas Leak Detector 460g Weight

,

Gas Leak Detector Lightweight

,

CH4 Natural Gas Detection Meter

Leave a Message
Product Description

30m Portable Remote Gas Leak Detector 460g Weight 5ppm.m Sensitivity 0-100000ppm.m

Product Description:

Remote Gas Leak Detector is a gas detection equipment specially designed to remotely detect methane, as well as other gas mixtures containing methane (natural gas or similar gases).


It allows to quickly and safely find the point of gas leakage by pointing the laser beam at the studied area.



   Features:

◇High sensitivity, no other gas interference.
◇ Compact, small, lightweight, easy to operate and maintenance free.
◇It detect methane in long distance, even through glass.
◇Just respond to isolated strong absorption line of methane molecule that avoid to be interfered by other gas ingredients.
◇High sensitivity and very short response time(≤100ms)
◇It can be widely used for detecting leak of natural gas transferring pipe, environment of natural gas station and concentration of coal mine gas.





  Technical Parameters:

Parameters Values
Principle TDLAS
Detect Object Methane(CH4)
EX proof safety Exib IIC T4 Gb
Operating Temperature -25℃ To +50℃
Weight 460g
Sensitivity 5ppm.m
Detection Distance 30m
Protection Level IP66
Response Time Less Than100ms
Operating Humidity 95%RH (non-condensing)
Detection Range 0-100000ppm.m



Applications:





Laser Methane Detectors for natural gas leak detection remote monitoring of elevated methane gas concentrations in ambient air.


It is specifically designed for the constant scanning and monitoring of mission-critical areas such as compressor stations, gas tanks, storage facilities, tank farms, gas stations, LNG Terminals, city gates and wellheads.

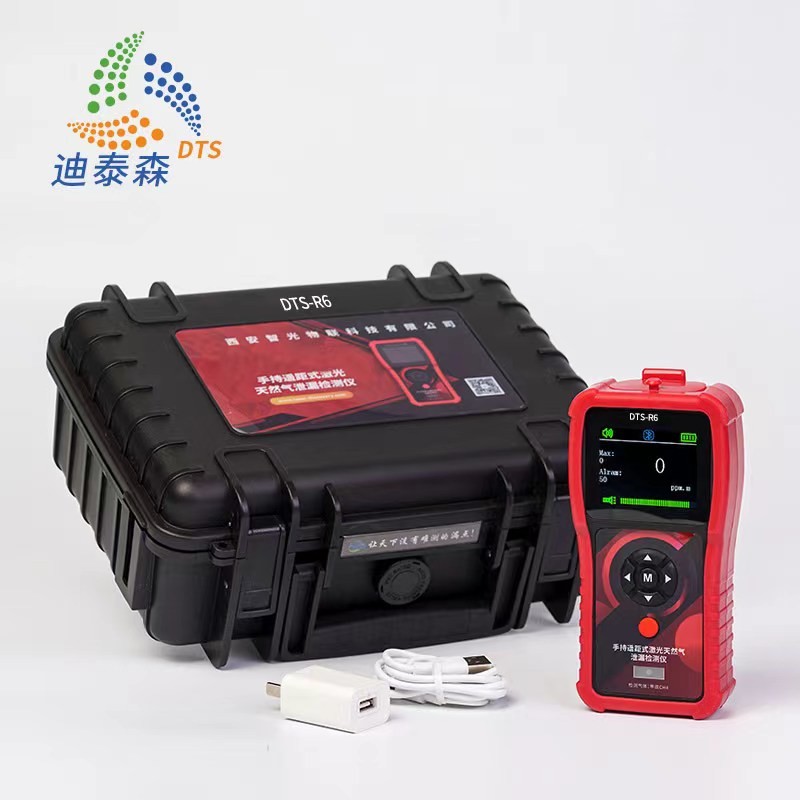

CH4 Gas Leak Detector 460g Lightweight natural gas detection meter 0

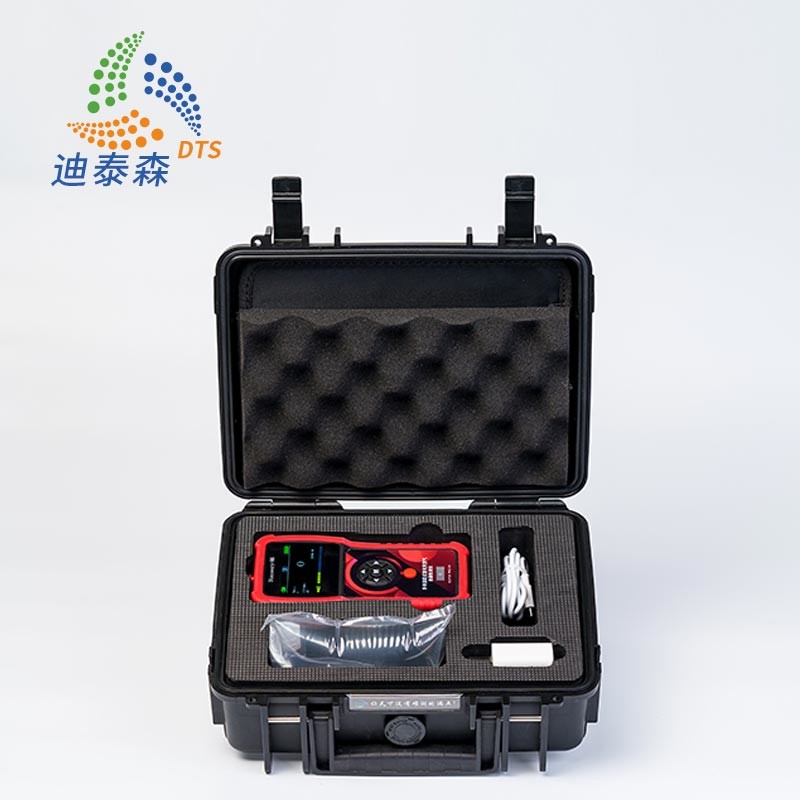

CH4 Gas Leak Detector 460g Lightweight natural gas detection meter 1
