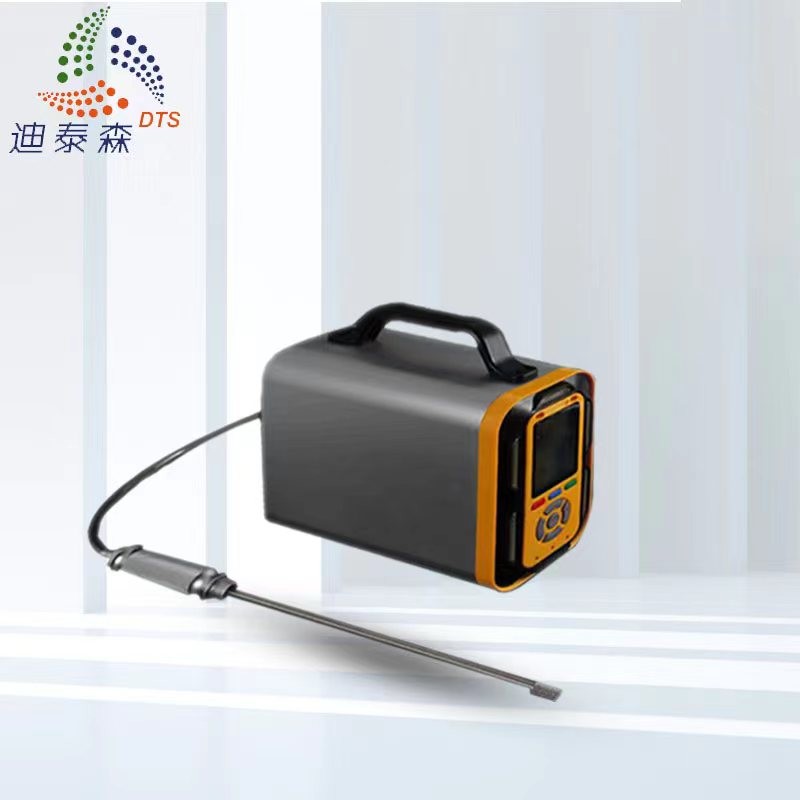

DTS Multi Gas Meter Detector 18 In 1 With LCD Display Screen

Place of Origin China
Brand Name DTS
Certification CNEX
Model Number DTS-M12
Minimum Order Quantity 1
Packaging Details Carton
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Portable Gas Detector Customized Support OEM, ODM,OBM
Type Portable Multi Gas Anlyzer, Built-in Pump Sensor Type Infrared Sensors Imported
Detecting Gas Combustible Gas/H2S/CO/O2/H2S/H2 Response Time T90≤20 Seconds
Repeatability ≤±2% Weight 2.5kg
High Light

DTS Multi Gas Meter

,

multigas meter LCD Display Screen

,

Multi Gas Meter 18 In 1

Leave a Message
Product Description

DTS-M12 Portable Multi Gas Detector 18 In 1 With Lager LCD Display Screen

Product Description:

The Portable Multi Gas Detector is a reliable and efficient gas monitoring device, designed to detect multiple gases, temperature and humidity in various environments.



The product is provided with high measurement precision, stable performance and simple operation and convenient to carry.
It is possible to simultaneously detect 1 ~6 types of gases, up to 18 or more types of gases,





Features:


1. It is possible to simultaneously detect 1 ~ 6 types of gases, which can be expanded to 18 or more, and the types for detection are more than 500 types.
2. There are 7 gas units to display, and the units can be switched freely. Units that can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l.

3. 3.5-inch high-definition color screen, display the information such as real-time concentration.
4. Graphical display, and use the form of curve to reflect the trend of gas concentration changes in a certain period of time.
5. Simultaneously display the concentrations of five types of gases, repeatedly display the concentration of single-channel gases in large font, and display the real-time curve. And it is possible to switch among three display modes.
6. Standard configuration is the data storage capacity for 100, 000 entries; real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored. Large capacity can be customized.
7. It is supported to use the local host to view, and delete data, and upload the data via USB, RS232 interface or infrared communication to the computer for data analysis or printing.
8. 0.4 meter stainless steel sampling handle (with dust filter, not retractable) ,preliminary treatment of the detection gas, so as to protect the equipment.
9. Multiple alarm modes, and multi-directional and three-dimensional indication alarm states.Alarm types include: concentration alarm, under-voltage alarm, and failure alarm.
10. Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.
11. Zero-point automatic tracking; long-term use will not be affected by the zero drift.
12. Data recovery function; in case of mis-operation, it is possible to select partial or full recovery.
13. Mis-operation recognition function: automatic recognition and prevention of the concentration calibration mis-operation, which is possible to avoid the poor performance that may be caused by human factors.
14. 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1 meter)
15. Multiple humidity dust filter· CD-ROM (upper level computer communication software)
16. SD card storage
17. USB disk storage
18. External mini wireless infrared printer
19. Built-in mini printer
20. Wireless data communications: RS232, infrared communication, automatic recognition



Technical Parameters:

Gas detected  1 ~ 6 types of gases which can be expanded to 18
Detection range 0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution 0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
0.1ppm (0 ~ 1000 ppm),
1ppm (0 ~ 10000 ppm or more),
0.01 mg/l (0 ~ 200 mg/l),
0.1% LEL,
0.01%,
0.001% Vol
Response time T90≤20s
Recovery time ≤30s
Working environment Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤0 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
Sample gas temperature -40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
Power supply 3.6VDC, 10000mA high capacity rechargeable polymer battery
Communication interface USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Data storage Standard configuration is the data storage capacity for 100, 000 entries; SD card storage and USB disk storage functions are optional configuration.
Protection level IP66


Applications:

The DTS-M12 Portable Multi Gas Detector is a perfect choice for those who need a reliable and sensitive gas detection solution. It is the perfect solution for a variety of gas detection applications. All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.



It is suitable for detecting the concentrations of gases in the atmosphere environment in the pipeline or confined space; and the purity of the gas leakage and various high concentration single gases with the background gas as nitrogen gas or oxygen gas.

Support and Services:



Portable Multi Gas Detector Technical Support and Service
Technical Support
We provide 24 hours technical support to help you troubleshoot any issues.
We provide online and phone support to answer any technical questions you may have.
We provide detailed product manuals and videos to help you understand the product.

Service
We provide regular maintenance services to ensure the product works properly.
We provide online and phone support to help you install and use the product.
We provide spare parts and accessories to keep the product functioning properly.
