Multi Function laser methane smart 1 Ppm Detector Laser Gas Detector

Place of Origin China
Brand Name DTS
Certification Exib ⅡB T4 Gb
Model Number DTS-P2
Minimum Order Quantity 1
Packaging Details carton box
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detect Object Methane(CH4) Principle TDLAS
Measurement Range 0-10000ppm,100%LEL, 0~100%VOL Sensitivity 1 Ppm
Response Time 0.1s Ex Protection Exib ⅡB T4 Gb
High Light

Multi Function Laser Methane Smart

,

Laser Methane Smart 1 Ppm

,

1 Ppm Detector Laser Gas Detector

Leave a Message
Product Description

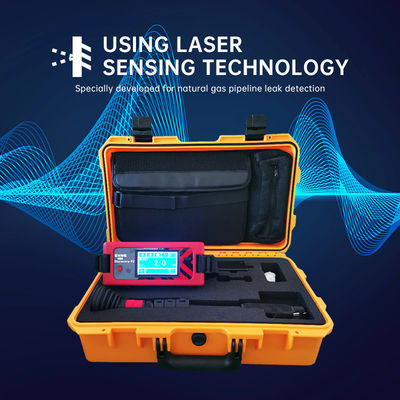

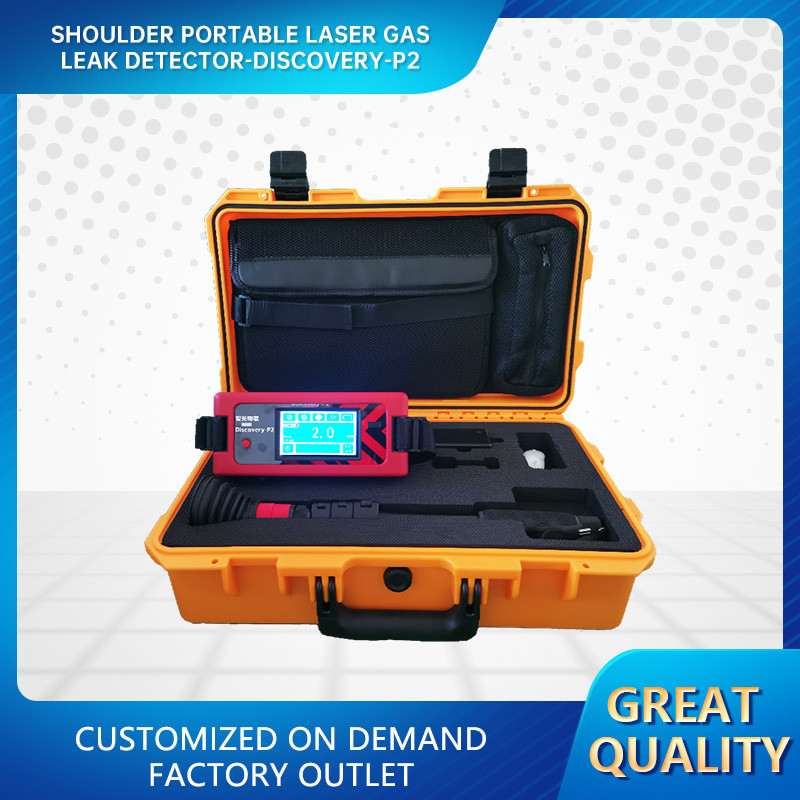

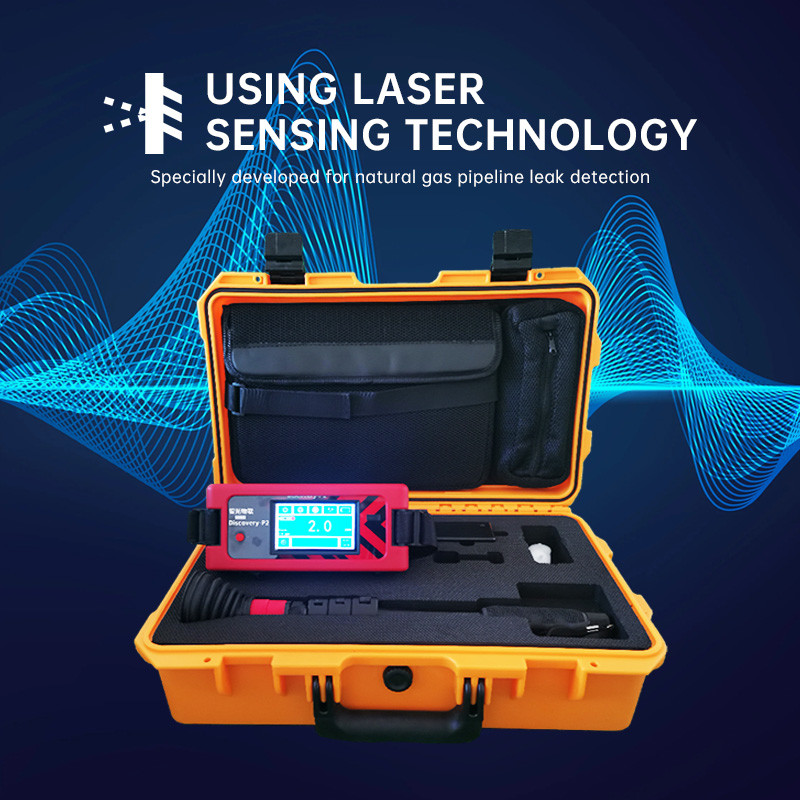

DTS-P2 Multi-function Laser Gas Detector



It is mainly used for leakage detection of natural gas pipeline network, and also for methane leakage in other air. Compared with the traditional gas leakage detection technology, the laser detector has faster response speed, higher sensitivity, longer service life and can be calibrated automatically.
The equipment adopts advanced TDLAS technology. It is mainly used for leakage detection of urban natural gas pipeline network, and can also be used for methane leakage detection in other air. Compared with traditional gas leakage detection products, the equipment adopts technology, which has faster corresponding speed, higher sensitivity, longer service life and can be automatically calibrated. It is applicable to government buried pipeline detection, yard pipeline detection, household pipeline detection, station detection, long-distance pipeline detection, special occasions detection, etc.



Features:





1. Laser sensing technology is specially developed for natural gas pipeline leakage detection
2. 1PPM start test, reaction time < 0.1S
3. Full-range detection: supported by PPM, LEL, VOL

4. Smart Light IOT intelligent cloud patrol platform, it can record the patrol track in real time, automatically add alarm point information and relevant picture text description, generate a detection report with one key, connect to the cloud information system in real time, and dispatch with one key to realize real closed-loop patrol

5. Low maintenance cost, longer service life and automatic calibration
6. Convenient operation, power-on and testable, easy to use and easy to carry
7. The pump suction can be increased, and the module loaded electric vehicle can support electric vehicle inspection

Multi Function laser methane smart 1 Ppm Detector Laser Gas Detector 0Multi Function laser methane smart 1 Ppm Detector Laser Gas Detector 1



Detect Object Methane(CH4)
Principle TDLAS
Measurement range 0-10000ppm,100%LEL, 0~100%VOL
Sensitivity 1 ppm
Response Time 0.1s
Ex Protection Exib ⅡB T4 Gb
Working condition Temp:-25°C + 50°C
Humidity:<90%RH,non-condensing
Power Rechargeable Lithum Battery
Charging time:6 hours
Working time:10 hours
Dimension and weight Dimension:230*108*97
Weight:1600g
Protection class IP66
Sample flow 1.3 L/min
User interface Colour touch display
Alarm CH4 condension alarm
Pump out of working alarm
